Name: PCE Instruments PCE-AM 45 Anemometer 0.3 up to 45 m/s Thermometer
Brand: PCE Instruments
SKU: 2583833
Availability: InStock

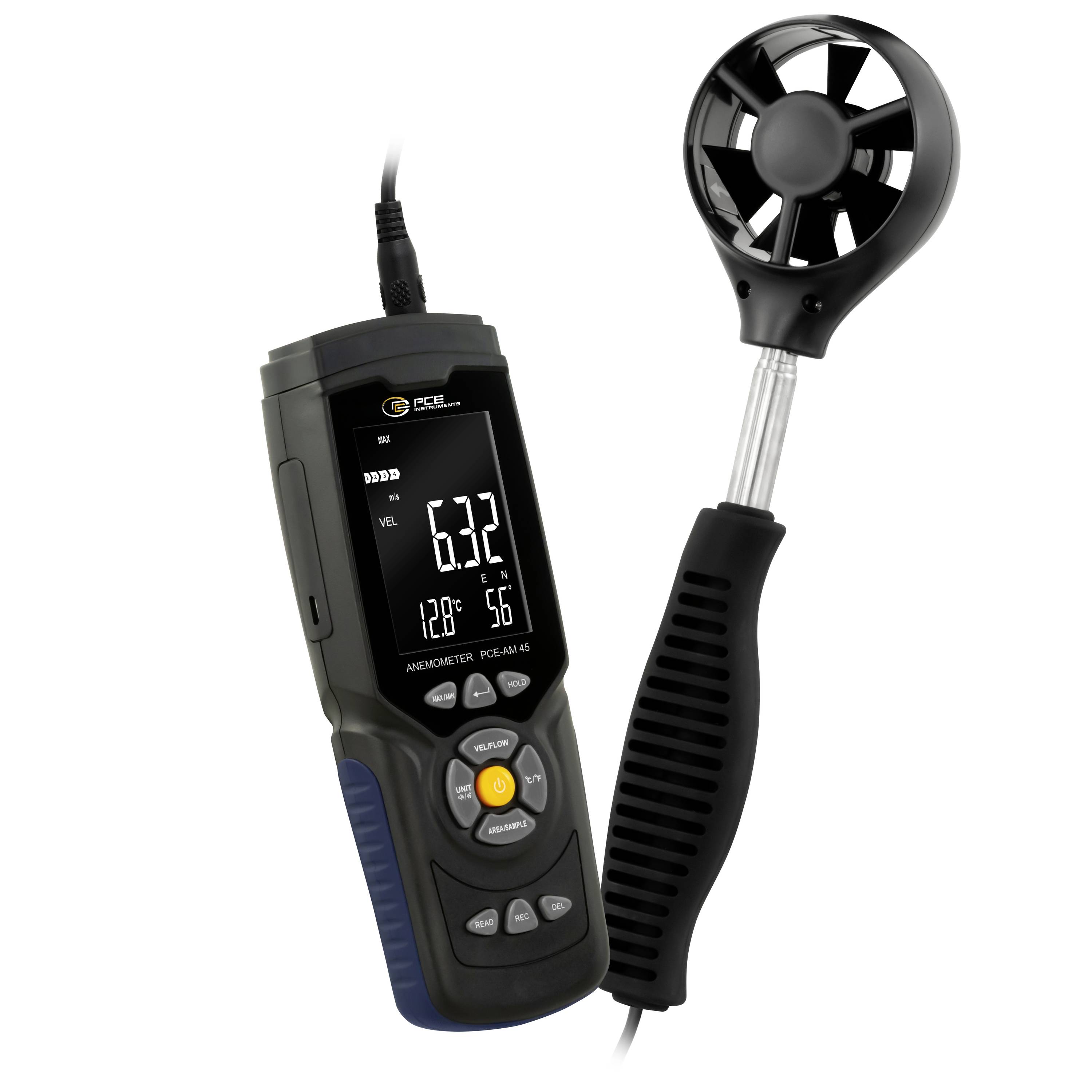

Handheld digital anemometer with a separate fan sensor probe, showing air speed, temperature, and humidity readings on its display.

Digital anemometer display showing wind speed 1282 ft/min, temperature 72.8°F, and direction 119° on a PCE Instruments PCE-AM 45 device.

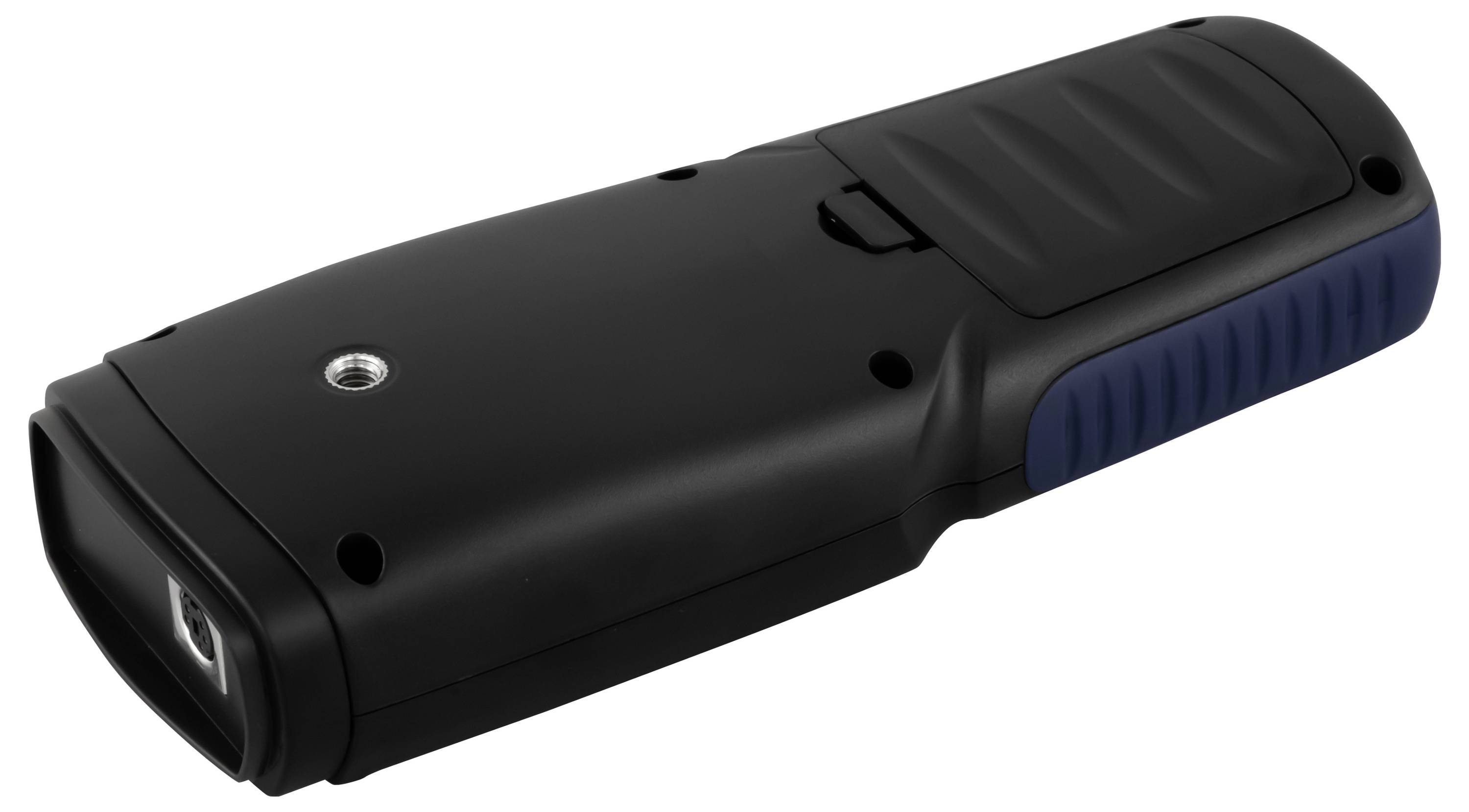

Black handheld electronic device with a blue grip and curved top, shown in perspective on a white background.

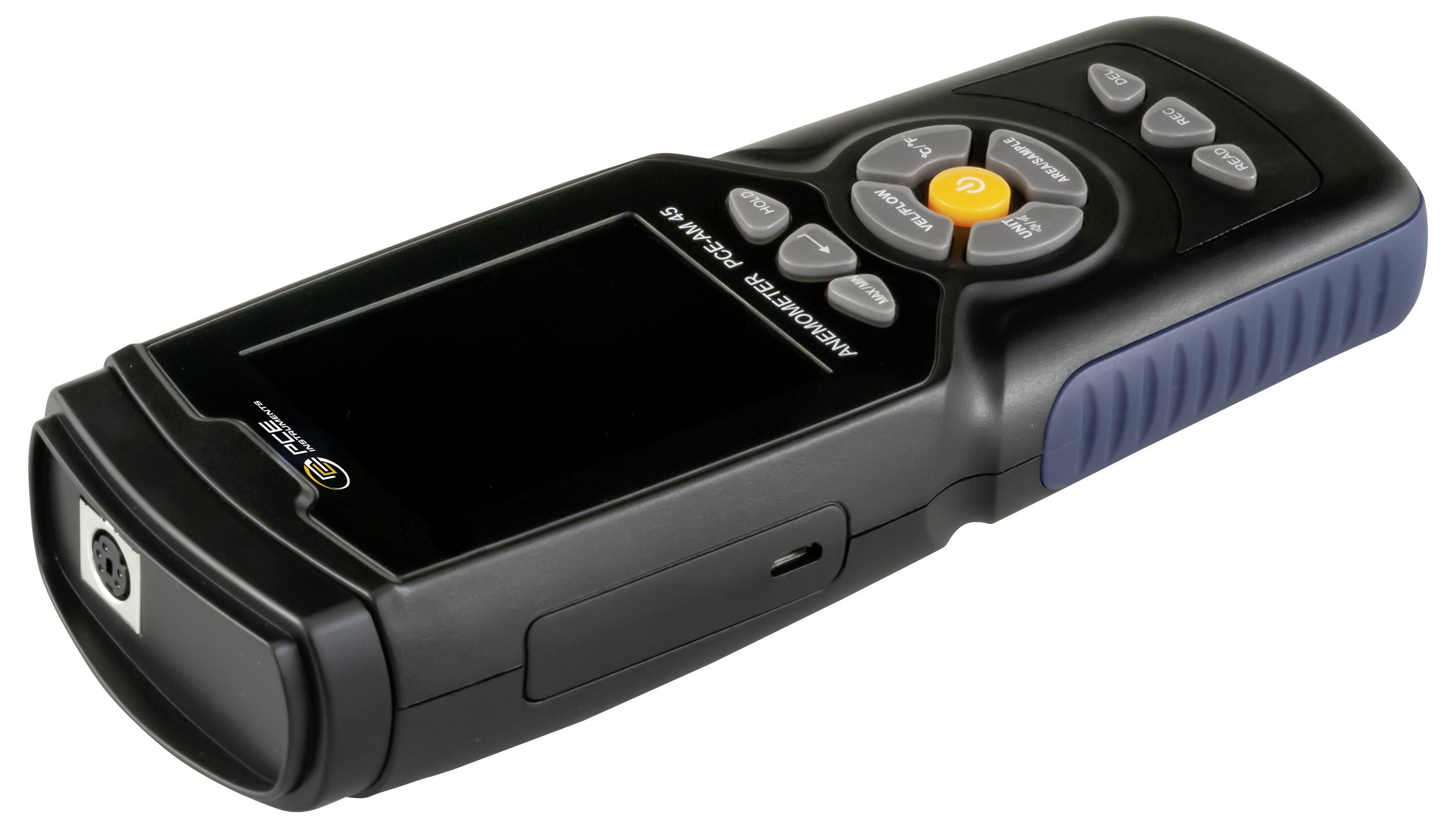

Black handheld electronic device with screen, directional buttons, and orange power button, shown at an angle on a white background.

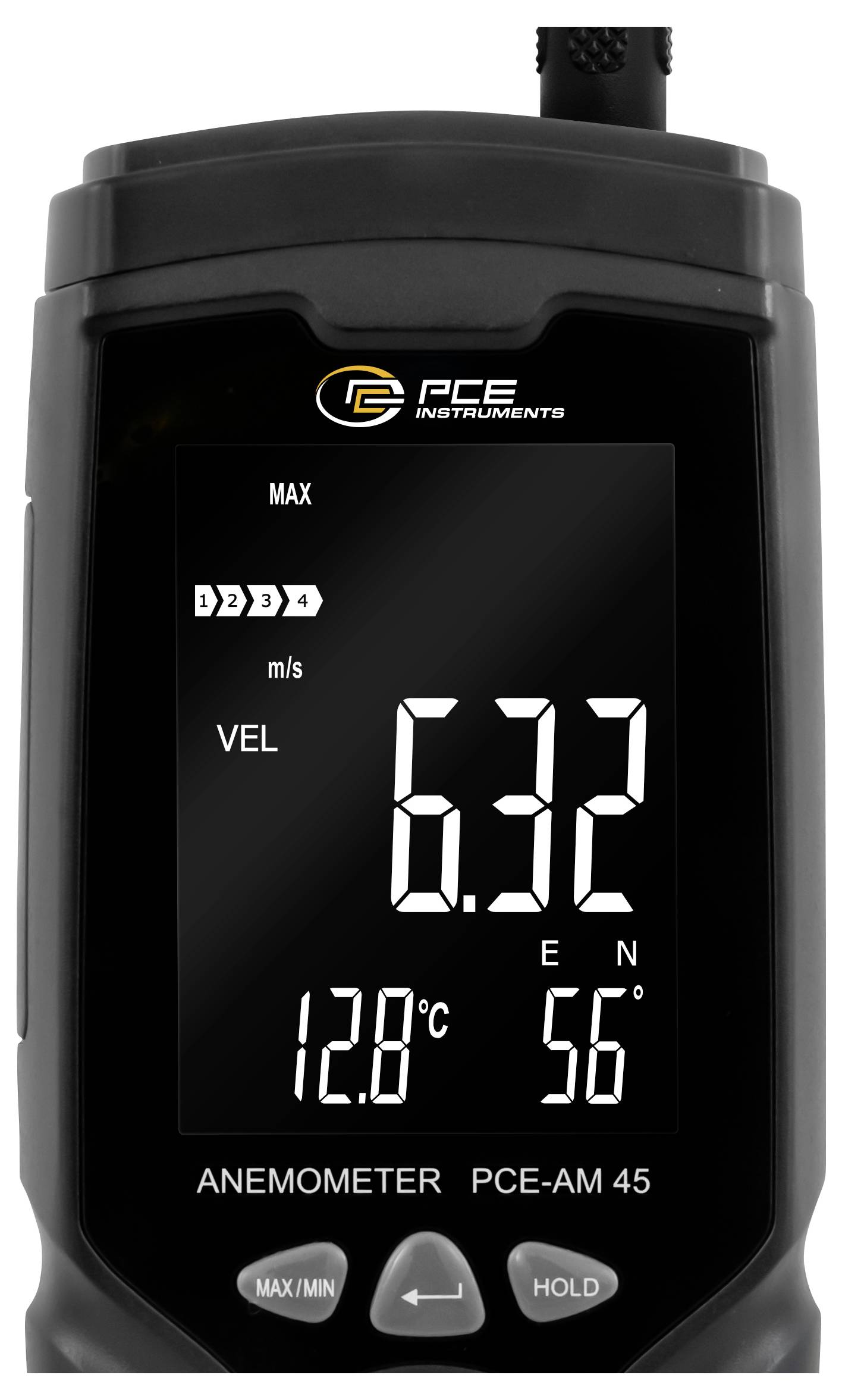

Handheld PCE Instruments anemometer showing max wind speed 6.32 m/s, temperature 12.8°C, and humidity 56%.<br>

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 244.99 / piece)

€ 244.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Anemometer PCE-AM 45

Battery operation for mobile useTelescopic probe with a length of 270 to 540 mmImpeller opening of 65 mmSpeed and volume flow measurementMeasurement range 0.3 to 45.0 m/s.Backlit LCD screen

Technical specifications

Probe length 270 - 540 mmProbe opening: Ø65 mmInterface: Micro USBData memory: 960 measured valuesPower supply: 4 x 1.5 V AAA batteries

Wind speed resolution: 0.01 m/s

Product type: Anemometer

Temperature reading range: 0 up to 45 °C

Wind speed: 0.3-45 m/s, 60-8800 ft/min, 0.6-88 knots, 1-140 km/h, 0.7-100 mph

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 194 x 70 x 35 mm

Features: Thermometer

Accuracy: 3 %

Weight: 400 g

Temperature reading range (max.): 45 °C

Temperature reading range (min.): 0 °C

Air speed reading range (max.): 45 m/s

Air speed reading range (min.): 0.3 m/s

Width: 70 mm

Height: 35 mm

Length: 194 mm

Variants(All information include VAT, plus shipping costs)

Temperature reading range

Wind speed reading range

PCE Instruments PCE-AM 45 Anemometer 0.3 up to 45 m/s Thermometer

Item no:2583833

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

This article

0 up to 45 °C

0.3 up to 45 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer

Item no:3324674

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

-20 up to 50 °C

2.5 up to 105 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

PCE Instruments PCE-AM 40 Anemometer 1 up to 162 km/h Thermometer, USB interface

Item no:3594410

Fast track dispatch on Thu 29 Oct

13 Piece(s)Conrad Electronic

0 up to 45 °C

1 up to 162 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

PCE Instruments PCE-AM 30 Anemometer 0.1 up to 30 m/s Thermometer

Item no:3192913

Unavailable

19 Piece(s)Conrad Electronic

-10 up to 50 °C

0.1 up to 30 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-AM 31 Anemometer 2 up to 90 km/h Thermometer

Item no:3812942

Unavailable

Conrad Electronic

-10 up to 45 °C

2 up to 90 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WS CR Anemometer 0.8 up to 50 m/s

Item no:2813705

Unavailable

Conrad Electronic

-20 up to 80 °C

0.8 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WS US2 Anemometer 0 up to 160 km/h

Item no:3369129

Currently not available

Conrad Electronic

-30 up to 70 °C

0 up to 160 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 815.00^*

PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function

Item no:3369130

Unavailable

Conrad Electronic

-20 up to 70 °C

0 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WSAC 50+ 24 Anemometer 0 up to 50 m/s Datalogger function

Item no:3369131

Unavailable

Conrad Electronic

-20 up to 70 °C

0 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WSAC 50W+ 230 Anemometer 1 up to 50 m/s Datalogger function

Item no:3594546

Unavailable

Conrad Electronic

-20 up to 70 °C

1 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2583833 PCE Instruments PCE-AM 45 Anemometer 0.3 up to 45 m/s Thermometer

User & Safety Instructions

User & Safety Instructions 2583833 PCE Instruments PCE-AM 45 Anemometer 0.3 up to 45 m/s Thermometer

Description

Anemometer with Beaufort scale, wind direction display, measuring range 0.3 to 45.0 m/s, data storage for 960 measured values, software for transferring the measured values, speed and volume flow measurement, optionally with ISO calibration certificate. The anemometer determines the wind speed via a impeller with a diameter of 65 mm. The anemometer can reliably determine the speed in a measurement range from 0.3 to 45.0 m/s. In addition to the speed measurement for the anemometer, a volume flow measurement can also be performed. A Beaufort scale is stored next to the normal measured value display for the anemometer. The Beaufort scale on the anemometer indicates the degree of wind strength directly. Depending on the orientation of the impeller, the wind direction can also be determined with the anemometer. This is made possible by the gyroscope installed in the flow sensor of the anemometer. At the same time, the current ambient temperature between 0 and 45 °C is displayed on the anemometer. For optimum alignment, the telescopic arm can be extended from the anemometer to up to 270 to 540 mm. With the integrated data memory of 960 measured values, individual measured values can be stored on the anemometer by pressing a button. All measured values can then be transferred to a PC via the micro USB data interface. The software in the PCE download portal can be used to analyze and further process the values measured by the anemometer. Live measurement on the PC is also possible with the anemometer and the software.
