PCE Instruments PCE-DBC 650 Calibrator Temperature

Regular calibration of temperature sensors is critical because they are exposed to a variety of mechanical, thermal and chemical stresses that can cause drift over time. This drift can cause the measured temperature to deviate from the actual temperature. Regular calibration can be used to determine the differences between actual and measured temperature, which makes the specific drift behavior visible. Dry block calibrators are effective instruments for testing and calibration of various temperature measuring devices and temperature sensors.

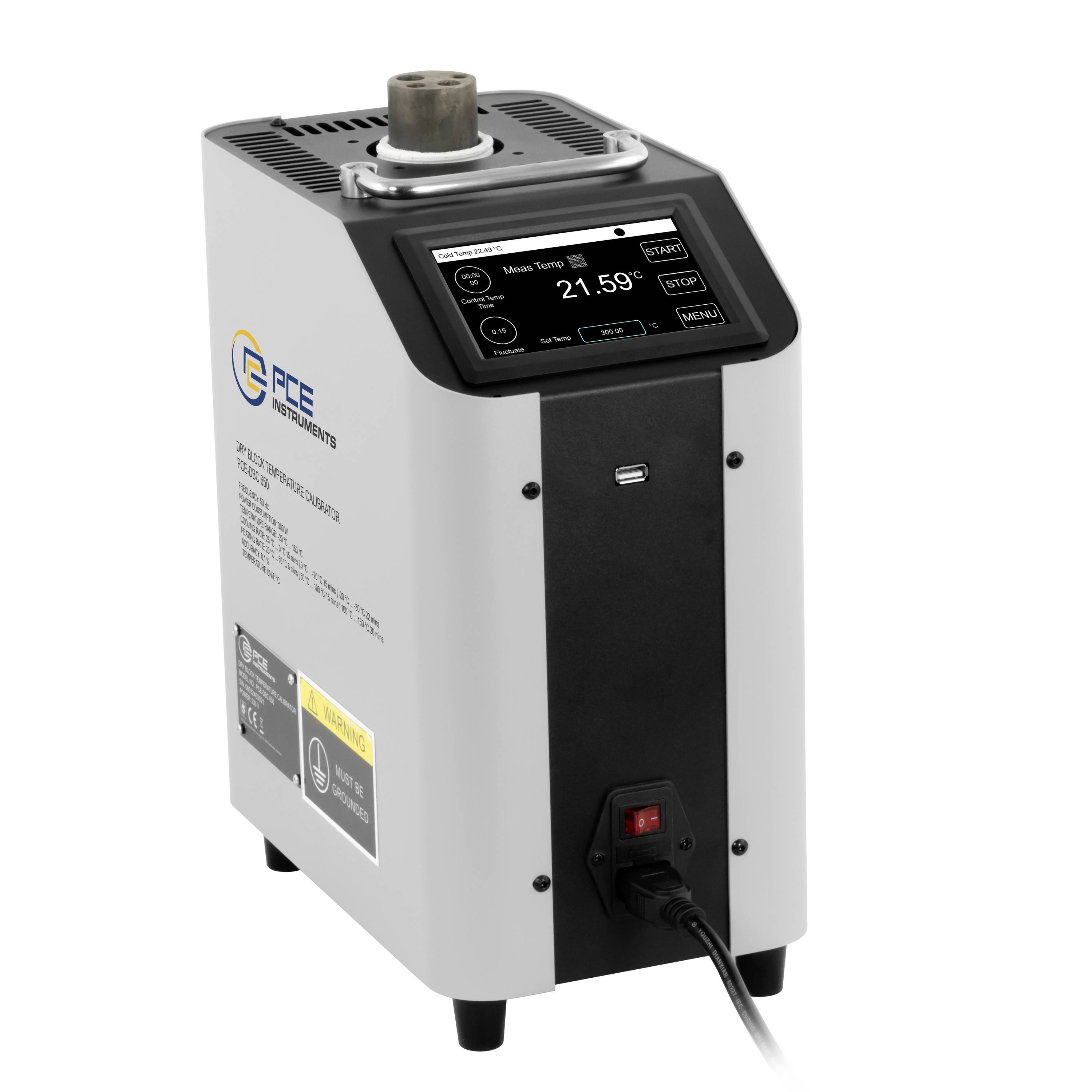

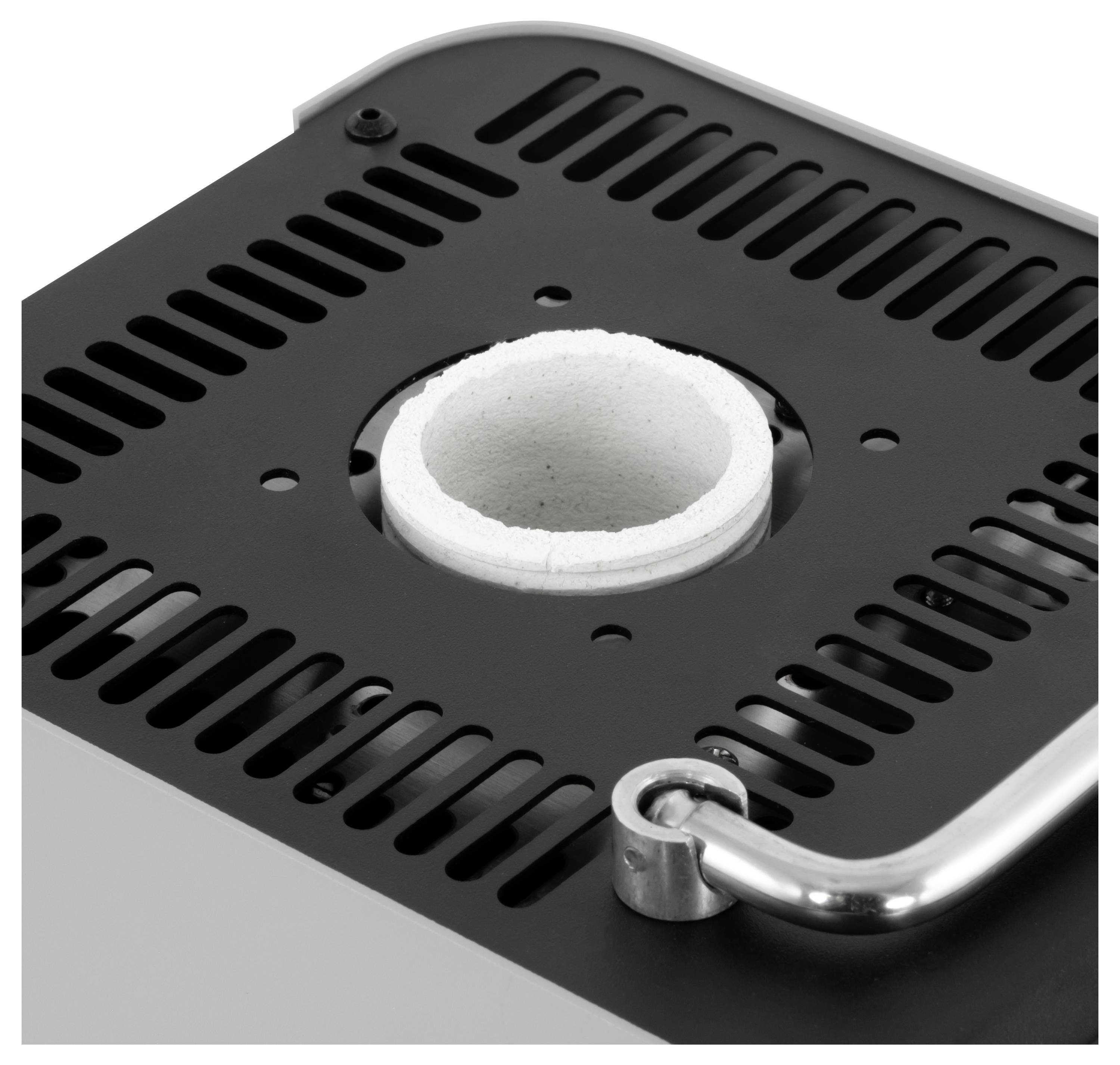

The block calibrator is intended for calibrating temperature sensors such as Pt100, Pt1000 and many other temperature sensors. The dry block function offers a practical solution for calibration of temperature sensors in laboratory and field use. By using the correct "transition sleeve", an optimal thermal coupling is ensured between the dry block and the test specimen to be calibrated.

The versatility of the calibration insert enables a wide range of straight temperature sensors with different lengths and diameters to be calibrated with the block calibrator. This significantly increases the flexibility and applicability of the drying block. Another advantage of the dry block function is that it covers the entire temperature range without having to change the calibration medium. This significantly reduces the user's effort, as no special precautions need to be taken for different viscosities, flash points or gases.

On the whole, the block calibrator offers an efficient and user-friendly method for calibration of temperature sensors, both in the laboratory and in field applications.
