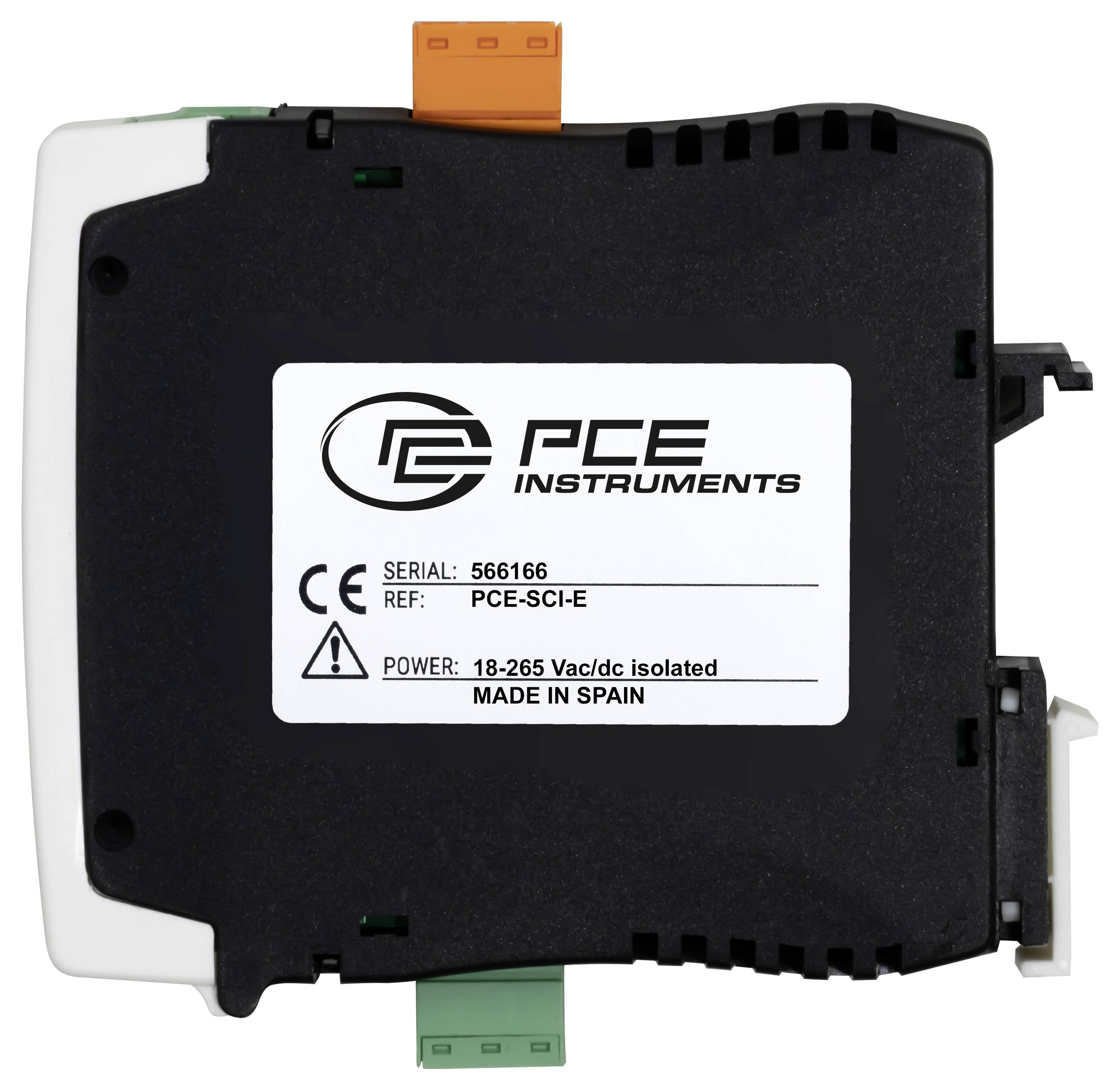

PCE Instruments PCE-SCI-E DIN-rail mounted tester

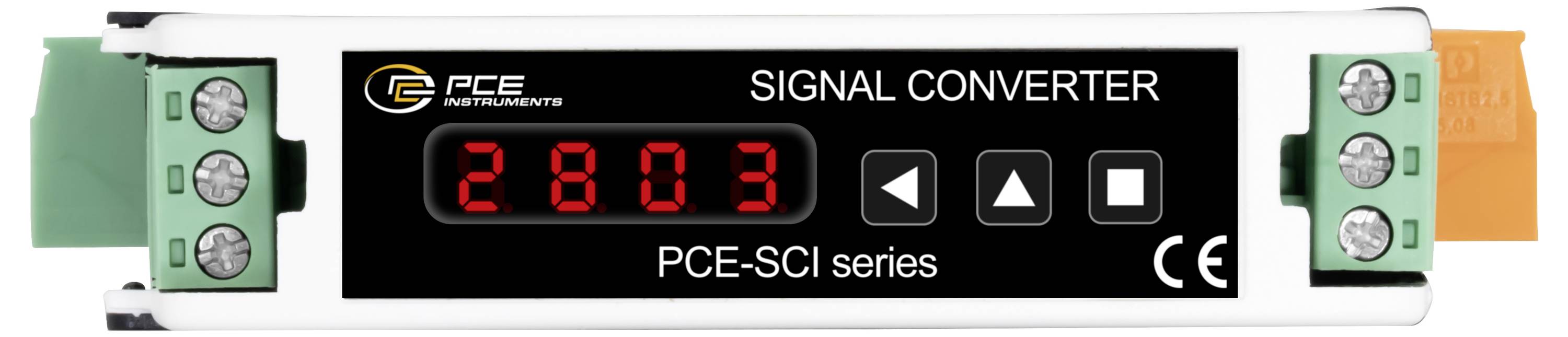

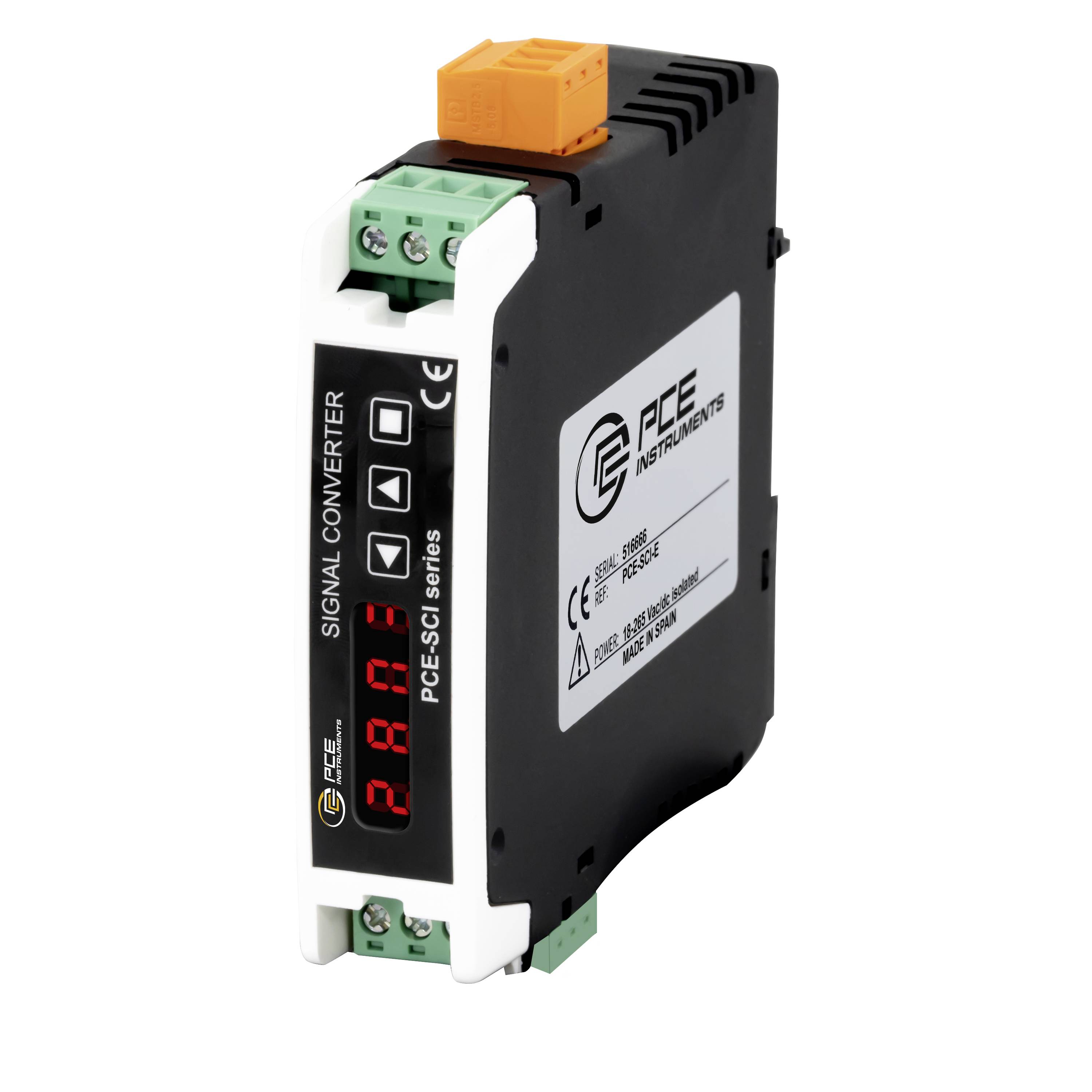

Signal converter for DIN rail mounting, measuring range 0 - 600 V AC/DC, output signals in 4 - 20 mA and 0 - 10 V / configurable via keypad, current measuring range 0 - 5 A AC/DC/frequency measurement. The signal converter has an adjustable measurement range of 0 - 600 V AC/DC and can therefore measure a wide range of voltages. For example, it is possible to connect the signal converter to the supply line in order to monitor the applied voltage. In addition to voltage measurement, the signal converter can also measure the current directly with a maximum adjustable measurement range of 0 - 5 A AC/DC. To extend the current range, a current transformer can be connected to the signal converter. The measured value is then converted by the signal converter into a standardized analogueue 4 - 20 mA or 0 - 10 V signal. Thus, the signal converter is the ideal extension of a process control. Since the input and output range can be set identically, the signal converter can be used for galvanic decoupling. The signal converter is configured directly via the keypad. Thus, no additional cable or software is required for the settings of the signal converter. The signal wall is mounted on a DIN rail. The signal converter is operated with a voltage of 18 - 265 V AC/DC at a frequency of 45 - 65 Hz.
