Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-354-SC43

Leq value calculation
Peak measurement
Frequency weighting A and C.
Measuring range 30 ... 130 dB
Max-Hold function
Memory for 99 measurements
Display with background lighting.
Incl. Class II sound calibrator

Technical specifications

Sound level
Measuring range 30 dB ... 130 dB
Resolution 0.1 dB
Accuracy ±1.5 dB of MW.
General Technical Data
Measurement functions Lpeak, Leq
Time evaluation slow (1 sec.), fast (125 ms)
Frequency 20 ... 12,500 Hz
Frequency weighting A, C
Display type LCD
Display update rate 3 x per second
Memory capacity: 99 values
Save when pressing a button
Microphone type Electret capacitor
Automatically switches off approx. 10 min.
Standard(s) Class 2
Power supply battery
Battery type AAA Battery (1.5V)
Menu language English
Protection class: IP20
Operating conditions 0 ... 50 °C,10 ... 95 % r.F.
Dimensions (L x W x H) 177 x 60 x 35 mm
Weight 110 g.

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 177 x 60 x 60 mm

Display: LCD

Min. frequency: 20 Hz

Frequency range: 20 Hz (min)

dB (A) accuracy: 1.5 dB

dB (C) accuracy: 1.5 dB

Weight: 110 g

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 30 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 30 dB

Width: 60 mm

Height: 60 mm

Length: 177 mm

Features: Data logger

Documents & Downloads

Datasheet

Datasheet 3324673 PCE Instruments Sound level meter Data logger PCE-354-SC43 30 - 130 dB 20 Hz (min)

User & Safety Instructions

User & Safety Instructions 3324673 PCE Instruments Sound level meter Data logger PCE-354-SC43 30 - 130 dB 20 Hz (min)

Description

The sound level meter is a small handheld device with a lot of functions like the peak-measurement, leq-value calculation and adjustable measurement ranges. In addition, the MAX function allows the sound level meter to freeze the largest measurement value, so that you can really judge whether a limit has been exceeded. The special feature of this sound level meter is the leq value, which indicates the equivalent permanent sound level after the entry of a time, i.e. the temporal average value of all sound events within a observation period.

The memory function offers 99 places which can only be accessed via the sound level meter. The backlit display makes reading easy, and after 10 minutes without operation the sound level meter turns off automatically.
You can see by a battery symbol timely when a change of the three AAA-batteries is necessary. The sound level meter of the class 2 is used in the workplace, e.g. employee noise protection or simply for a quick measurement of ambient noise.

This text is machine translated.

Features

Leq value calculation
Frequency weighting A and C.
Max-Hold function
Incl. memory

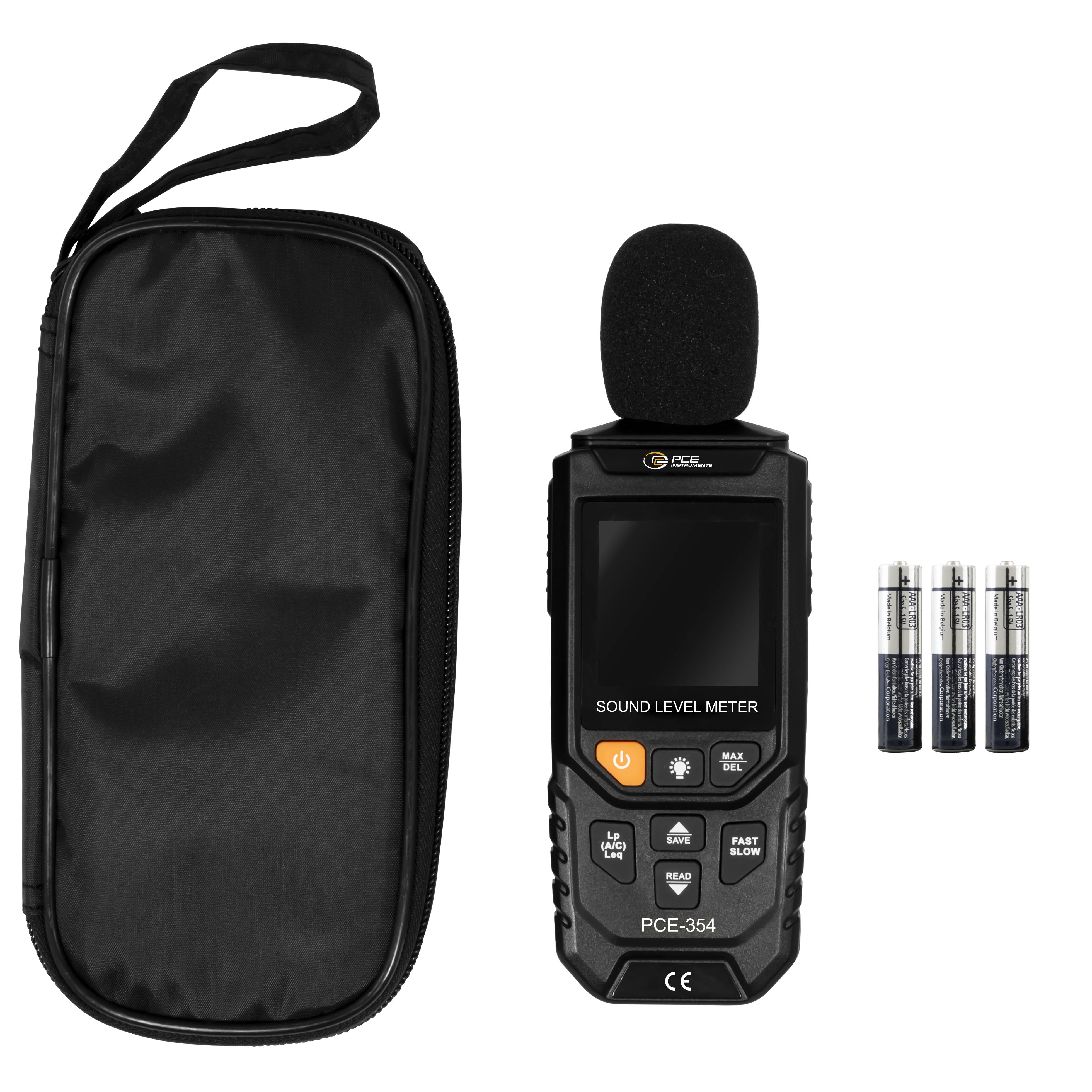

Scope of delivery

1 x sound level meter PCE-354-SC43
3 x size AAA batteries
1x user manual
1 x appliance bag

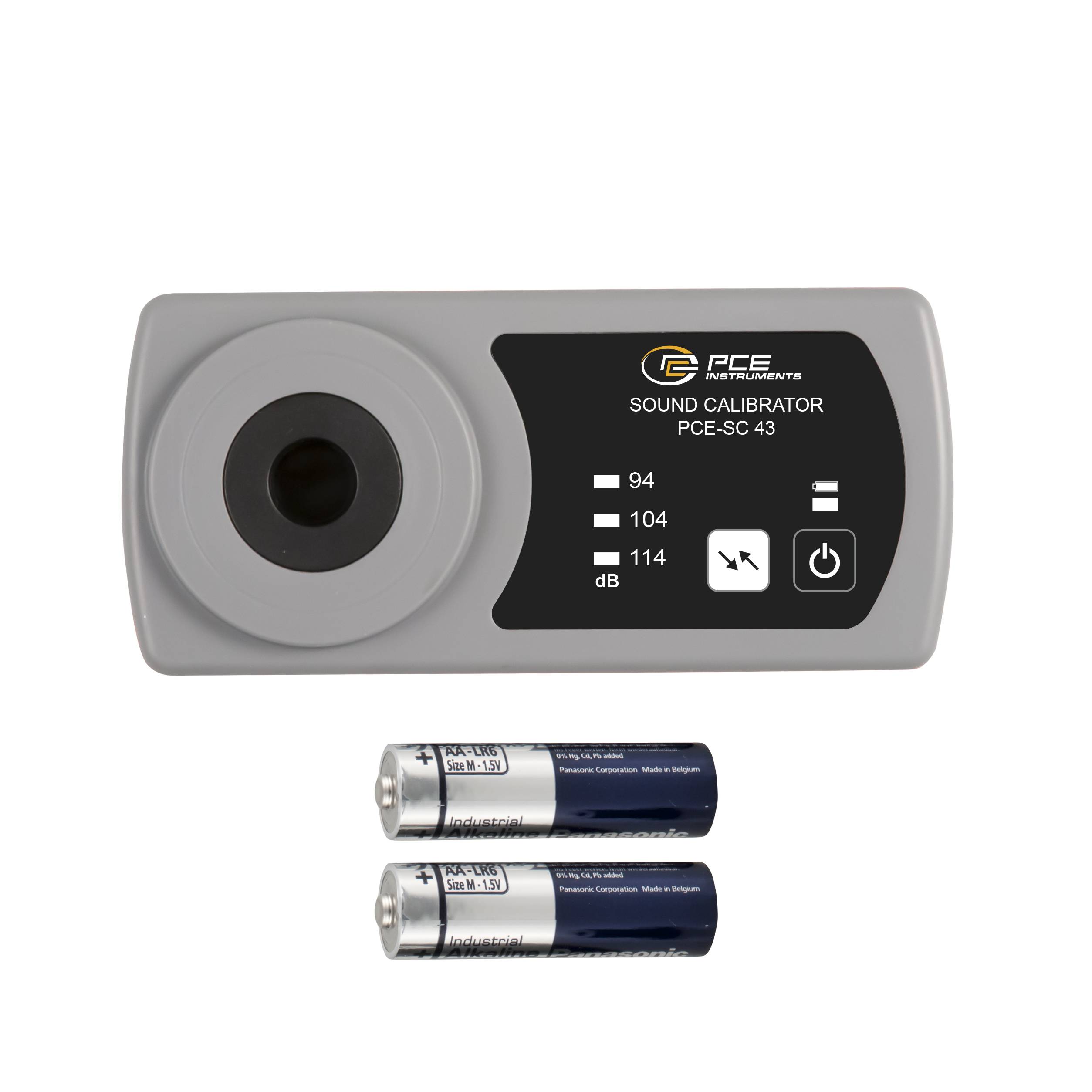

1 x Class II PCE-SC 43 sound calibrator

Hints

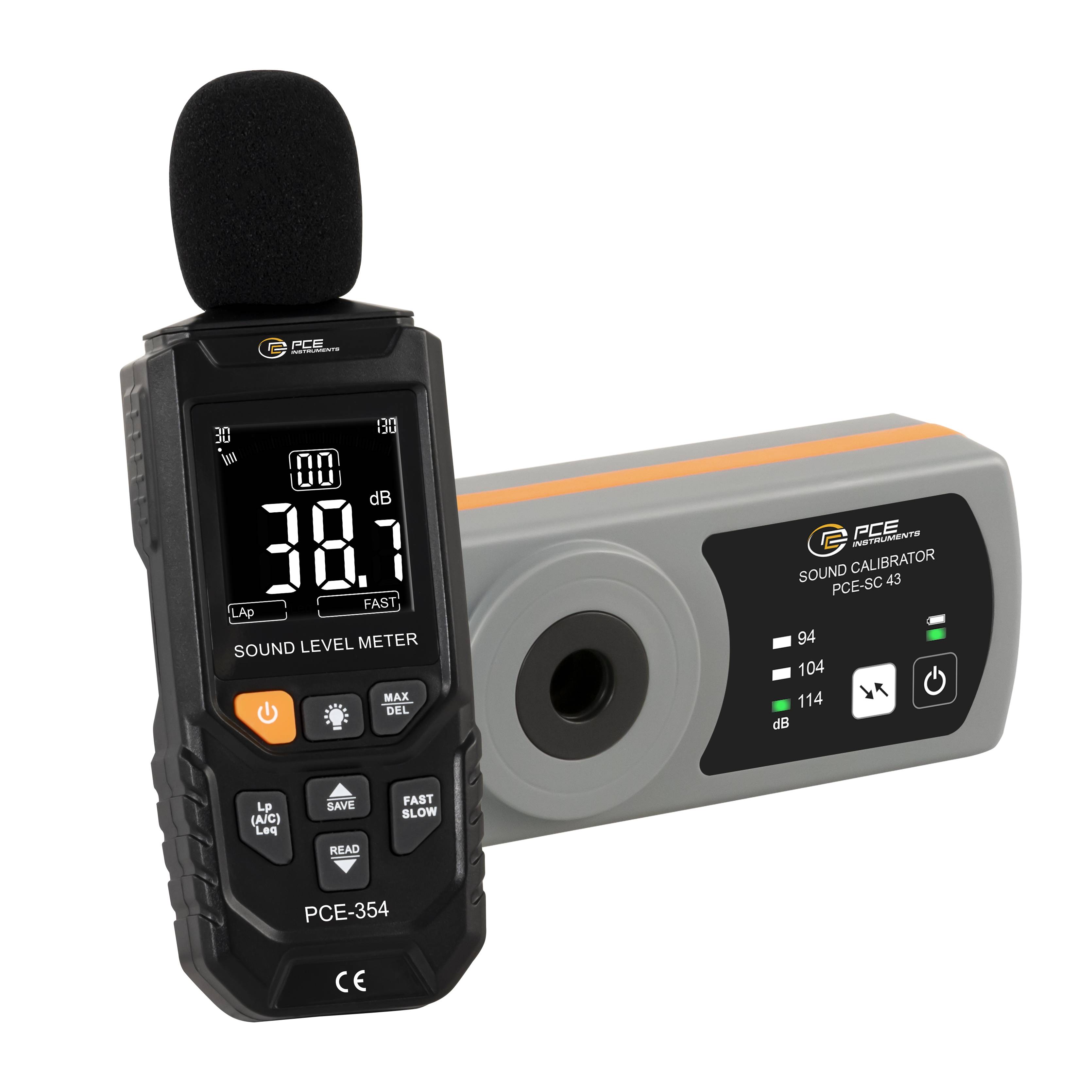

PCE Instruments Sound Level Meter PCE-354-SC43 includes a sound calibrator - two hand-held devices with many functions for use as a noise meter |Environment measuring device |Work safety measuring device |Sound measuring technique
