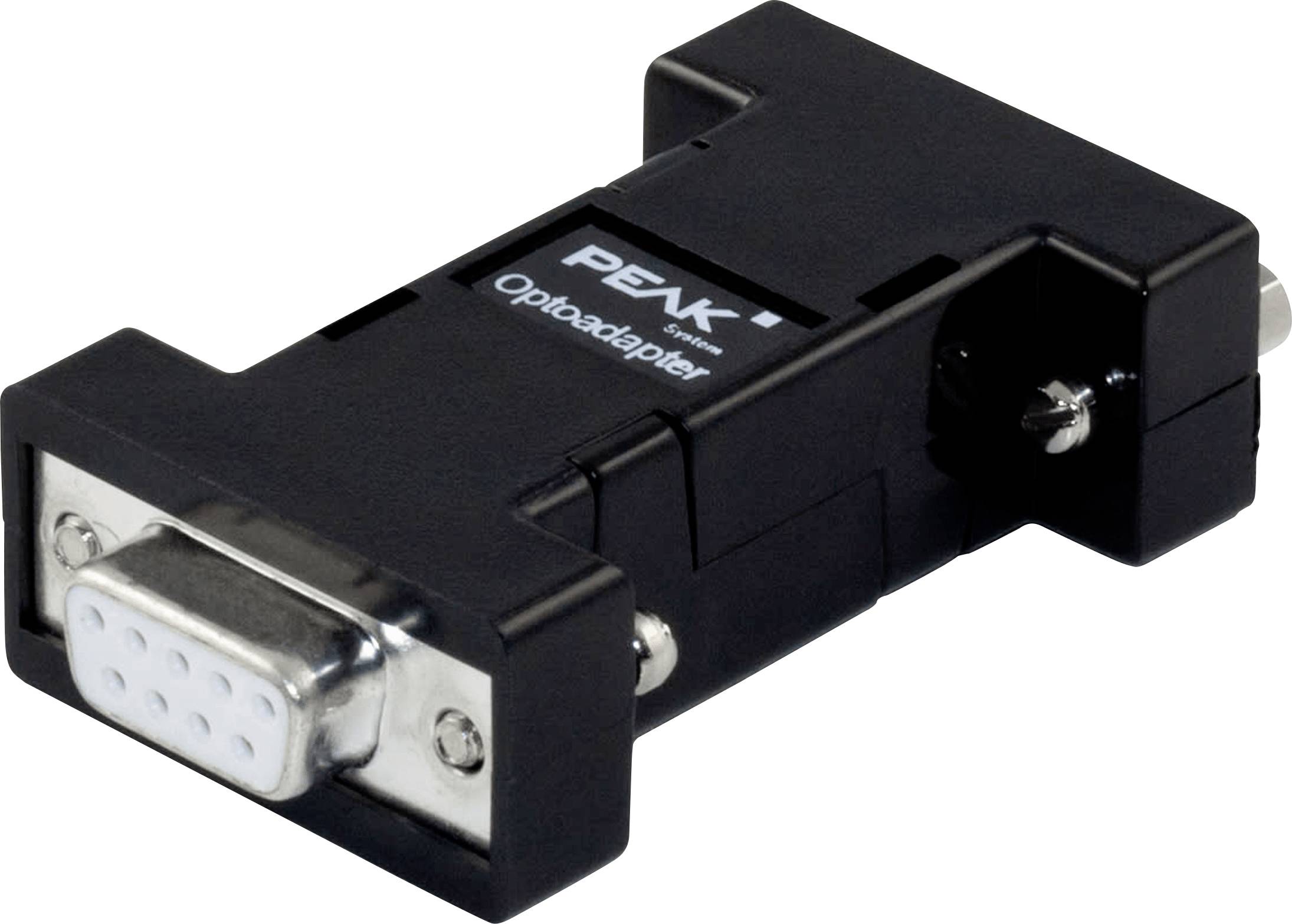

PEAK-System Technik IPEH-002038 PCAN-Optoadapter CAN bus CAN bus 5 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 169.99 / piece)
€ 169.99
incl. VAT
14-day return policy included
Highlights & Details
Clip-on adapter for decoupling of CAN and CAN FD networks
- Universal adapter for galvanic isolation of CAN/CAN FD bus systems
- Increases resistance to interference and protection of the connected components through galvanic separation up to 500 V.
- Can be flexibly connected to any point in the CAN network
- Integrated bus termination (120 ohms) and status LED for power supply simplify field use
Technical specifications
- Galvanic isolation through DC/DC-converter up to 500 V
- Supported bit rates: 5 kbit/s to 1 Mbit/s (CAN); in CAN-FD buses data rates up to 2 Mbit/s, nominal up to 1 Mbit/s.
- CAN bus connection: D-Sub, 9-pin
- Power supply (5 V) via pin 1 of the D-Sub connector
- Operating temperature: -40 to +85 °C.
- Product type
CAN bus
- Interfaces
CAN bus
- Type
PCAN-Optoadapter
- Operating voltage
5 V
- Min. operating temperature
-40 °C
- Operating temperature
-40 °C (min)
- Manufacturer part #
IPEH-002038
Documents & Downloads
Datasheet
Datasheet 3593589 PEAK-System Technik IPEH-002038 PCAN-Optoadapter CAN bus CAN bus 5 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3593589 PEAK-System Technik IPEH-002038 PCAN-Optoadapter CAN bus CAN bus 5 V 1 pc(s)
Description
The PCAN opto adapter is a universal adapter for galvanic isolation of high-speed CAN bus systems. By the integrated logic, decoupling is possible at any point in the CAN network.
The PCAN opto-adapter can be used in CAN-FD buses with data transfer rates of up to 2 Mbit/s and nominal transfer rates of up to 1 Mbit/s.
This text is machine translated.
The PCAN opto-adapter can be used in CAN-FD buses with data transfer rates of up to 2 Mbit/s and nominal transfer rates of up to 1 Mbit/s.
This text is machine translated.
