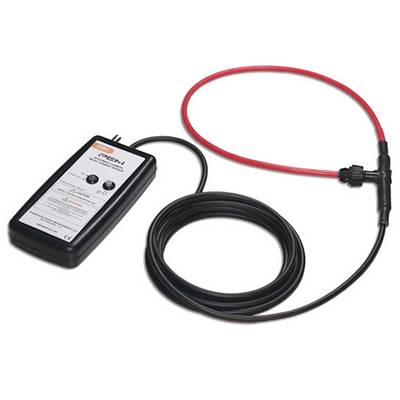

PEM CMC06 B/2.5/700 Clamp meter adapter A/AC reading range: 150 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 2,432.77 / piece)
€
Highlights & Details
CMC Rogowskispule
- N/A
- Opening range of current clamps 700 mm
Technical specifications
- Opening range of current clamps
700 mm
- Basic accuracy
3 %
- Power supply (details)
4 x AA 1.5 batteries V
- Dim
(L x W x H) 183 x 93 x 32 mm
- Height
32 mm
- Length
183 mm
- Width
93 mm
Manufacturer's standards (no certificate)
- Features
Flexible
- Amperage reading range AC (max.)
150 A
- Product type
Clamp meter adapter
Documents & Downloads
Datasheet
Datasheet 2134414 PEM CMC06 B/2.5/700 Clamp meter adapter A/AC reading range: 150 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 2134414 PEM CMC06 B/2.5/700 Clamp meter adapter A/AC reading range: 150 A (max) Flexible
Description
The CMC – Rogowskispule deals with the application of unwanted common-mode currents in systems with AC motors. The CMC serves as an important tool to evaluate this effect and to initiate the appropriate countermeasures.
Application areas:
Motor drive shaft currents
Wave currents at generators
Drives with variable frequency converters
Phase or fault currents in three-phase systems
Variable frequency converters (VSD) which can be used to control AC motors can lead to unwanted coupling of large, high-frequency PWM signals with the mechanical parts of the motor bearing. These discharge currents can cause heating and spark erosion on the mechanically moving parts of the motor. In the end, these discharge currents can cause premature failure and therefore high maintenance and downtime.
This text is machine translated.
Application areas:
Motor drive shaft currents
Wave currents at generators
Drives with variable frequency converters
Phase or fault currents in three-phase systems
Variable frequency converters (VSD) which can be used to control AC motors can lead to unwanted coupling of large, high-frequency PWM signals with the mechanical parts of the motor bearing. These discharge currents can cause heating and spark erosion on the mechanically moving parts of the motor. In the end, these discharge currents can cause premature failure and therefore high maintenance and downtime.
This text is machine translated.
Scope of delivery
- Basic device
- 0.5 m BNC cable
Hints
4 m cable length between coil and integrator available by special procurement.
Please make sure that all specifications meet your requirements. (Cable length, loop length, etc.). This is necessary because all cwt´s are custom-made and are therefore excluded from the exchange.
