Name: PEM CWT Mini 6/B/2.5/200/2 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible
Brand: PEM
SKU: 1667133
Availability: BackOrder

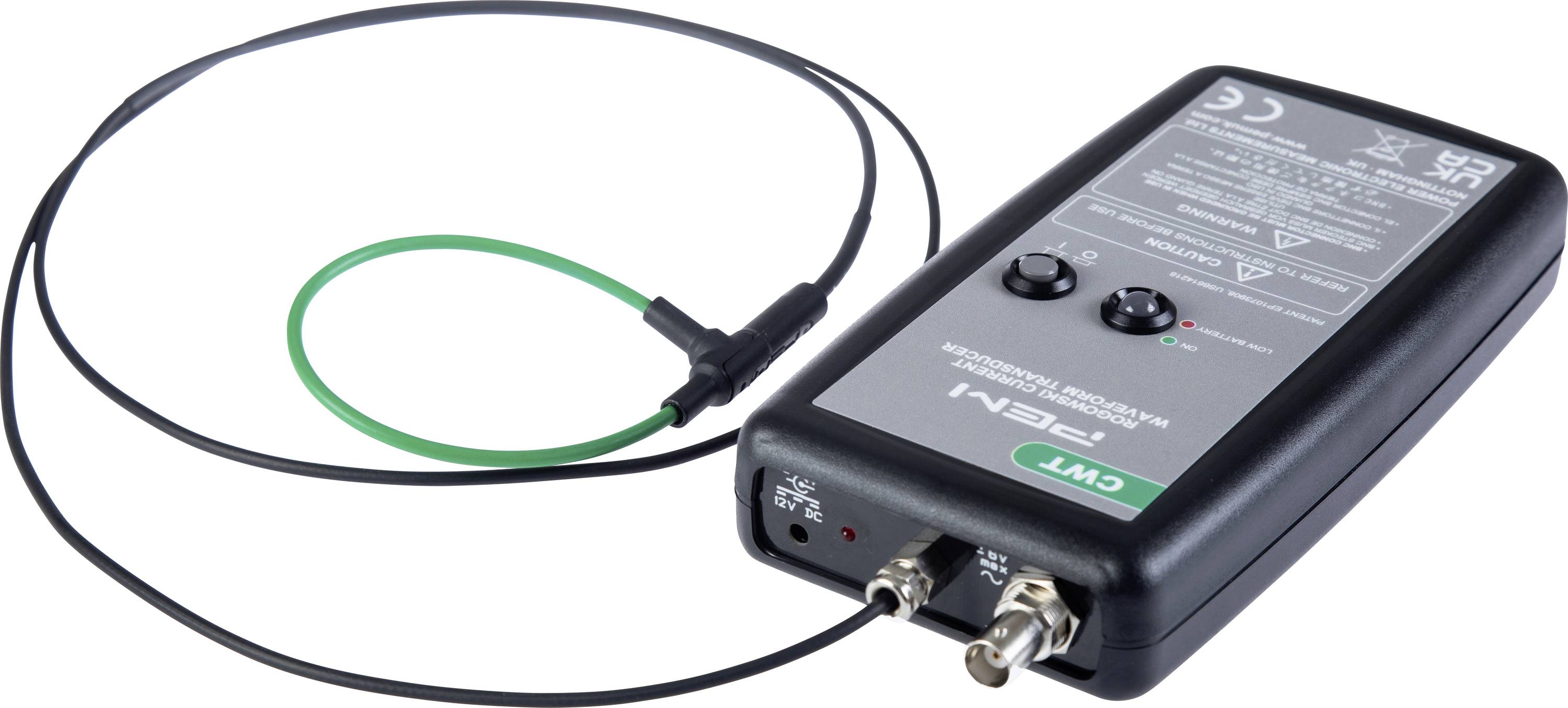

PEM CWT Mini 6/B/2.5/200/2 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible-0

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,069.00 / piece)

€ 2,069.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rogowski current loop of the Servie CWT Mini

N/A
Opening range of current clamps 200 mm

Technical specifications

Output signal: 5.0 mV/A

Opening range of current clamps: 200 mm

Product type: Clamp meter adapter

Type B: BNC socket

: Manufacturer's standards (no certificate)

Amperage reading range AC (max.): 1200 A

Basic accuracy: 2 %

Power supply (details): 4 x AA battery

Dim: (L x W x H) 183 x 93 x 32 mm

Current reading: AC

Output signal (max.): 6 V

Width: 93 mm

Height: 32 mm

Length: 183 mm

Features: Flexible

Variants(All information include VAT, plus shipping costs)

Amperage reading range AC (max.)

PEM CWT Mini 6/B/2.5/200/2 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible

Item no:1667133

Available soon

Conrad Electronic

This article

1200 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 1/B/2.5/100/2 Clamp meter adapter A/AC reading range: 300 A (max) Flexible

Item no:1667128

Available soon

Conrad Electronic

300 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 1/B/2.5/200/2 Clamp meter adapter A/AC reading range: 300 A (max) Flexible

Item no:1667129

Available soon

Conrad Electronic

300 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 15/B/2.5/100/2 Clamp meter adapter A/AC reading range: 3000 A (max) Flexible

Item no:1667134

Available soon

Conrad Electronic

3000 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 15/B/2.5/200/2 Clamp meter adapter A/AC reading range: 3000 A (max) Flexible

Item no:1667135

Available soon

Conrad Electronic

3000 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 150/B/2.5/100/2 Clamp meter adapter A/AC reading range: 30000 A (max) Flexible

Item no:1667137

Available soon

Conrad Electronic

30000 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 150/B/2.5/200/2 Clamp meter adapter A/AC reading range: 30000 A (max) Flexible

Item no:1667138

Available soon

Conrad Electronic

30000 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 3/B/2.5/100/2 Clamp meter adapter A/AC reading range: 600 A (max) Flexible

Item no:1667130

Available soon

Conrad Electronic

600 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 3/B/2.5/200/2 Clamp meter adapter A/AC reading range: 600 A (max) Flexible

Item no:1667131

Available soon

Conrad Electronic

600 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT Mini 30/B/2.5/100/2 Clamp meter adapter A/AC reading range: 6000 A (max) Flexible

Item no:1667136

Available soon

Conrad Electronic

6000 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

Documents & Downloads

Datasheet

Datasheet 1667133 PEM CWT Mini 6/B/2.5/200/2 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible

User & Safety Instructions

User & Safety Instructions 1667133 PEM CWT Mini 6/B/2.5/200/2 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible

Description

In connection with an oscilloscope is the CWT mini the perfect solution for your current measurement, or in industrial applications. Rogowski coils of the CWT mini-series are suitable for development and testing tasks in devices and systems of power electronics. You can combine a 3.5 mm thin, flexible, insulated, easily created coil with the ability to very fast current curves to precisely capture, whether sinusoidal, clock or pulse-shaped.

This text is machine translated.

Features

Recording of current run of semiconductor switches
Development, testing and maintenance of power electronics
Measuring technical monitoring sine-wave of high-frequency currents
Measuring fault currents and shutdown current run
Measurement of pulse currents
Measurement of alternating currents with high direct current shares
Measurement of current harmonic
Measurement of phase or fault currents in three-phase systems

Scope of delivery

Batteries

Hints

4 m cable length between the coil and integrator via special procurement available.

Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
