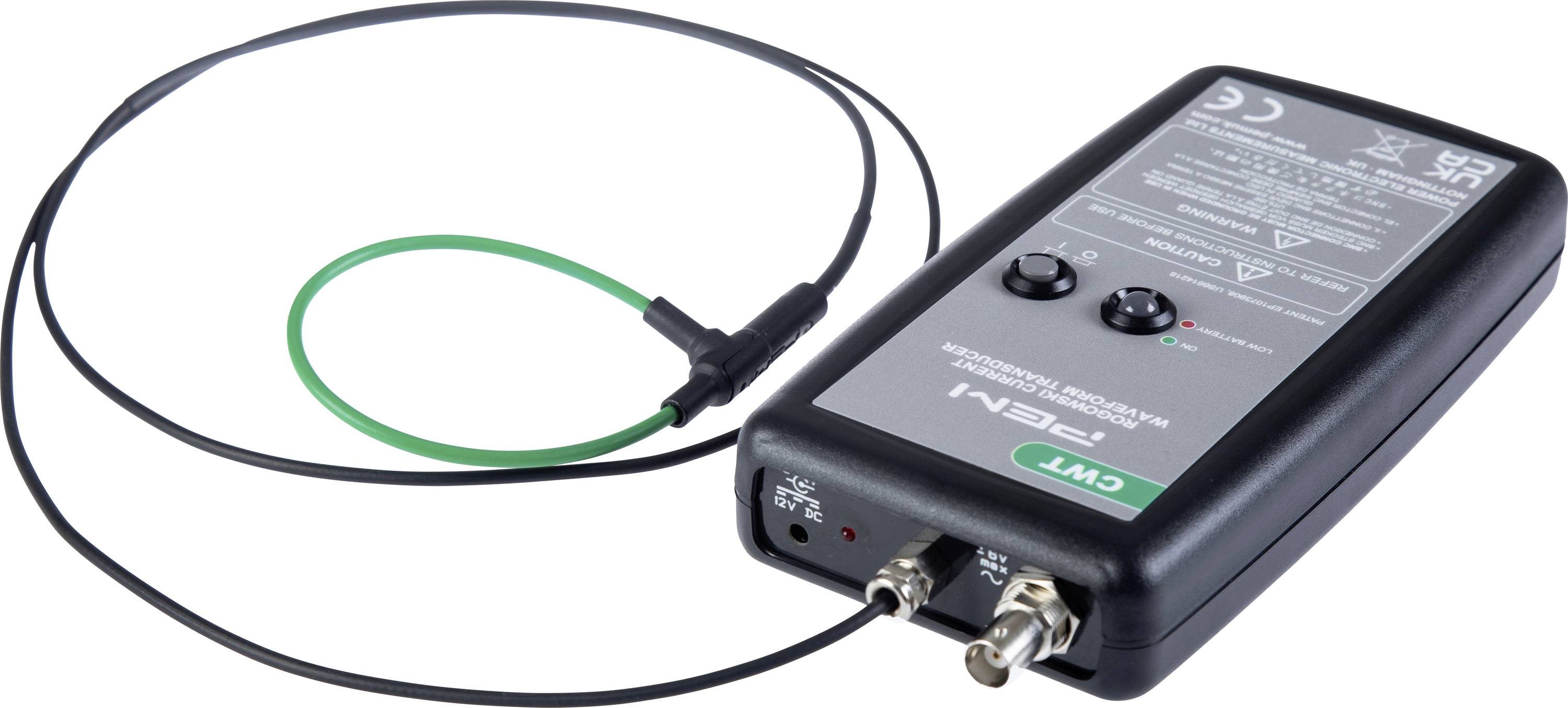

PEM CWT Mini 60/B/2.5/100/2 Clamp meter adapter A/AC reading range: 12000 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,738.66 / piece)
€ 1,738.66
plus VAT.
Highlights & Details
Rogowski current loop of the Servie CWT Mini
- N/A
- Opening range of current clamps 100 mm
Technical specifications
- Output signal: 0.5 mV/A
- Opening range of current clamps
100 mm
- Basic accuracy
2 %
- Power supply (details)
4 x AA battery
- Dim
(L x W x H) 183 x 93 x 32 mm
- Type B
BNC socket
- Current reading
AC
- Height
32 mm
- Length
183 mm
- Width
93 mm
Manufacturer's standards (no certificate)
- Features
Flexible
- Amperage reading range AC (max.)
12000 A
- Output signal (max.)
6 V
- Product type
Clamp meter adapter
Documents & Downloads
Datasheet
Datasheet 1667087 PEM CWT Mini 60/B/2.5/100/2 Clamp meter adapter A/AC reading range: 12000 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 1667087 PEM CWT Mini 60/B/2.5/100/2 Clamp meter adapter A/AC reading range: 12000 A (max) Flexible
Description
In connection with an oscilloscope is the CWT mini the perfect solution for your current measurement, or in industrial applications. Rogowski coils of the CWT mini-series are suitable for development and testing tasks in devices and systems of power electronics. You can combine a 3.5 mm thin, flexible, insulated, easily created coil with the ability to very fast current curves to precisely capture, whether sinusoidal, clock or pulse-shaped.
This text is machine translated.
This text is machine translated.
Features
- Recording of current run of semiconductor switches
- Development, testing and maintenance of power electronics
- Measuring technical monitoring sine-wave of high-frequency currents
- Measuring fault currents and shutdown current run
- Measurement of pulse currents
- Measurement of alternating currents with high direct current shares
- Measurement of current harmonic
- Measurement of phase or fault currents in three-phase systems
Scope of delivery
- Batteries
Hints
4 m cable length between the coil and integrator via special procurement available.
Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
