Name: PEM CWT3N B/2.5/300 Clamp meter adapter A/AC reading range: 600 A (max) Flexible
Brand: PEM
SKU: 2134412
Availability: BackOrder

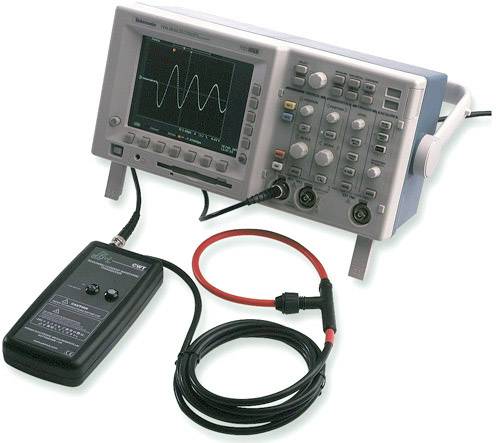

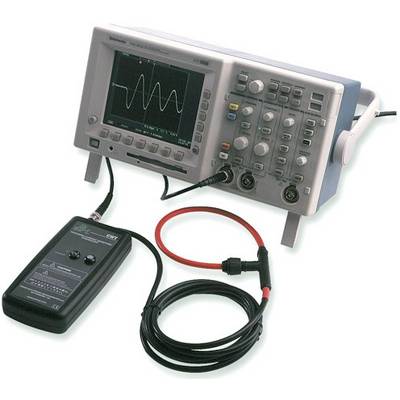

An oscilloscope with a waveform display on the screen, connected to an external measurement probe, lies on a table.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,819.00 / piece)

€ 2,819.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rogowski current loop CWT3N B/2.5/300

N/A
Opening range of current clamps 300 mm

Technical specifications

Output signal: mV/A

Opening range of current clamps: 300 mm

Product type: Clamp meter adapter

Type B: BNC socket

: Manufacturer's standards (no certificate)

Amperage reading range AC (max.): 600 A

Basic accuracy: 0.2 %

Power supply (details): 4 x AA battery

Dim: (L x W x H) 183 x 93 x 32 mm

Current reading: AC

Output signal (max.): 6 V

Width: 93 mm

Height: 32 mm

Length: 183 mm

Features: Flexible

Variants(All information include VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

PEM CWT015 B/2.5/500 Clamp meter adapter A/AC reading range: 30 A (max) Flexible

Item no:2134422

Available soon

Conrad Electronic

30 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,819.00^*

PEM CWT15 B/2.5/1000 Clamp meter adapter A/AC reading range: 3000 A (max) Flexible

Item no:1667048

Available soon

Conrad Electronic

3000 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,819.00^*

PEM CWT15 B/2.5/300 Clamp meter adapter A/AC reading range: 3000 A (max) Flexible

Item no:1667045

Available soon

Conrad Electronic

3000 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT015 B/2.5/1000 Clamp meter adapter A/AC reading range: 30 A (max) Flexible

Item no:2134416

Unavailable

Conrad Electronic

30 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,289.00^*

PEM CWT015 B/2.5/300 Clamp meter adapter A/AC reading range: 30 A (max) Flexible

Item no:2134415

Unavailable

Conrad Electronic

30 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,069.00^*

PEM CWT015 B/2.5/700 Clamp meter adapter A/AC reading range: 30 A (max) Flexible

Item no:2134405

Unavailable

Conrad Electronic

30 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,285.00^*

PEM CWT03 B/2.5/1000 Clamp meter adapter A/AC reading range: 60 A (max) Flexible

Item no:1667110

Unavailable

Conrad Electronic

60 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,079.00^*

PEM CWT03 B/2.5/300 Clamp meter adapter A/AC reading range: 60 A (max) Flexible

Item no:1667107

Unavailable

Conrad Electronic

60 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,079.00^*

PEM CWT03 B/2.5/500 Clamp meter adapter A/AC reading range: 60 A (max) Flexible

Item no:1667108

Unavailable

Conrad Electronic

60 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,079.00^*

PEM CWT03 B/2.5/700 Clamp meter adapter A/AC reading range: 60 A (max) Flexible

Item no:1667109

Unavailable

Conrad Electronic

60 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,079.00^*

Documents & Downloads

Datasheet

Datasheet 2134412 PEM CWT3N B/2.5/300 Clamp meter adapter A/AC reading range: 600 A (max) Flexible

User & Safety Instructions

User & Safety Instructions 2134412 PEM CWT3N B/2.5/300 Clamp meter adapter A/AC reading range: 600 A (max) Flexible

Description

The Rogowski coils of the CWT-series are suitable for test and development tasks in systems of power electronics. Rogowski current loops combine a thin, insulated, flexible, easily created coil with the ability to capture fast current curves exactly whether the same synchronised, sinusoidal or pulse-shaped.

This text is machine translated.

Features

Recording of current run of semiconductor switches
Development, testing and maintenance of power electronics
Measuring technical monitoring sine-wave of high-frequency currents
Measuring fault currents and shutdown current run
Measurement of pulse currents
Measurement of alternating currents with high direct current shares
Measurement of current harmonic
Measurement of phase or fault currents in three-phase systems

Scope of delivery

Batteries
0.5 m BNC cable
User manual.

Hints

4 m cable length between the coil and integrator via special procurement available.

Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
