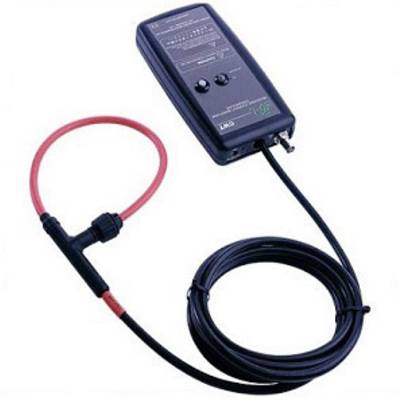

PEM CWT6 B/2.5/300 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 1,785.71 / piece)
€
Highlights & Details
Rogowski current loop CWT6 B/2.5/300
- N/A
- Opening range of current clamps 300 mm
Technical specifications
- Output signal: 5.0 mV/A
- Opening range of current clamps
300 mm
- Basic accuracy
0.2 %
- Power supply (details)
4 x AA battery
- Dim
(L x W x H) 183 x 93 x 32 mm
- Type B
BNC socket
- Current reading
AC
- Height
32 mm
- Length
183 mm
- Width
93 mm
Manufacturer's standards (no certificate)
- Features
Flexible
- Amperage reading range AC (max.)
1200 A
- Output signal (max.)
6 V
- Product type
Clamp meter adapter
Documents & Downloads
Datasheet
Datasheet 1667114 PEM CWT6 B/2.5/300 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 1667114 PEM CWT6 B/2.5/300 Clamp meter adapter A/AC reading range: 1200 A (max) Flexible
Description
The Rogowski coils of the CWT-series are suitable for test and development tasks in systems of power electronics. Rogowski current loops combine a thin, insulated, flexible, easily created coil with the ability to capture fast current curves exactly whether the same synchronised, sinusoidal or pulse-shaped.
This text is machine translated.
This text is machine translated.
Features
- Recording of current run of semiconductor switches
- Development, testing and maintenance of power electronics
- Measuring technical monitoring sine-wave of high-frequency currents
- Measuring fault currents and shutdown current run
- Measurement of pulse currents
- Measurement of alternating currents with high direct current shares
- Measurement of current harmonic
- Measurement of phase or fault currents in three-phase systems
Scope of delivery
- Batteries
- 0.5 m BNC cable
- User manual.
Hints
4 m cable length between the coil and integrator via special procurement available.
Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
