Name: PEM Dcflex/40/2000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible
Brand: PEM
SKU: 2114749
Availability: BackOrder

Highlights & Details

DC current clamp of the DCflex series

N/A
Opening range of current clamps 2000 mm

Technical specifications

Opening range of current clamps: 2000 mm

Product type: Clamp meter adapter

: Manufacturer's standards (no certificate)

Basic accuracy: 1 %

A DC reading range (max.): 40000 A

Power supply (details): Battery 4 x AA 1.5 V

Dim: (L x W x H) 183 x 93 x 32 mm

Current reading: DC

Width: 93 mm

Height: 32 mm

Length: 183 mm

Features: Flexible

Documents & Downloads

Datasheet

Datasheet 2114749 PEM Dcflex/40/2000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible

User & Safety Instructions

User & Safety Instructions 2114749 PEM Dcflex/40/2000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible

Description

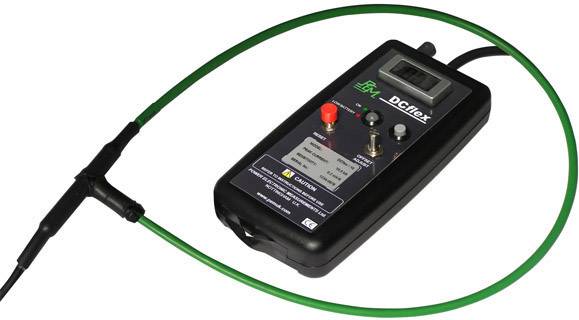

The DC Flex clamp-on ammeter is an easy-to-use, cost-effective, clip-around DC clamp-on ammeter. It is suitable for measuring large direct currents of 2 kA and more with a typical accuracy of ±1%.

This text is machine translated.

Features

Thin, flexible, clip-around coil, which can be easily used in confined spaces.
Accuracy typically 1%
Intrinsically safe, electrically isolated measurement
Battery-operated with integrated display on the casing, which means that the use of external oscilloscopes or measuring devices is not necessary

Hints

Please make sure that all specifications meet your requirements. (Cable length, loop length, etc.). This is necessary because all cwt´s are custom-made and are therefore excluded from the exchange.
