Name: Pfannenberg DTT 6101 230V MC 7035 Cooler 230 V AC 665 W (W x H x D) 588 x 451 x 393 mm 1 pc(s)
Brand: Pfannenberg
SKU: 3335232
Availability: BackOrder

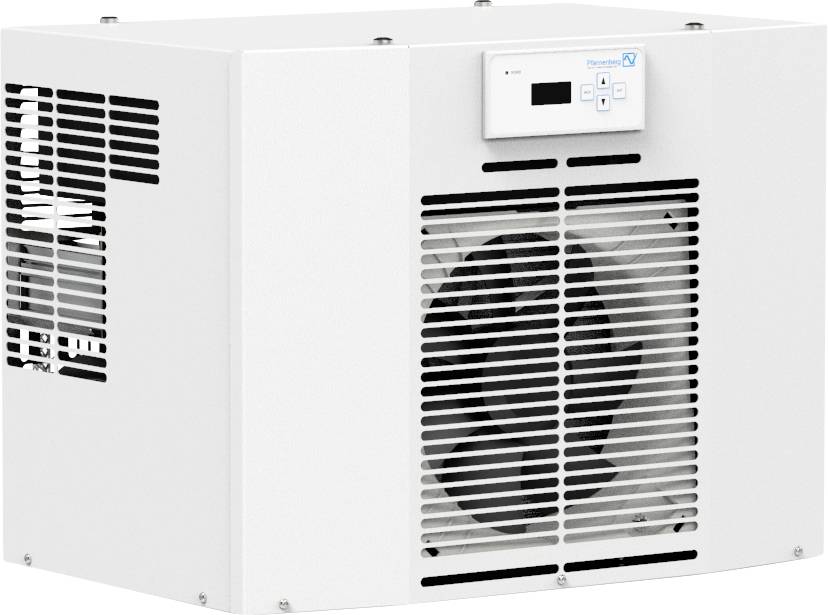

White air conditioning unit with ventilation grille and digital display on the front. Suitable for cooling and ventilating indoor spaces.

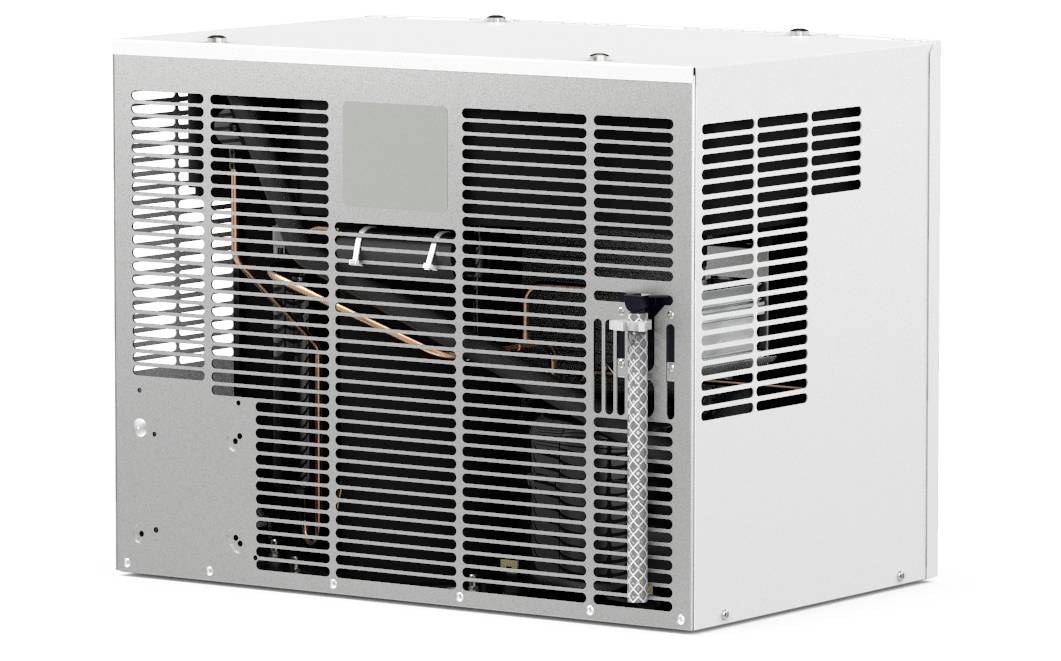

Air conditioning unit in white casing with ventilation grilles, rear view. Cable and filter visible behind the louvres. Suitable for window installation.

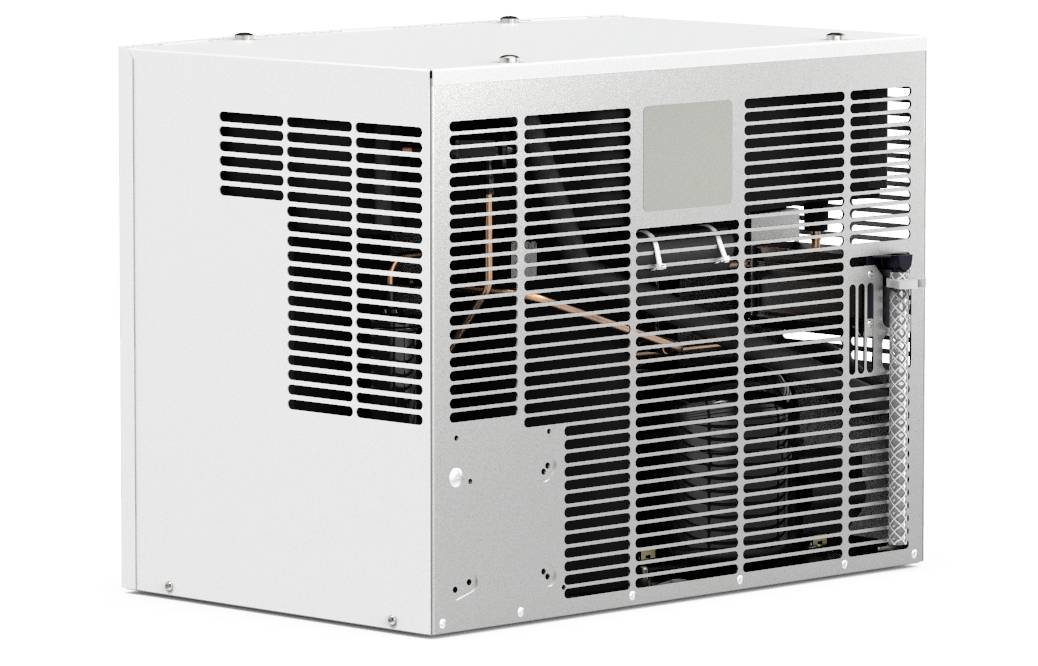

A white air conditioning unit with ventilation grilles and visible copper pipes on the right side, designed for cooling interior spaces.

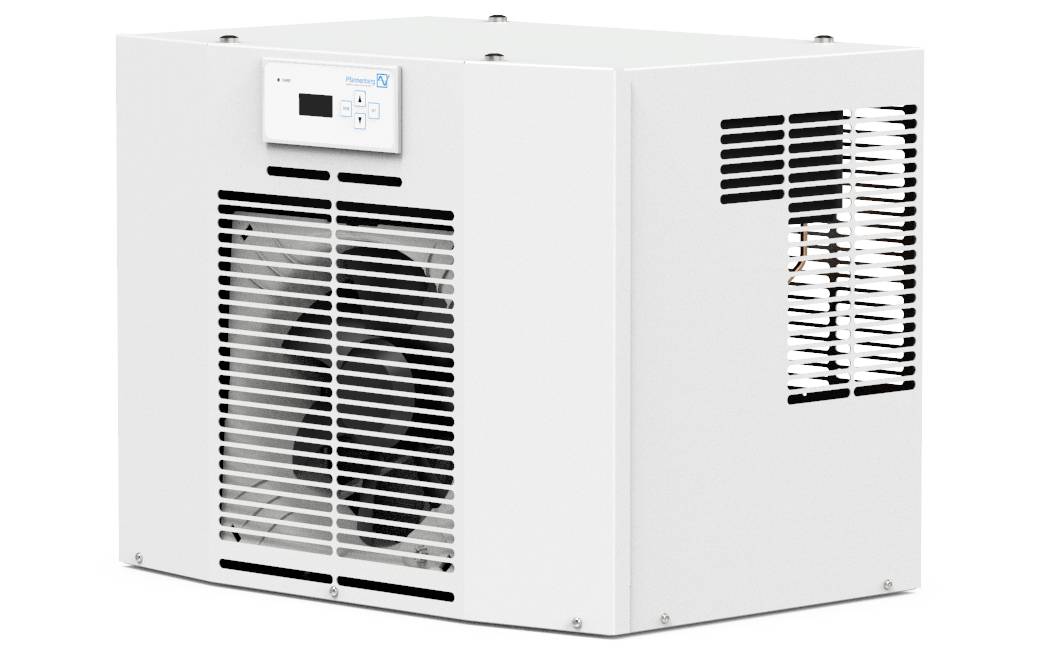

White, rectangular industrial air conditioning unit with ventilation grilles and a control panel on the front.

1/4

Product type

Cooler

Operating voltage

230 V AC

Power

665 W

Width

588 mm

Height

451 mm

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,705.00 / piece)

€ 1,705.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Cooler

Type: DTT 6101 230V MC 7035

Features: Fan

Operating voltage: 230 V AC

: 665 W

Air flow rate: 590 m³/h

Compatible with: uniwersalny

Min. temperature: 15 °C

Max. temperature: 55 °C

Width: 588 mm

Height: 451 mm

Depth: 393 mm

Dim: (W x H x D) 588 x 451 x 393 mm

Content: 1 pc(s)

: 588 mm

: Other

: 451 mm

: 393 mm

: AC

: FALSE

: TRUE

: TRUE

: 15-55 °C

: 230-230 V

: 230-230 V

: 665 W

: FALSE

: 590-590 m³/h

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3335232 Pfannenberg DTT 6101 230V MC 7035 Cooler 230 V AC 665 W (W x H x D) 588 x 451 x 393 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3335232 Pfannenberg DTT 6101 230V MC 7035 Cooler 230 V AC 665 W (W x H x D) 588 x 451 x 393 mm 1 pc(s)

Description

The concept of roof construction saves space, keeps escape routes free and protects against mechanical damage during production operations.
The DTT roof structure of cooling units have a unique, patented condensate management.
The innovative arrangement of the cooling circuits represents the function of conventional roof cooling devices
Literally on the head and reliably prevents condensate from entering the switch cabinet.
Fits the cabinets of every manufacturer and is available in 3 sizes and 6 power levels.
Multi Controller (MC): Energy-saving switching mode makes possible by means of an additional sensor
An internal fan cut-off depending on demand.
Robust steel plate cover (no plastic) for industrial environments, in various
Colours can be painted.
Easy to service and maintain thanks to easy and tool-free mounting and
The front removable hood that allows quick access to the components.

This text is machine translated.
