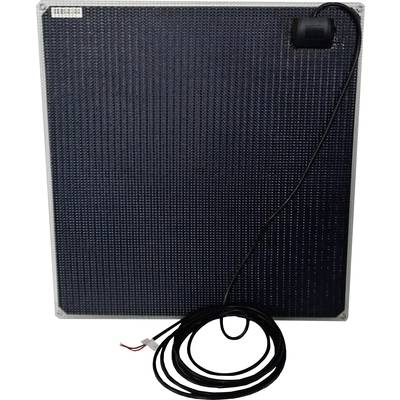

Name: Phaesun Mare Flex 55 Monocrystalline solar panel 55 Wp 12 V
Brand: Phaesun
SKU: 2372967
Availability: InStock

Highlights & Details

Solar module Mare Flex 55

Light and flat
No sharp edges
Flexible

Technical specifications

Protection class IP 65
Connection cable 2x 2.5 mm²
Temperature range -40 to +85 °C.
Mounting holes Ø 6 mm

Product type: Monocrystalline solar panel

: 55 Wp

Nominal voltage: 12 V

Dim: (L x W x H) 560 x 540 x 4 mm

Efficiency: 18.2 %

Connector: Junction box

Weight: 3.5 kg

Cable length: 5.00 m

Short-circuit current: 3490 mA

Open circuit voltage (OCV): 20.4 V

Nominal current: 3240 mA

Width: 540 mm

Height: 4 mm

Length: 560 mm

Voltage (max.): 17 V

No. of cells: 31

Documents & Downloads

Datasheet

Datasheet 2372967 Phaesun Mare Flex 55 Monocrystalline solar panel 55 Wp 12 V

User & Safety Instructions

User & Safety Instructions 2372967 Phaesun Mare Flex 55 Monocrystalline solar panel 55 Wp 12 V

Description

Thin and light solar modules are ideal for use in mobile applications, such as outdoor activities and camping, as well as for mounting on sailing yachts and motor boats as well as on caravans or truck roofs.
The ETFE (ethylene tetrafluoroethylene) front film is particularly weather-proof with high transparency of light over a wide temperature range and has excellent resistance against chemical influences and UV radiation. The aluminum rear panel integrated in the laminate gives the module a high rigidity.

This text is machine translated.

Features

Light and flat
No sharp edges
Aerodynamic
5 m sheathed cable
Textured surface
Aluminum mounting plate
Fastening eyes
Flexible
Aluminum back

Scope of delivery

Solar module
User manual.

Description

Thin and light solar modules are ideal for use in mobile applications, such as outdoor activities and camping, as well as for mounting on sailing yachts and motor boats as well as on caravans or truck roofs.
The ETFE (ethylene tetrafluoroethylene) front film is particularly weather-proof with high transparency of light over a wide temperature range and has excellent resistance against chemical influences and UV radiation. The aluminum rear panel integrated in the laminate gives the module a high rigidity.

This text is machine translated.
