Phoenix Contact 1604450 HC-B 16-TMB-100/O1STM40G-EMV Bush enclosure 10 pc(s)
EAN:
Part number:
Item no:
Product type
Bush enclosure
Case material
Aluminium, die cast
Thread size
M40
Type
HC-B 16-TMB-100/O1STM40G-EMV
Series
HC-B-TMB
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 47.82 / piece)
€ 478.15
plus VAT.
14-day return policy included
Highlights & Details
EMC housing HC-B 16-TMB-100/O1STM40G-EMV
- HC-B16-TMB-100/O1 STM 40 G-EMC
- Industrial packaging, pack of 10
Technical specifications
- Type
HC-B 16-TMB-100/O1STM40G-EMV
- Product type
Bush enclosure
- Series
HC-B-TMB
- Manufacturer part #
1604450
- Features
+ bayonet
+ thread
Cable outlet (straight)
- Case material
Aluminium, die cast
- Factory colour
Silver
- Thread size
M40
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Industrial packaging
Yes
- Content
10 pc(s)
IP65
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 717979 Phoenix Contact 1604450 HC-B 16-TMB-100/O1STM40G-EMV Bush enclosure 10 pc(s)
User & Safety Instructions
User & Safety Instructions 717979 Phoenix Contact 1604450 HC-B 16-TMB-100/O1STM40G-EMV Bush enclosure 10 pc(s)
Description

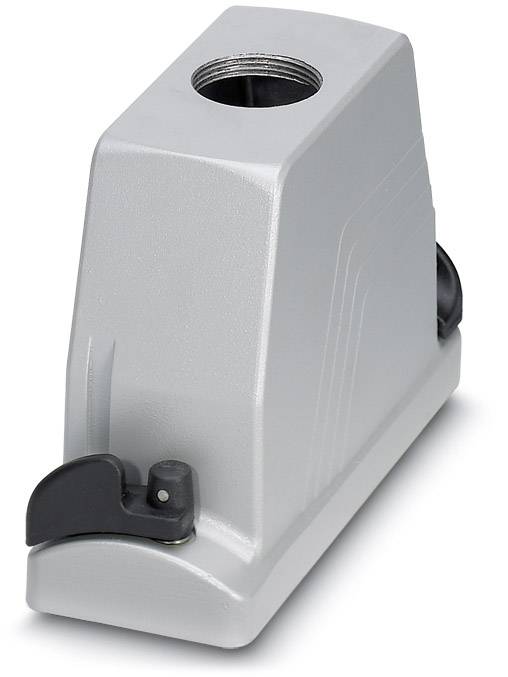

HEAVYCON ADVANCE EMV sleeve housing B16, with bayonet locking, height 100 mm, with 1x M40 thread, straight cable outlet
