Phoenix Contact 1623509 eMobility charging cable 4 m incl. protective cap
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
AC charging cable
- Charge mode: Mode 3
- Protection class: IP44
- Cable length 4 m
Technical specifications
- Type A
Type 2
- Type B
Type 2
- No. of phases
3-phase
- Type
C-line black/gray
- Charging mode
Mode 3
- Cable length
4 m
- Cable features
incl. protective cap
- Core layout
5 x 6.0 mm² + 1 x 0.5 mm² (prEN 50620, VDE Reg. 8789 class 5)
- Nominal voltage
480 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP44
- Certification marks
IEC 62196-2
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging current
32 A
- Product type
eMobility charging cable
Documents & Downloads
Datasheet
Datasheet 1573971 Phoenix Contact 1623509 eMobility charging cable 4 m incl. protective cap
User & Safety Instructions
User & Safety Instructions 1573971 Phoenix Contact 1623509 eMobility charging cable 4 m incl. protective cap
Description

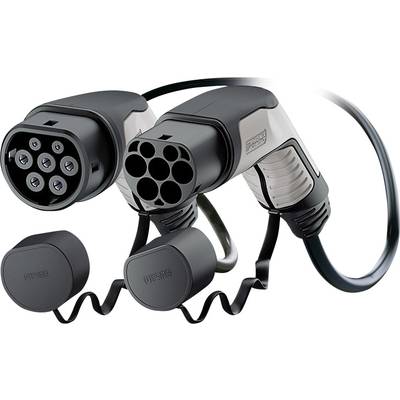

Suitable for charging stations, electric and plug-in hybrid vehicles. According to IEC 62196-2 charging cable with vehicle clutch. Mobile AC charging cable with vehicle charging plug and infrastructure charging plug, with protective caps, Type 2, IEC 62196-2, 32 A/480 V (AC), Design Line C-line, cable: 4 m, black, straight, plug face: black, grip range: gray.
This text is machine translated.
This text is machine translated.
Features
- Outer sheath made of polyurethane (PUR).
