Phoenix Contact 1627354 eMobility charging cable 5 m PUR coating
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 7 Piece(s) available
Highlights & Details
AC charging cable
- Charge mode: Mode 3
- Protection class: IP44
- Cable length: 5 m
Technical specifications
- Product type
eMobility charging cable
- Type A
Type 2
- Type B
Open cable ends
- No. of phases
1-phase
- Type
C-line black/gray
- Charging mode
Mode 3
- Cable length
5 m
- Cable features
PUR coating
- Core layout
3 x 2.5 mm² + 1 x 0.5 mm² (prEN 50620, VDE Reg. 8789 class 5)
- Nominal voltage
250 V AC
- Nominal current
20 A
- Nominal current - rounded value
20 A
IP44
- Certification marks
IEC 62196-2
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
5 kW
- Charging current
20 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1573920 Phoenix Contact 1627354 eMobility charging cable 5 m PUR coating
User & Safety Instructions
User & Safety Instructions 1573920 Phoenix Contact 1627354 eMobility charging cable 5 m PUR coating
Description

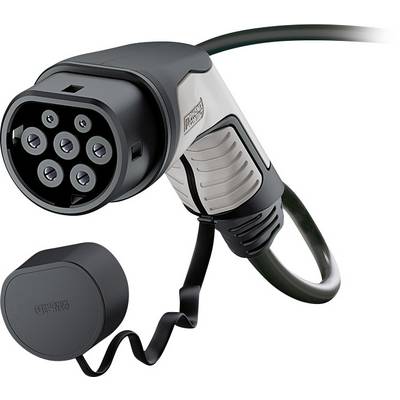

Suitable for charging stations, electric and plug-in hybrid vehicles. According to IEC 62196-2 charging cable with vehicle clutch. AC charging cable with vehicle charging plug and open cable end, with protective cap, Type 2, IEC 62196-2, 20 A/250 V (AC), Design Line C-line, cable: 5 m, black, straight, separate variant with single wire-end sleeves, wire-end plug face: black, grip range: gray.
This text is machine translated.
This text is machine translated.
Features
- Outer sheath made of polyurethane (PUR).
