Name: Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 567493
Availability: InStock

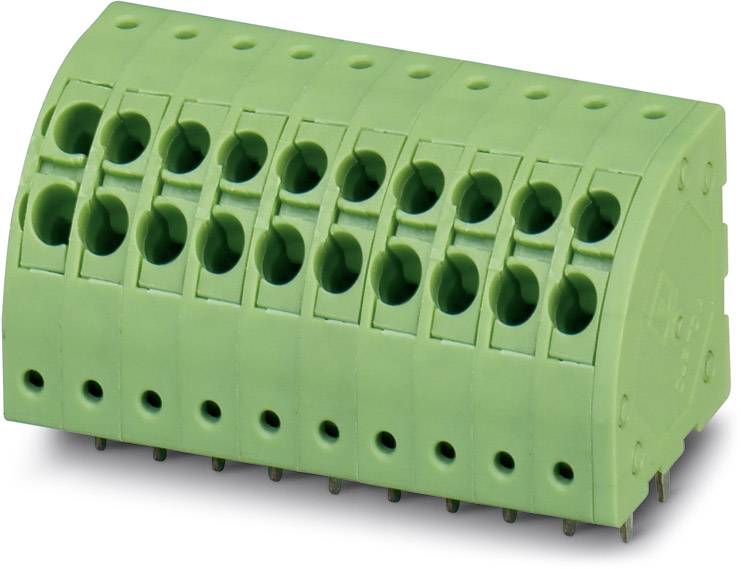

Green, curved electrical connector with multiple holes for electrical assembly; shows a terminal block with inputs for cables.

Image similar

Product type

Spring-loaded terminal

3.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

162 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.88 / piece)

€ 93.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: PTDA 1,5/ 4-3,5

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 3.50 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Series: PTDA

Min. stripping length: 6 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 13.5 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 13.5 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 16

Contact material: Copper alloy

Enclosure material: Polyamide 6.6

Factory colour: Green

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1724938

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 240 V

Width: 19.50 mm

Height: 16.00 mm

Length: 15.40 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

No. of rows

Pins per row

Number of pins

Nominal current - rounded value

Connector orientation

Connection

Product type

Factory colour

Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Item no:567493

Dispatches on Wed 11 Nov

162 Set(s)Conrad Electronic

This article

3.50 mm

13.5 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Phoenix Contact 1724912 Spring-loaded terminal 1.50 mm² Number of pins 2 Green 50 pc(s)

Item no:566987

Dispatches on Wed 11 Nov

15 Set(s)Conrad Electronic

3.50 mm

13.5 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Phoenix Contact 1724916 Spring-loaded terminal 1.00 mm² Number of pins 4 Green 50 pc(s)

Item no:775216

Dispatches on Wed 30 Dec

Conrad Electronic

3.81 mm

12 A

Perpendicular (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)

Item no:568100

Dispatches on Wed 11 Nov

9 Set(s)Conrad Electronic

3.50 mm

13.5 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Phoenix Contact 1725120 TWIN connector 1.50 mm² Number of pins 3 Green 250 pc(s) Piece

Item no:566762

Dispatches on Wed 11 Nov

2 Set(s)Conrad Electronic

3.50 mm

8 A

Spring-loaded terminal

TWIN connector

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Phoenix Contact 1725133 TWIN connector 1.50 mm² Number of pins 4 Green 250 pc(s) Piece

Item no:566506

Dispatches on Wed 11 Nov

10 Set(s)Conrad Electronic

3.50 mm

8 A

Spring-loaded terminal

TWIN connector

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Phoenix Contact 1725302 Spring-loaded terminal 2.50 mm² Number of pins 2 Green 50 pc(s)

Item no:567993

Dispatches on Wed 11 Nov

981 Set(s)Conrad Electronic

5 mm

24 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Phoenix Contact 1725315 Spring-loaded terminal 2.50 mm² Number of pins 3 Green 50 pc(s)

Item no:566830

Dispatches on Wed 11 Nov

5 Set(s)Conrad Electronic

5 mm

24 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Phoenix Contact 1725328 Spring-loaded terminal 2.50 mm² Number of pins 4 Green 50 pc(s)

Item no:568986

Dispatches on Wed 11 Nov

11 Set(s)Conrad Electronic

5 mm

24 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Phoenix Contact 1725341 Spring-loaded terminal 2.50 mm² Number of pins 5 Green 50 pc(s)

Item no:717428

Dispatches on Wed 11 Nov

142 Set(s)Conrad Electronic

5 mm

24 A

At an angle (to the PCB)

Spring-loaded terminal

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 567493 Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 567493 Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 240 V, Pitch: 3.5 mm, Number of positions: 4, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 45 °, Color: green
