Name: Phoenix Contact 1933943 Screw terminal 2.50 mm² Number of pins 10 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 772260
Availability: BackOrder

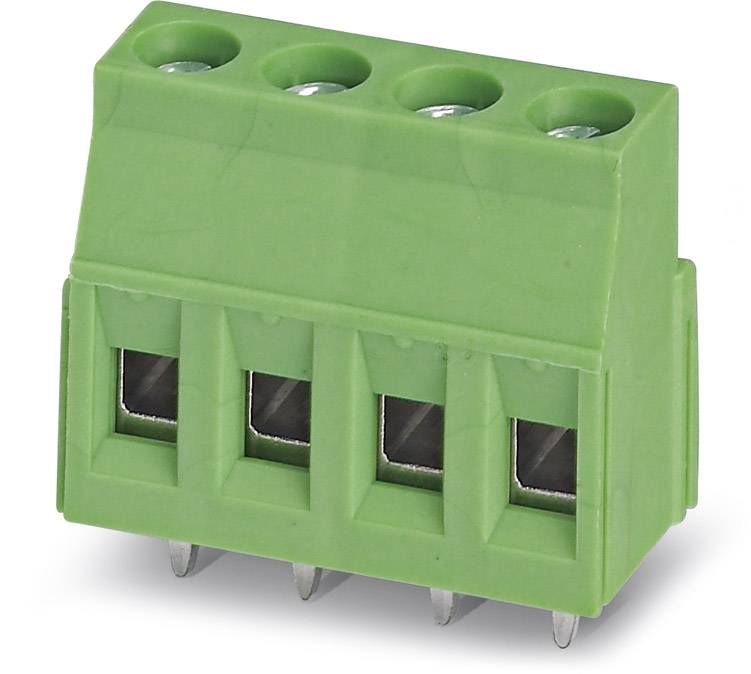

A green, four-pin connector used for connecting conductors in electrical circuits.

Product type

Screw terminal

5.00 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue, 6 Apr 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.90 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block MKDSN 2,5/10

Content 50 pc(s)

Technical specifications

Type: MKDSN 2,5/10

Product type: Screw terminal

Features: + extractor sleeve

CS: 5.00 mm

Pins per row: 10

Number of pins: 10

Series: MKDSN

Stripping length (max.): 6.50 mm

Connection: Screw terminal
Print

Nominal current: 16 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 16 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 14

Contact material: Tin plated

Factory colour: Green

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1933943

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 400 V

Width: 50.00 mm

Height: 18.50 mm

Length: 9.50 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 772260 Phoenix Contact 1933943 Screw terminal 2.50 mm² Number of pins 10 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 772260 Phoenix Contact 1933943 Screw terminal 2.50 mm² Number of pins 10 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 16 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 10, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
