Phoenix Contact Relay card equipped 1 pc(s) UM-32 RM/RT-G24/21/PLC 1 change-over 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Screw terminal
Features
equipped
Datasheet (PDF)
Number
Total (€ 847.90 / piece)
€ 847.90
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Contact material (relay): AgNi
- Product type
Relay card
- Features
equipped
- Type
UM-32 RM/RT-G24/21/PLC
- Operating voltage
24 V DC
- Channels
32
- Contact type
1 change-over
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
5 A
- Connection
Screw terminal
- Content
1 pc(s)
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Length
271 mm
- Width
123 mm
- Dim
(L x W) 271 mm x 123 mm
DIN rail (top hat rail) 35 mm
271.5
125.5 mm
62.5 mm
0.018 A
24 V
50
Screw connection
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 708427 Phoenix Contact Relay card equipped 1 pc(s) UM-32 RM/RT-G24/21/PLC 1 change-over 24 V DC
User & Safety Instructions
User & Safety Instructions 708427 Phoenix Contact Relay card equipped 1 pc(s) UM-32 RM/RT-G24/21/PLC 1 change-over 24 V DC
Description

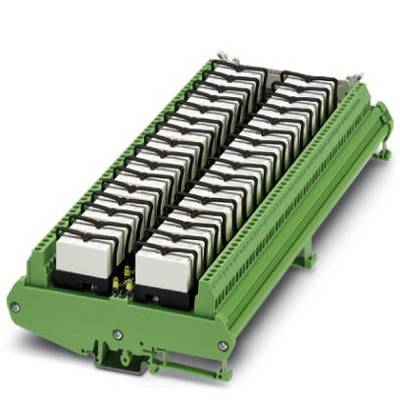

Varioface output module, with 32 miniature relays, 1 PDT, plugged, for 24 V DC (incl. relay)
Scope of delivery
- Completely fitted with 32 miniature relay (Type REL-MR-24DC/21HC).
