Phoenix Contact Socket housing cable PC Total number of pins 4 Contact spacing: 7.62 mm 1777749 50 pc(s)

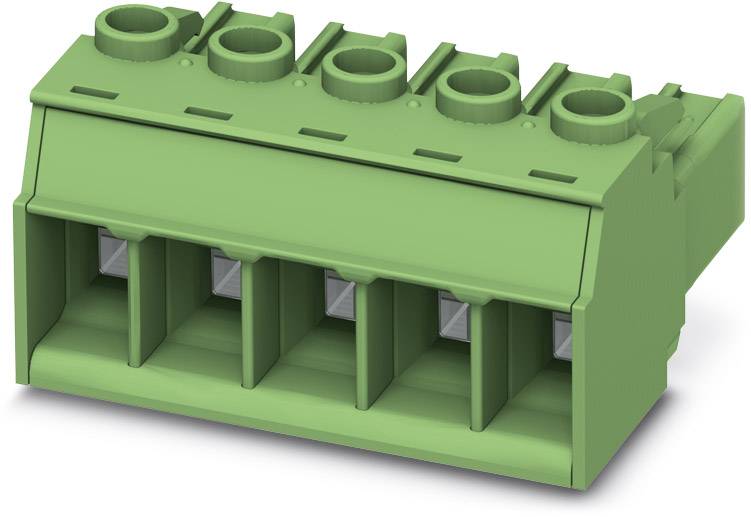

Green electrical connector with five terminals, rectangular in shape, shown at an angled side view.
Image similar
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
PC
CS
7.62 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
129 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 4.80 / piece)
€ 239.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Printed-circuit board connector PC 5/ 4-ST1-7,62

  • Content: 50 pc(s)
  • No. of rows: 1
  • Total number of pins: 4

Technical specifications

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

1

Connector system

wire-to-board

Series

PC

Features

+ extractor sleeve

CS

7.62 mm

Pins per row

4

Total number of pins

4

Width

35.30 mm

Nominal current

41 A

Nominal current - rounded value

41 A

Content

50 pc(s)

AWG max.

10

AWG (min.)

24

Stripping length (max.)

10.00 mm

Dim

(L x W x H) 19.70 x 35.30 x 30.43 mm

Connection

Screw terminal

Plug

Manufacturer part #

1777749

Factory colour

Green

Industrial packaging

Yes

Contact material

Tin plated

Connector contact surface

Tin plated

Nominal voltage

1000 V

Height

30.43 mm

Length

19.70 mm

max. cross section

10 mm²

Min. cross section

0.2 mm²

Type

PC 5/ 4-ST1-7,62

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 196377 Phoenix Contact Socket housing cable PC Total number of pins 4 Contact spacing: 7.62 mm 1777749 50 pc(s)

User & Safety Instructions

User & Safety Instructions 196377 Phoenix Contact Socket housing cable PC Total number of pins 4 Contact spacing: 7.62 mm 1777749 50 pc(s)

Description

Plug component, Nominal current: 41 A, Rated voltage (III/2): 1000 V, Number of positions: 4, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin
