Name: Platinet 46233 eMobility charging cable 5 m
Brand: Platinet
SKU: 3532956
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

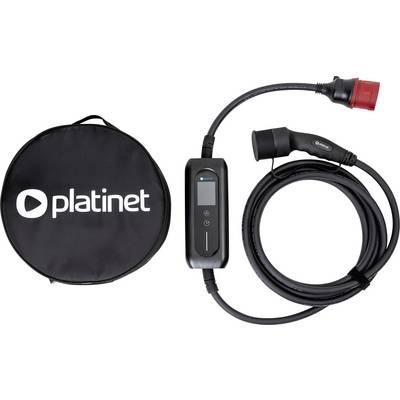

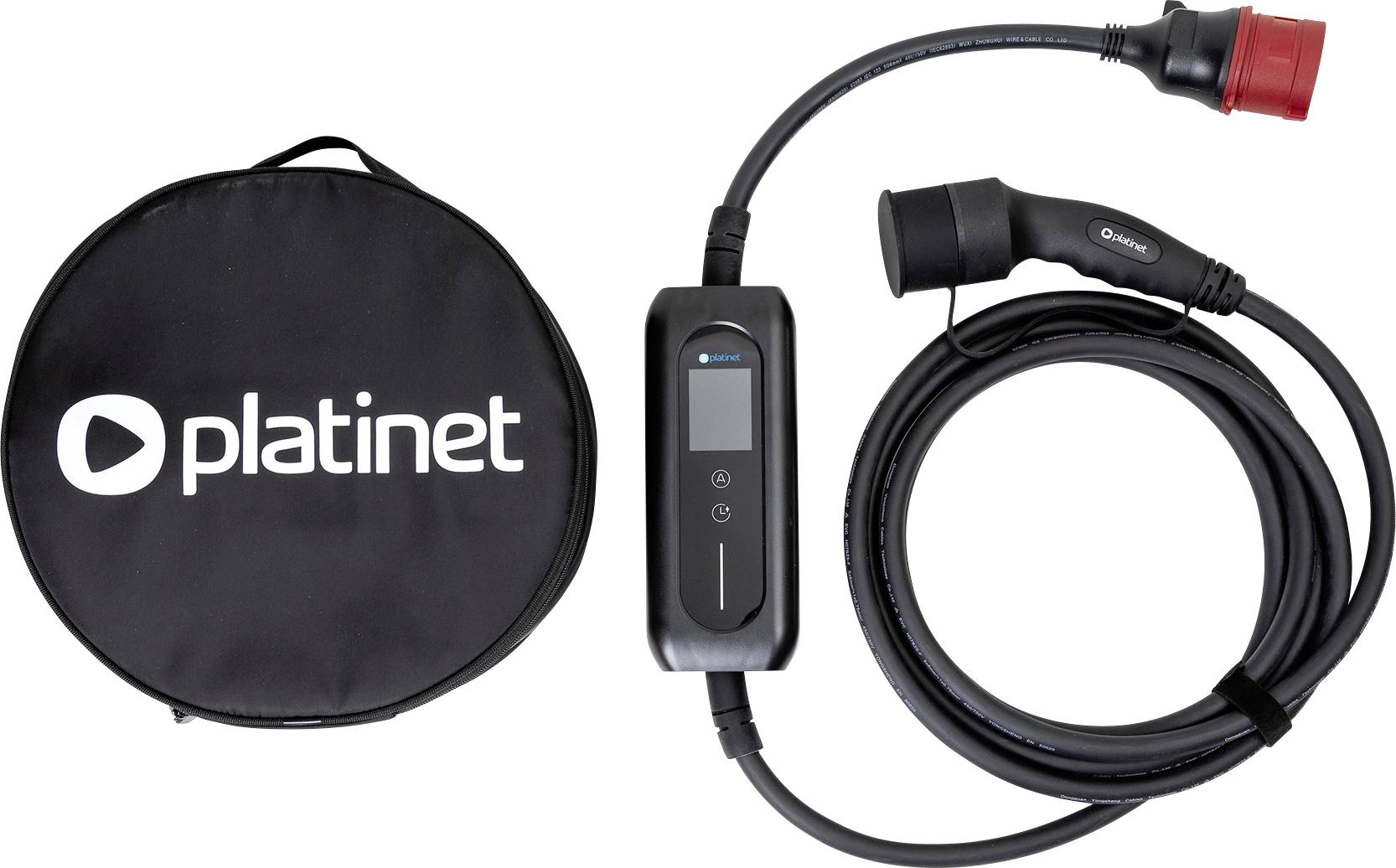

'Platinet' electric car charger with display and coiled black cable next to a round carrying case.

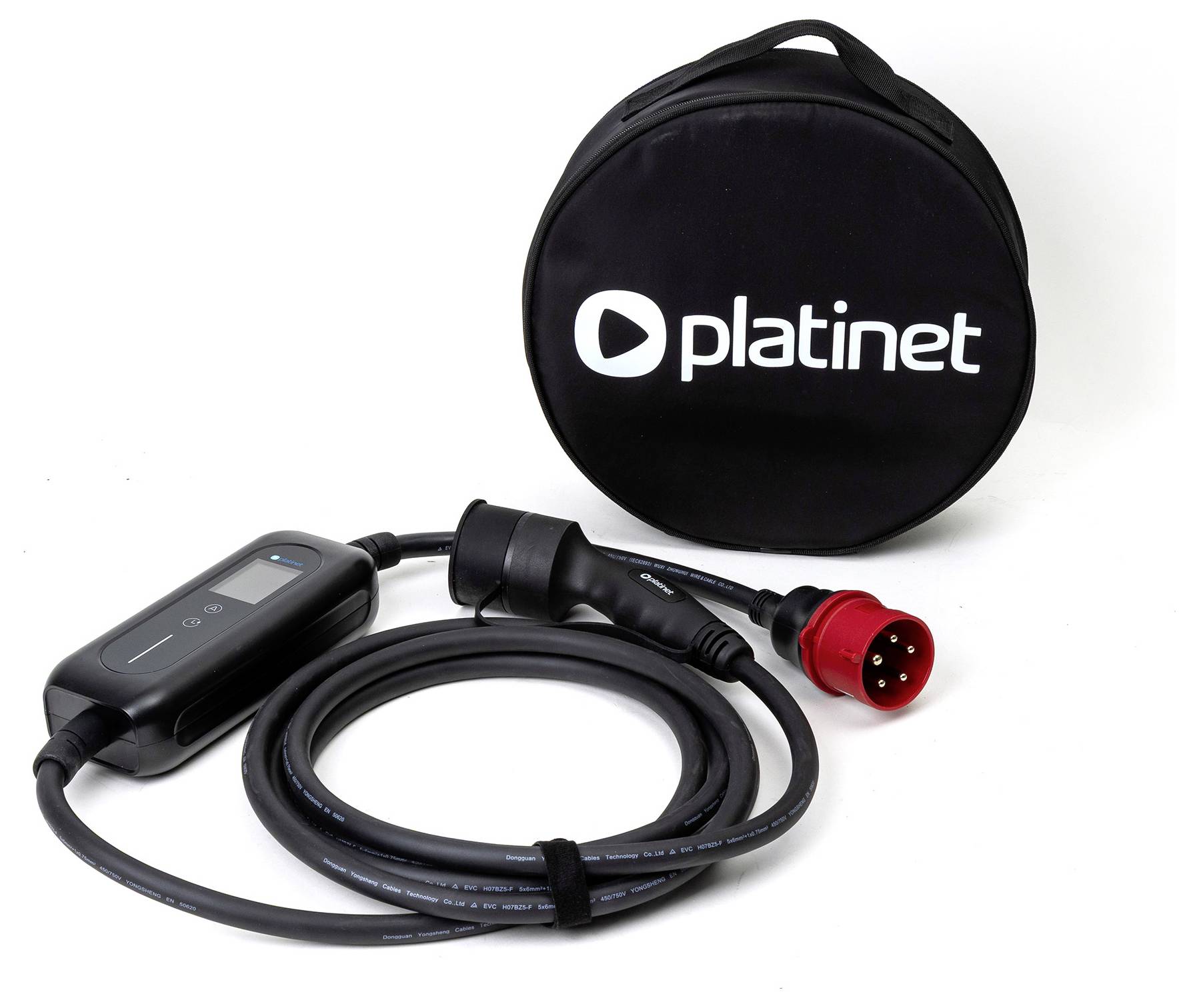

Portable electric vehicle charging cable with control box and red plug, placed beside a round carrying case labeled 'platinet'.

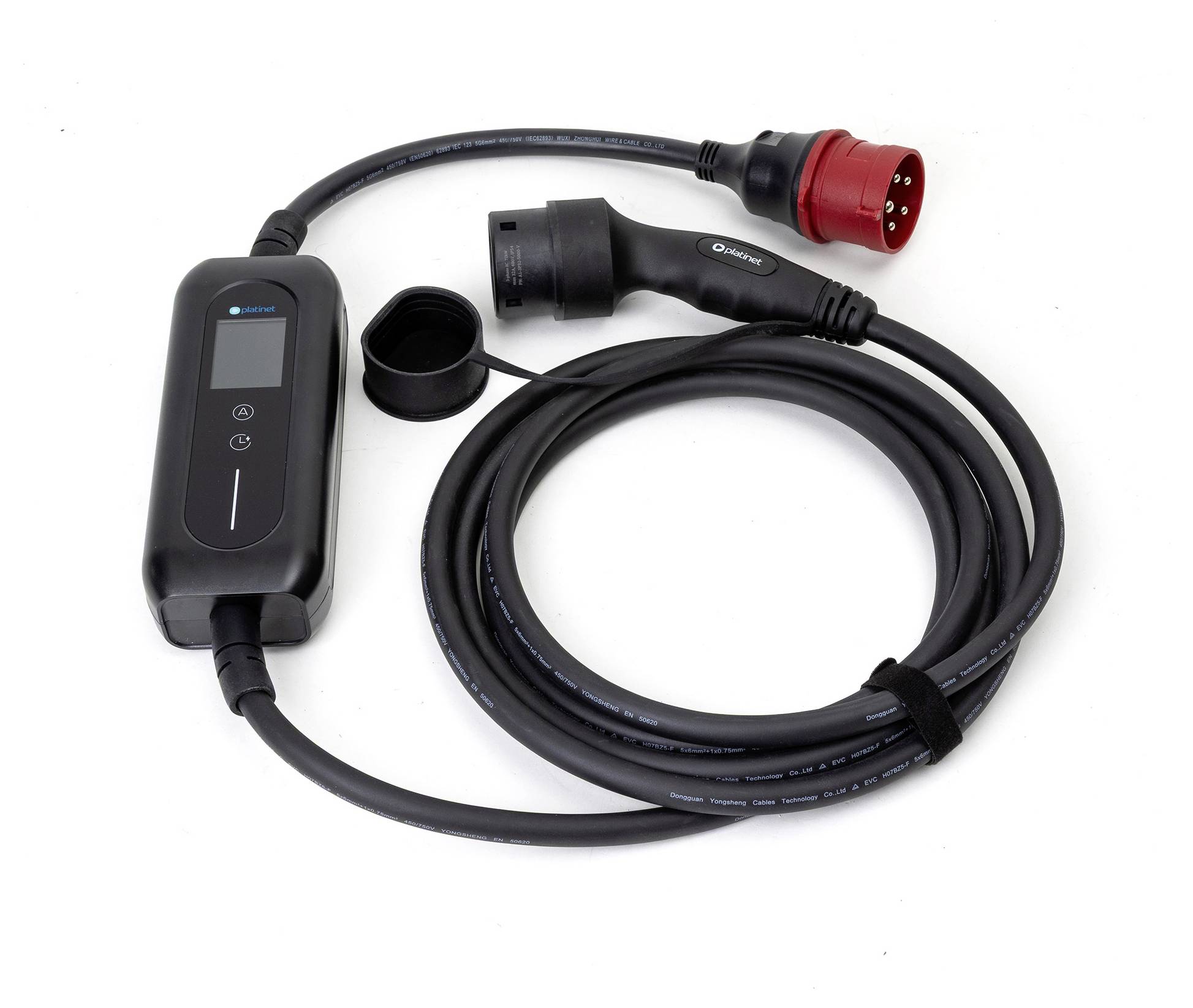

'An electric vehicle charging cable with a red plug, digital display, and coiled black cord.'

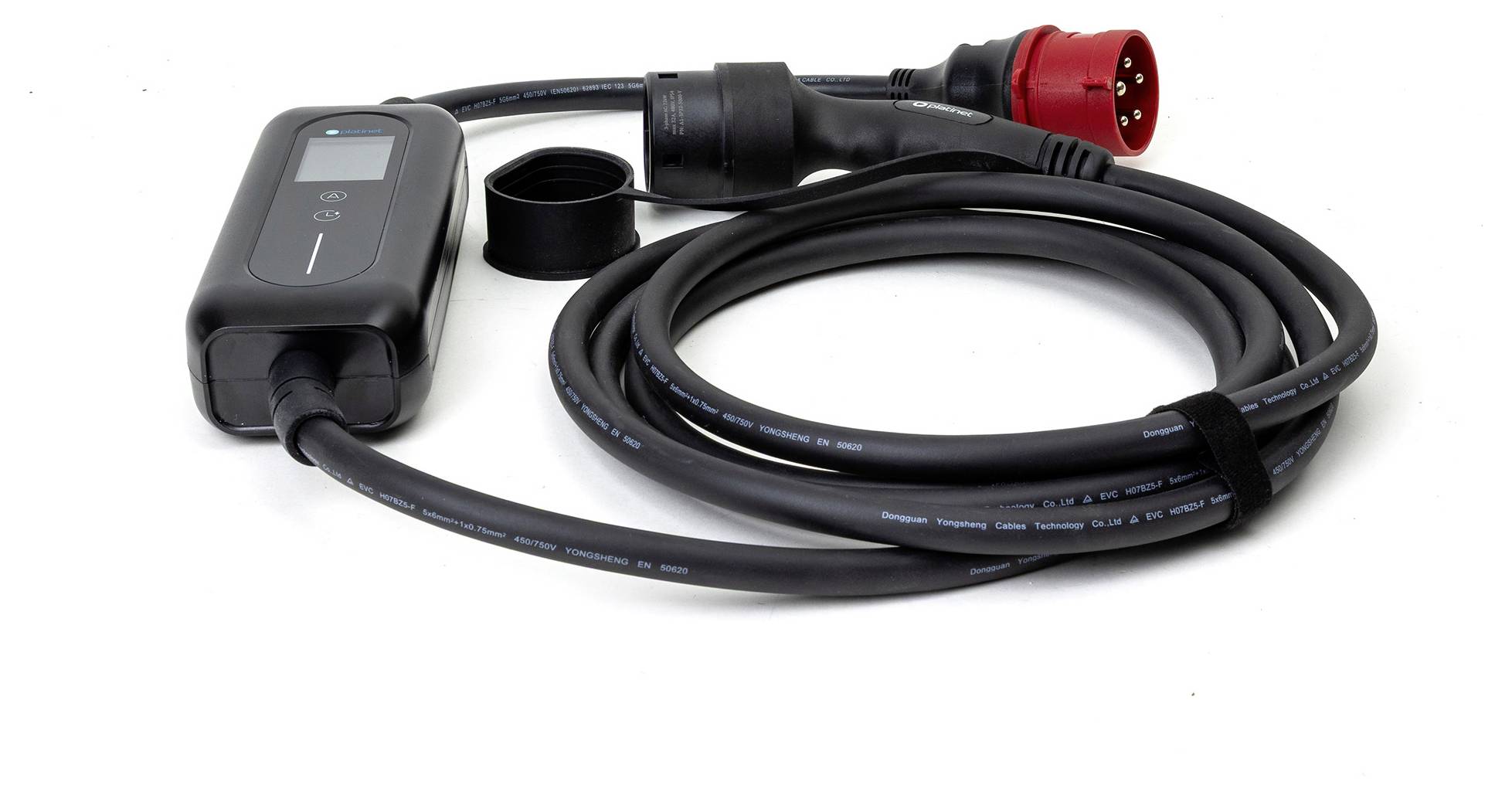

'Black charging cable and control box with a red plug for electric vehicles, displaying the connector, coiled cable, and remote control.'

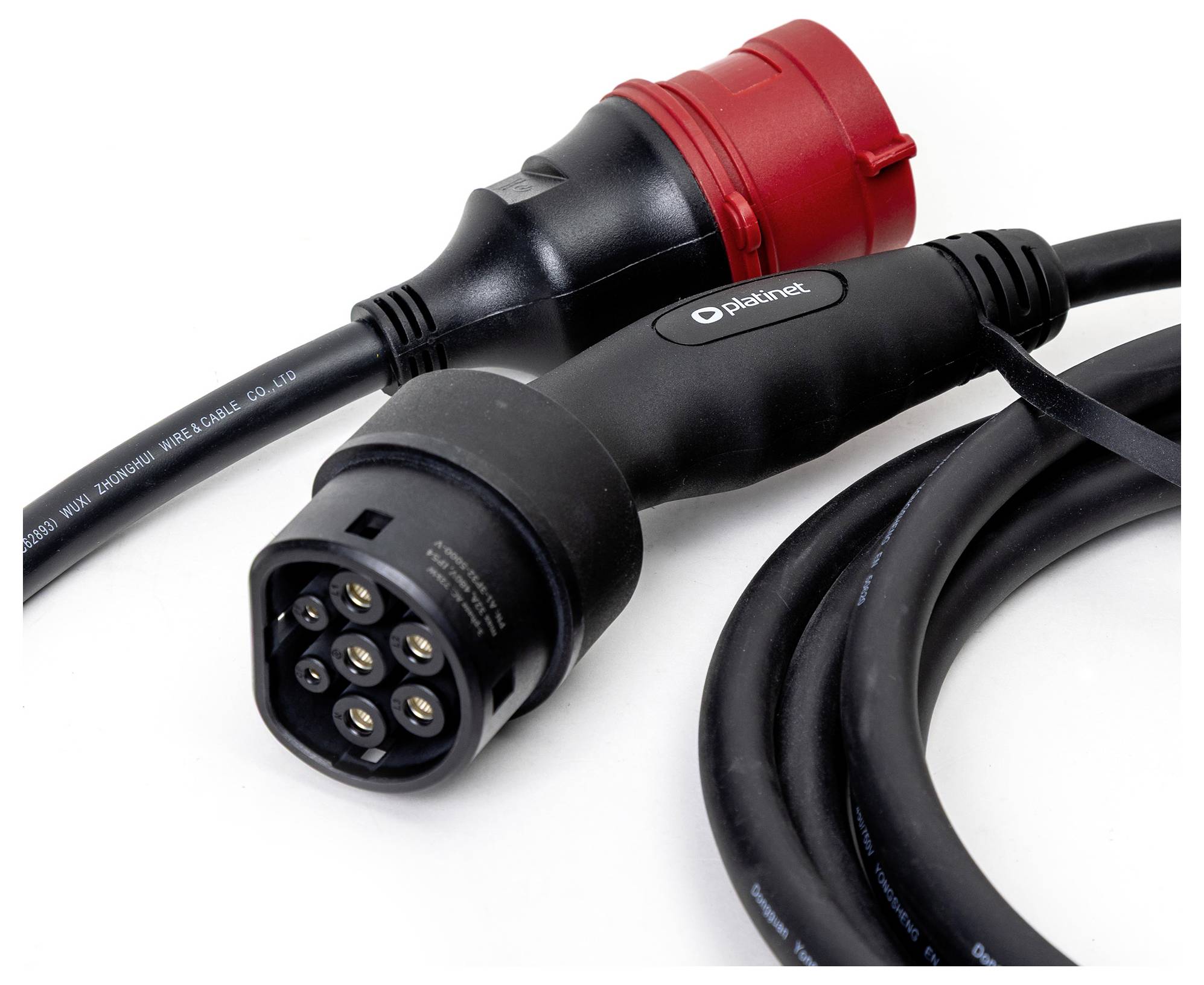

Close-up of two circular electrical plugs with multiple metal pins, one black and labeled 'ChargeNet' and one red.

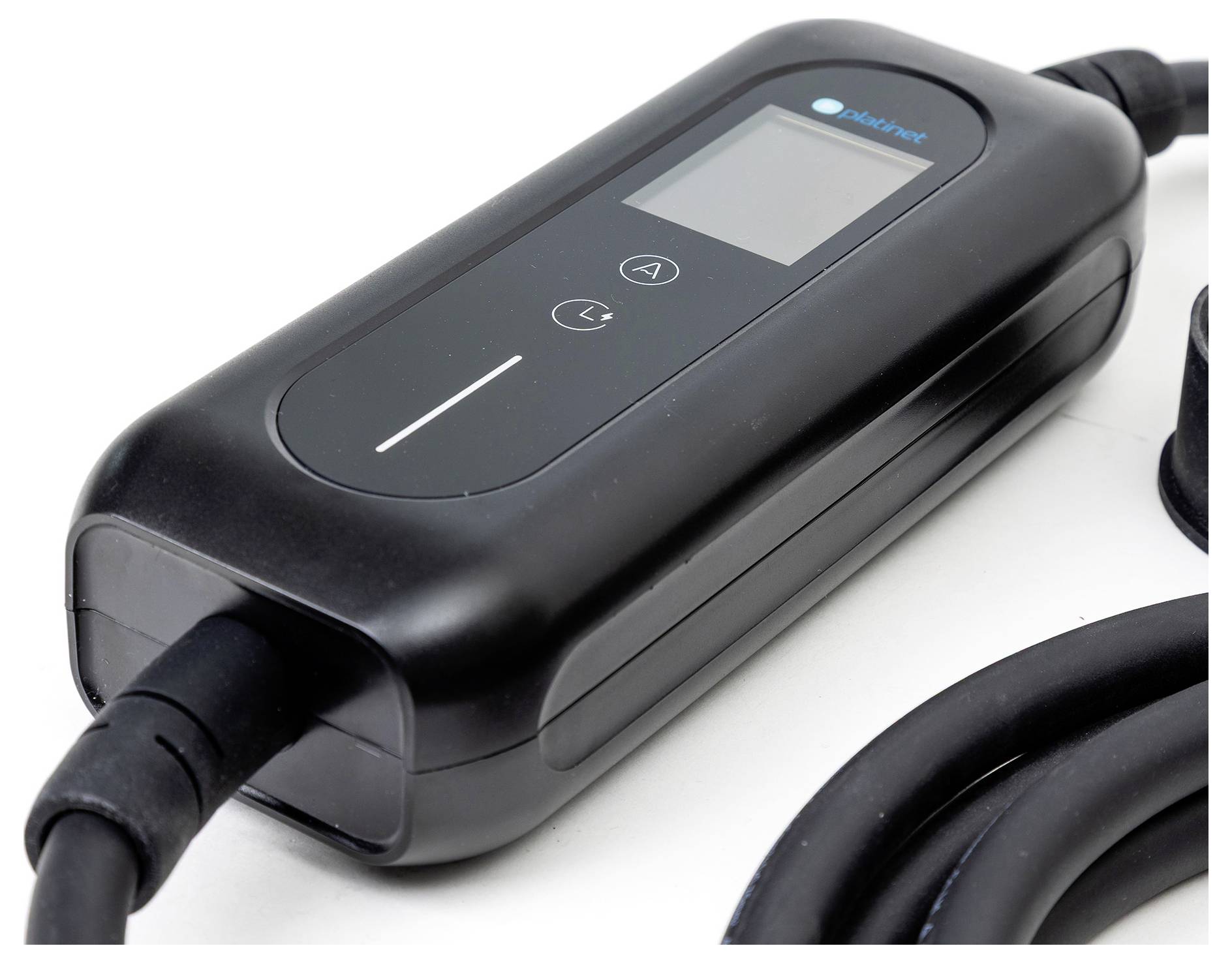

A black electronic device with a digital screen and buttons, connected to a thick cable, possibly used for charging or power control.

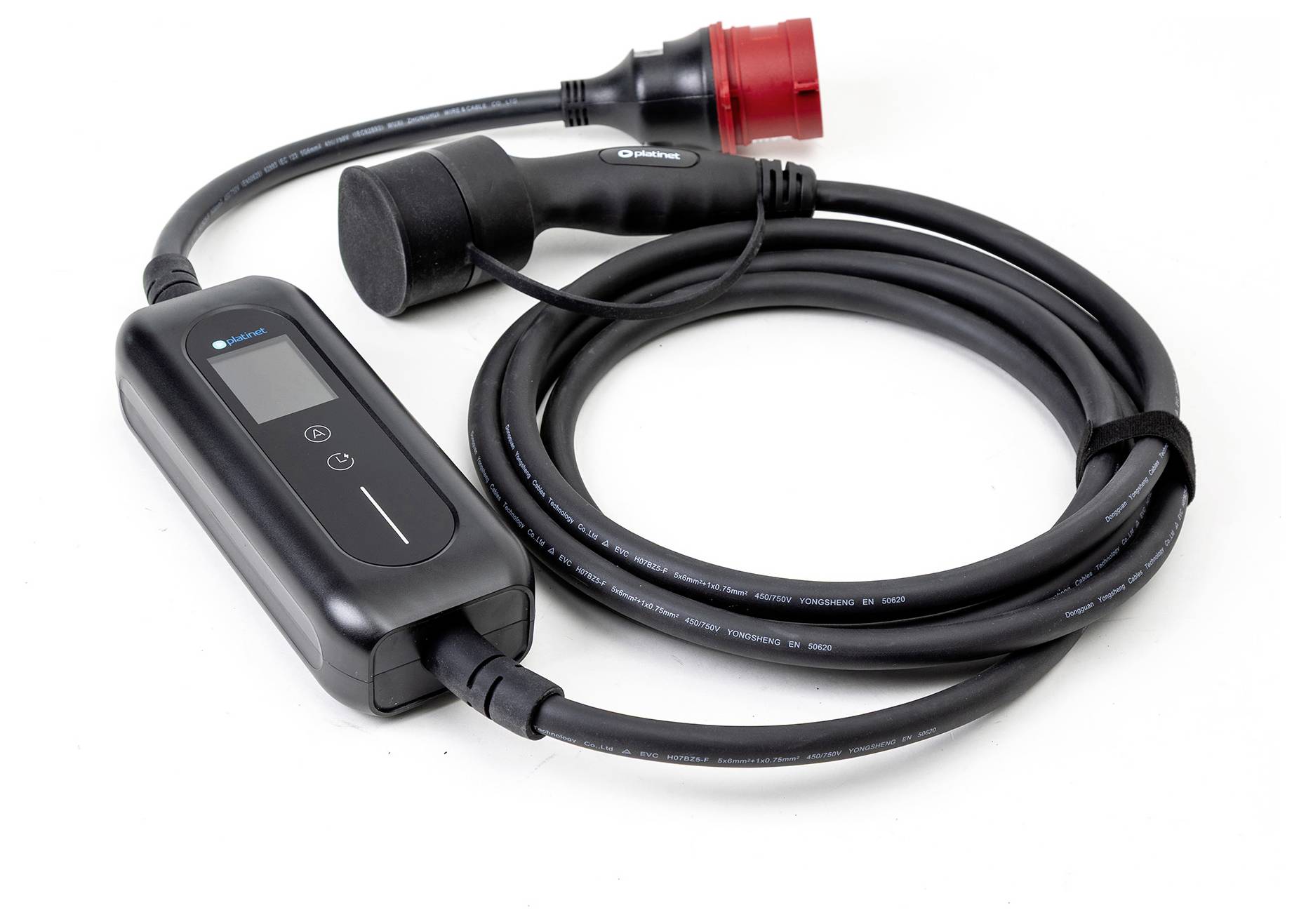

An EV charging cable with a digital display on the control box and a red plug, coiled neatly, used for electric vehicle charging.

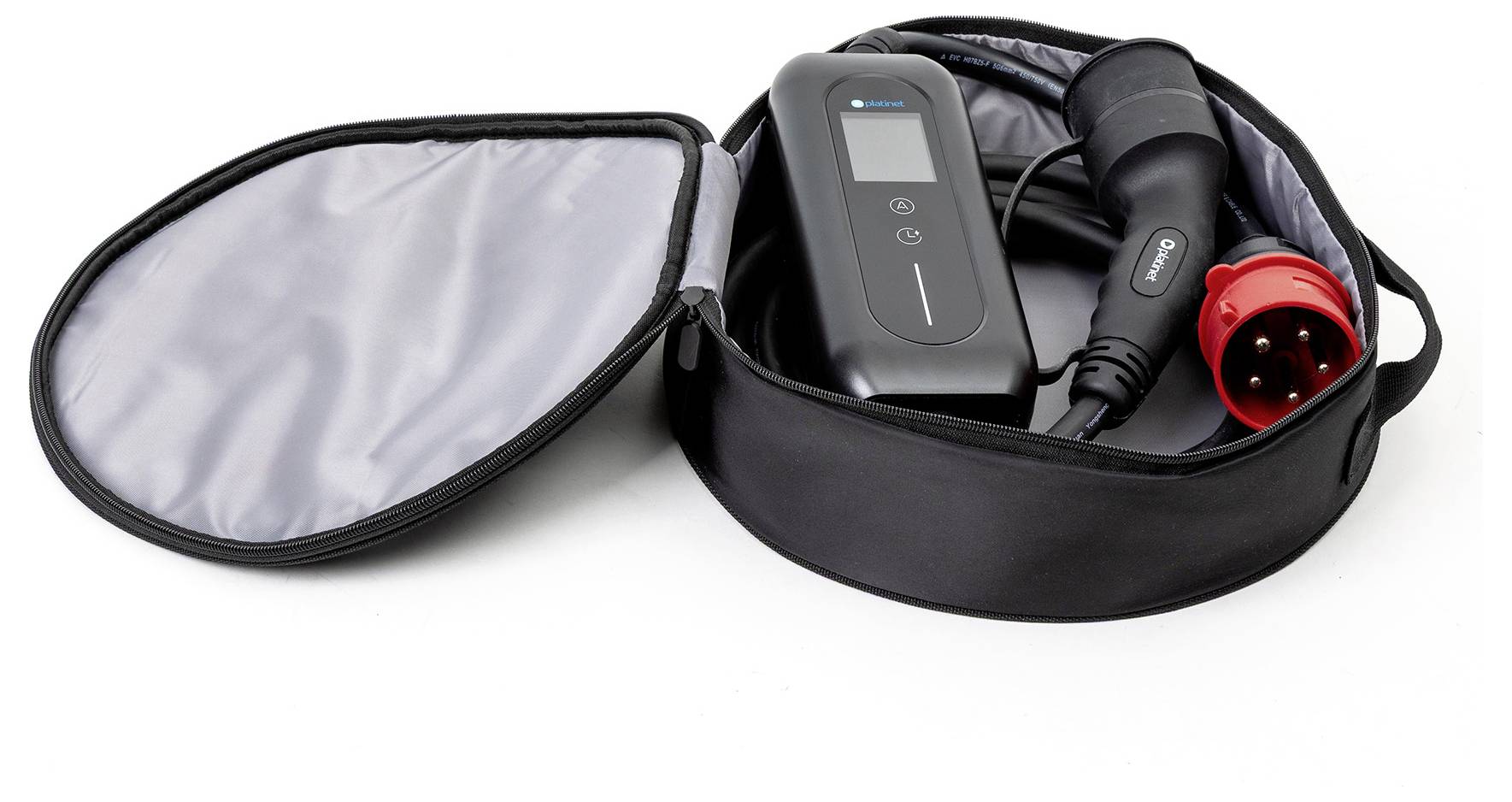

A black portable charger with a cable and plug housed in a compact circular carrying case, suitable for electric vehicles.

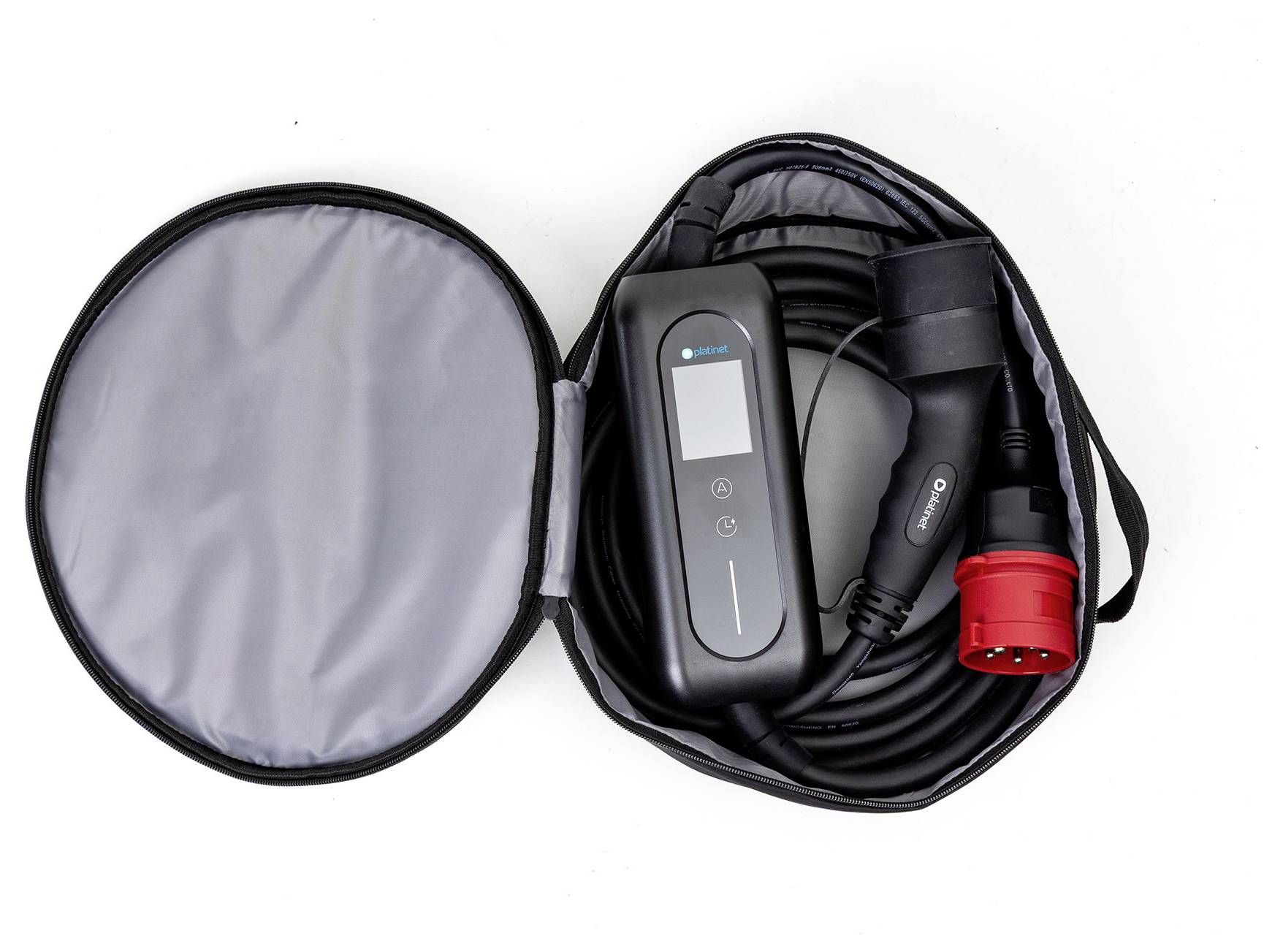

A portable electric vehicle charger with a control box and cable, stored in a circular carrying case with an open lid.

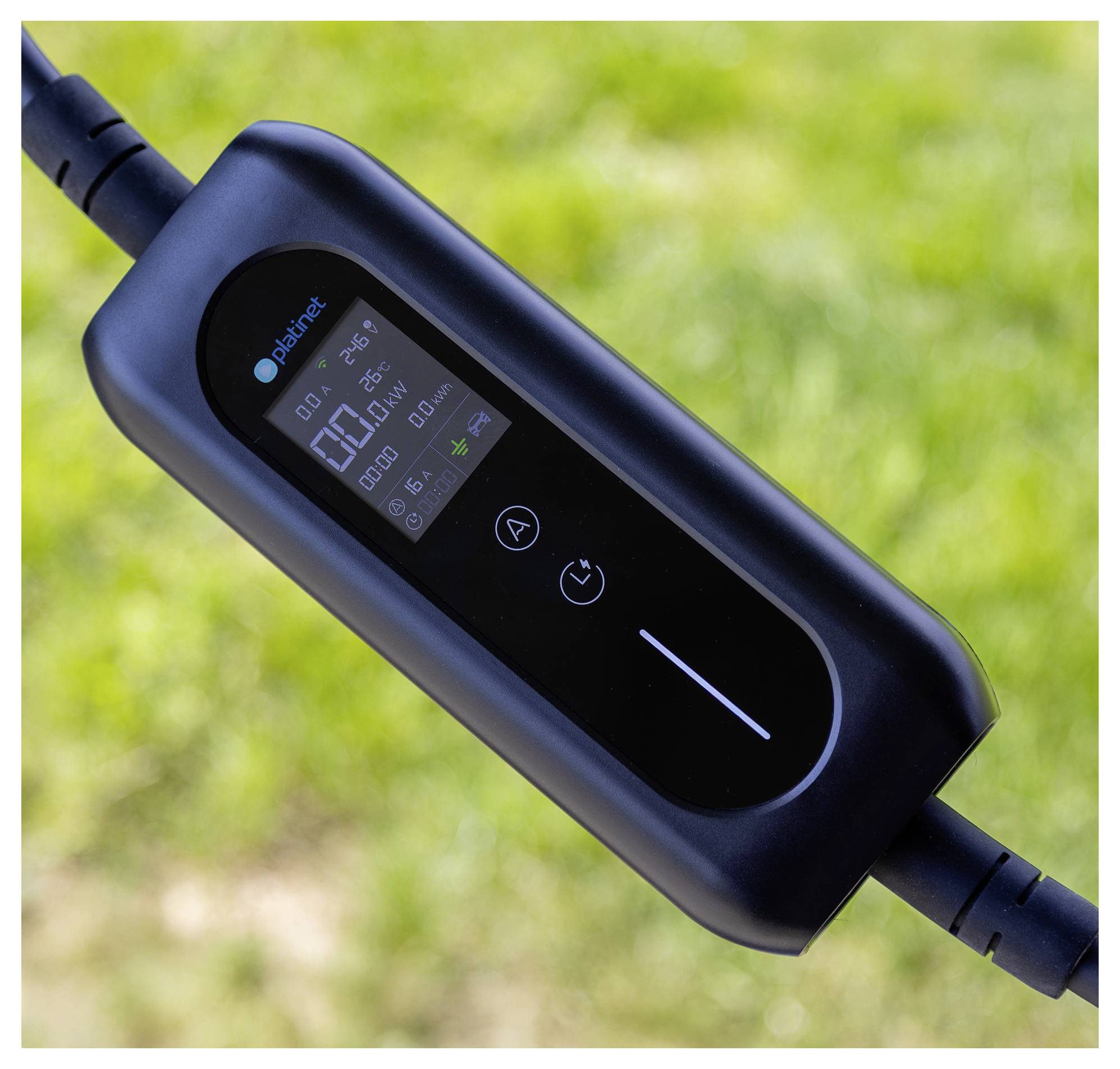

A close-up of a black electronic display showing charging status and settings against a blurred grass background.

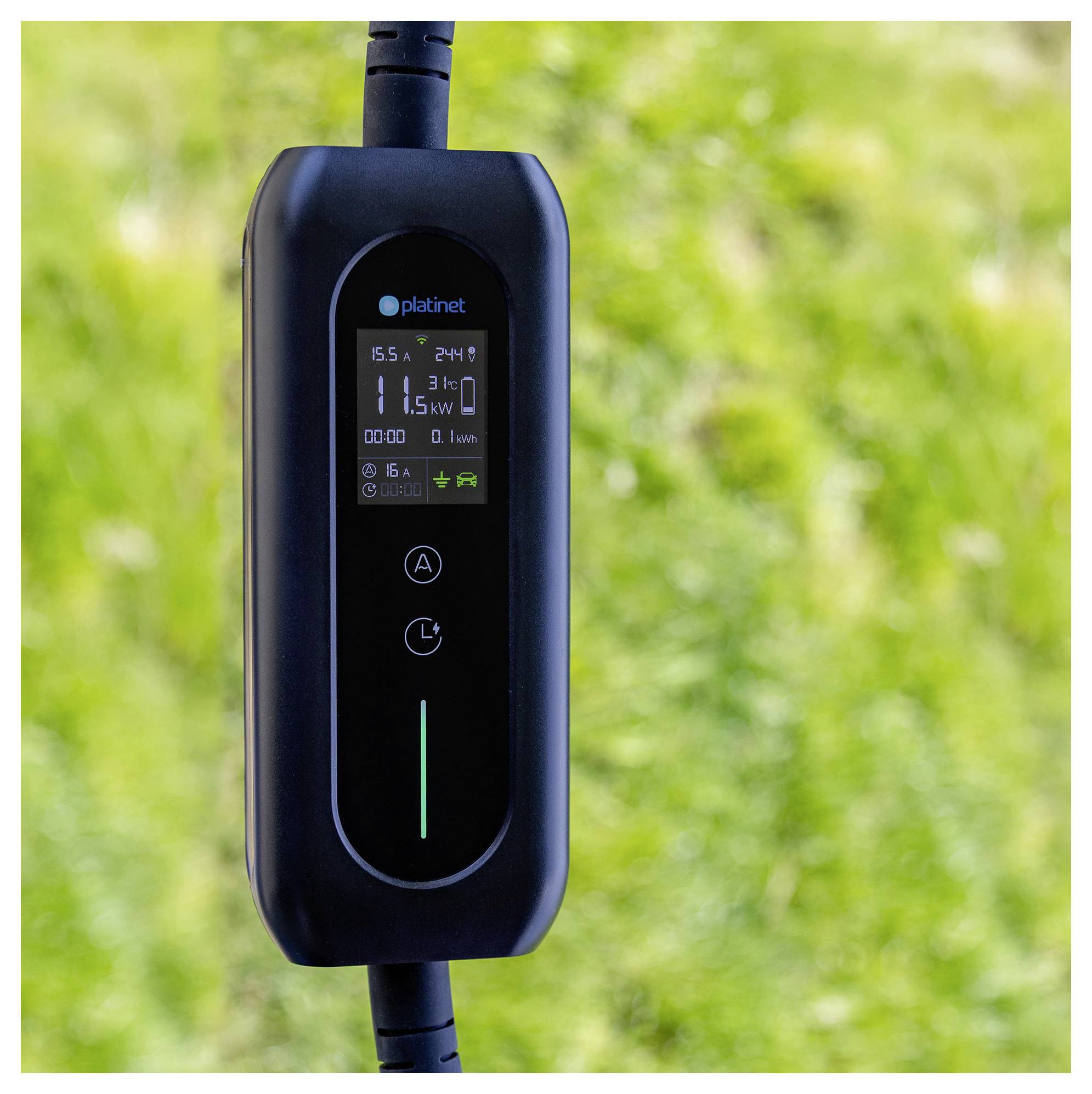

A black portable electric vehicle charger with a digital display showing voltage, current, and temperature settings, hanging outdoors.

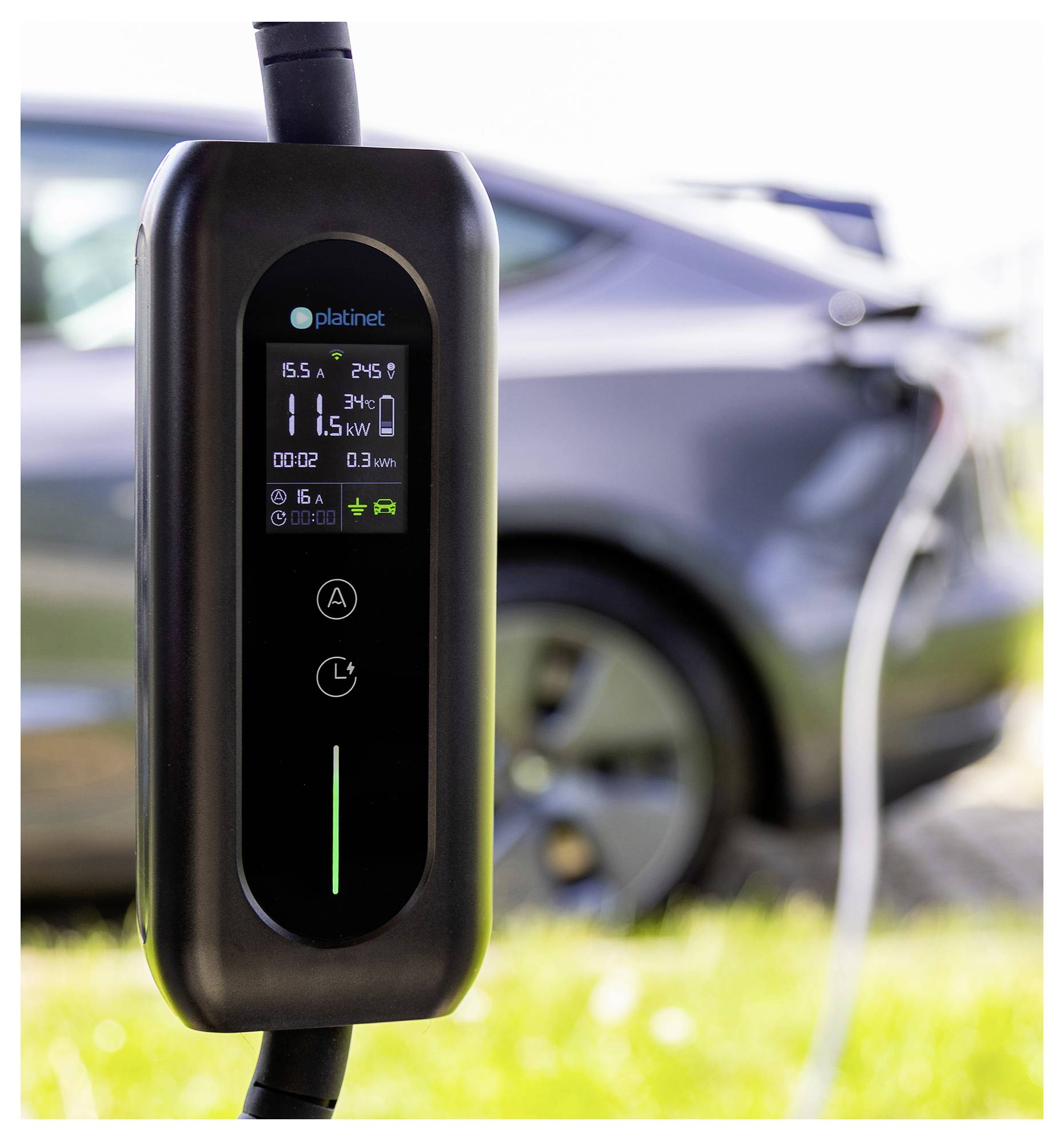

An electric car is plugged into a charging station outdoors. The display shows charging status: 15.5A, 1.35kW, and 002 kWh used.

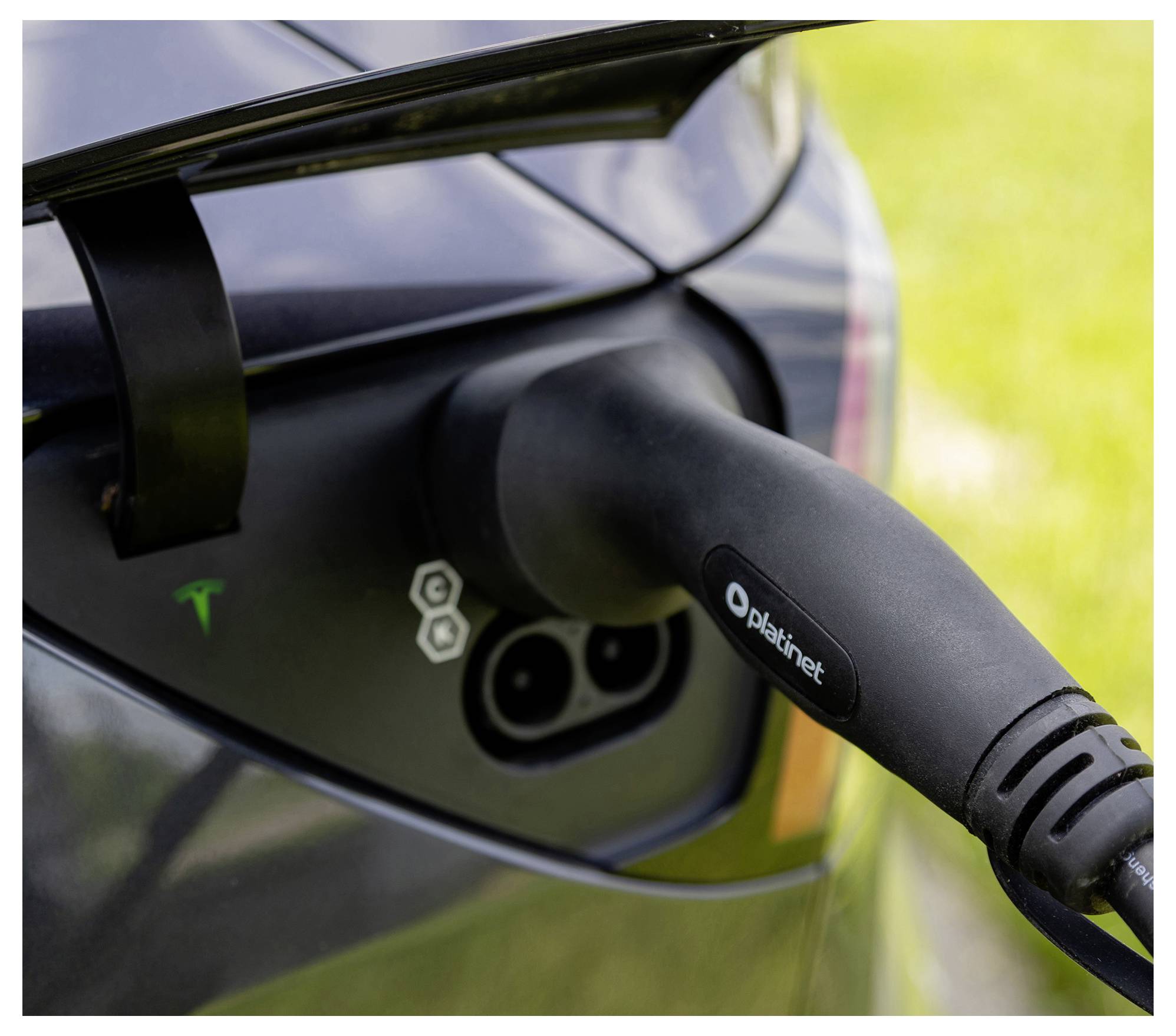

An electric car is charging, with the plug connected to the vehicle's charging port, outdoors on a sunny day.

1/13

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 459.00 / piece)

€ 459.00

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Platinet EV_PPCW5M22 - 22 KW e-car charger cable with WiFi and Tuya

Robust design: Has an IP66-certified control box and is thus well protected against dust and water.
Reliable relay: Has a high-quality relay, which is designed for long-life and constant power
Remote monitoring: Check the charging status via Wi-Fi.
Controlling from anywhere: Start or stop the charging process via the mobile APP.
Bluetooth: Local control without WLAN.

Technical specifications

Standard Euro-plug (red CEE) 3-phase
Residual current protection: Type B, AC 30mA + DC 6mA
Conductor cross-sections: 5x6 mm2 + 1×0.75 mm2 (external diameter: O16.2 mm)
Communication: Wi-Fi and Bluetooth
Tuya Smart (iOS and Android)

Product type: eMobility charging cable

Type A: CEE 32 A

Type B: Type 2 (IEC 62196-2) plug

No. of phases: 3-phase

Charging mode: Mode 2

Cable length: 5 m

Nominal voltage: 230 V

Nominal current: 32 A

Nominal current - rounded value: 32 A

: IP66
IP54
IP44

Min. temperature: -25 °C

Max. temperature: +45 °C

Charging capacity: 22 kW

Charging current: 32 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3532956 Platinet 46233 eMobility charging cable 5 m

Description

Informative LCD screen—displays all relevant charging information for easy monitoring.
Flexible settings: Allows you to adjust current settings and schedule charge sessions directly from the screen.
Fault current protection type B for AC [30 mA] and DC [6 mA] Leakage current.
Overcurrent monitoring: Automatically monitors and engages when the current exceeds the preset value by 20% or 2 A.
Voltage monitoring: Alarm and protection against overvoltage [greater than 270 V] and undervoltage [less than 80 V].
Ground-fault protection: Alarm and protection for unearthed sockets.
Temperature monitoring: Overheating alarm and protection at 80°C for the control box.
Diode test: Built-in CP diode integrity check for safe charging.
Pinking relay solution: Monitors relay for any terminals to prevent potential safety hazards.
