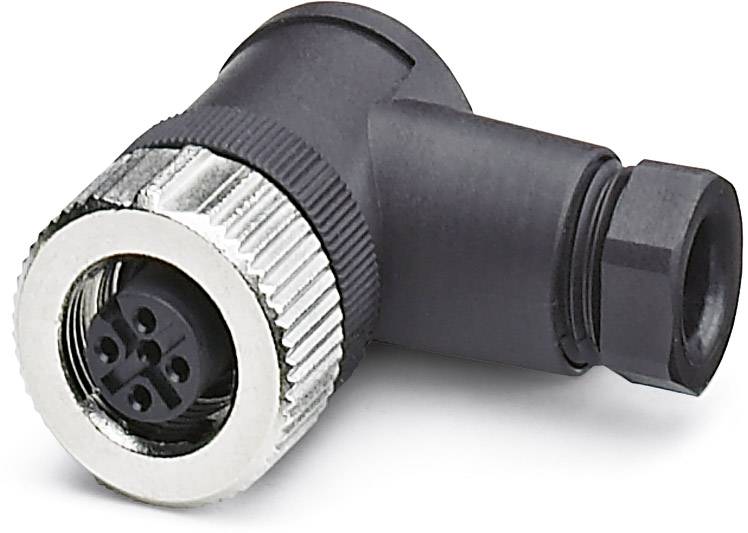

Plug-in connector SACC-FR-5CON-PG 7-M SCO 1543061 Phoenix Contact
Product type
Sensor/actuator connector
Connector type
Socket, right angle
Connector standard
Sensor connector
Connection side A
M12 socket, right angle
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 21.99 / piece)
€ 21.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
#####Dose
- Type
SACC-FR-5CON-PG 7-M SCO
- Product type
Sensor/actuator connector
- Connector type
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
M12 socket, right angle
- Connection side B
Customisable
- No. of pins
5
- Nominal voltage
48 V AC
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Connection
Screw terminal
- Thread type connection side
M12
- Thread type (wiring and installation)
PG7
- Coding
A
IP67
- Features
A-coded
- Seal type
Screw-on
- Manufacturer part #
1543061
- Content
1 pc(s)
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 6 mm
Other
48 V
FALSE
Other
Other
Other
85-85 °C
HB
Screw connection
Other
II
3
Angled
0.75-0.75 mm²
FALSE
4 A
100
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 715482 Plug-in connector SACC-FR-5CON-PG 7-M SCO 1543061 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715482 Plug-in connector SACC-FR-5CON-PG 7-M SCO 1543061 Phoenix Contact
Description
Sensor/actuator connector, female, angled, 5-pos., M12 SPEEDCON, A-coded, screw connection, metal knurl, cable screw connection Pg7
