Image similar

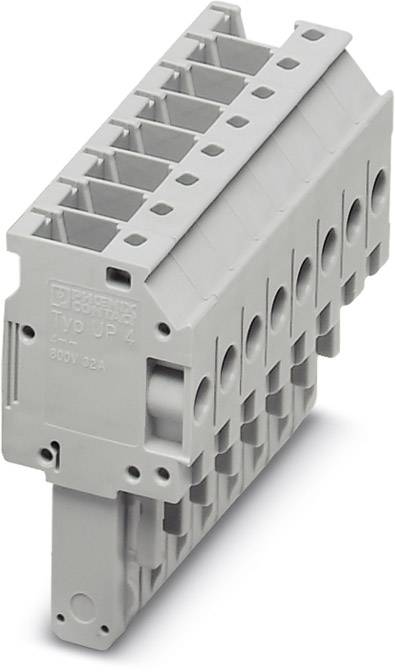

Plug UP 4/ 8 3060186 Phoenix Contact
Packaging type
Piece
Factory colour
Grey
AWG max.
10
AWG (min.)
26
Stripping length (max.)
9 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 25 pc(s))
Total (€ 11.80 / piece)
€ 295.00
incl. VAT
Only 1 Set(s) available
Highlights & Details
Plug UP 4/ 8
- UP 4 / 8
- Industrial packaging, pack of 25
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Factory colour
Grey
- AWG max.
10
- AWG (min.)
26
- Stripping length (max.)
9 mm
- Connector colour
Grey
- Manufacturer part #
3060186
- Industrial packaging
Yes
- Content
25 pc(s)
- Clamp width
49.2 mm
- Nominal voltage
800 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Number of pins
8
- Width
6.20 mm
- Type
UP 4/ 8
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Insulation class
I
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566138 Plug UP 4/ 8 3060186 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566138 Plug UP 4/ 8 3060186 Phoenix Contact
Description
Plug, Connection method: Screw connection, Number of positions: 8, Cross section: 0.14 mm² - 6 mm², AWG: 24 - 10, Width: 49.6 mm, Height: 41.2 mm, Color: gray
