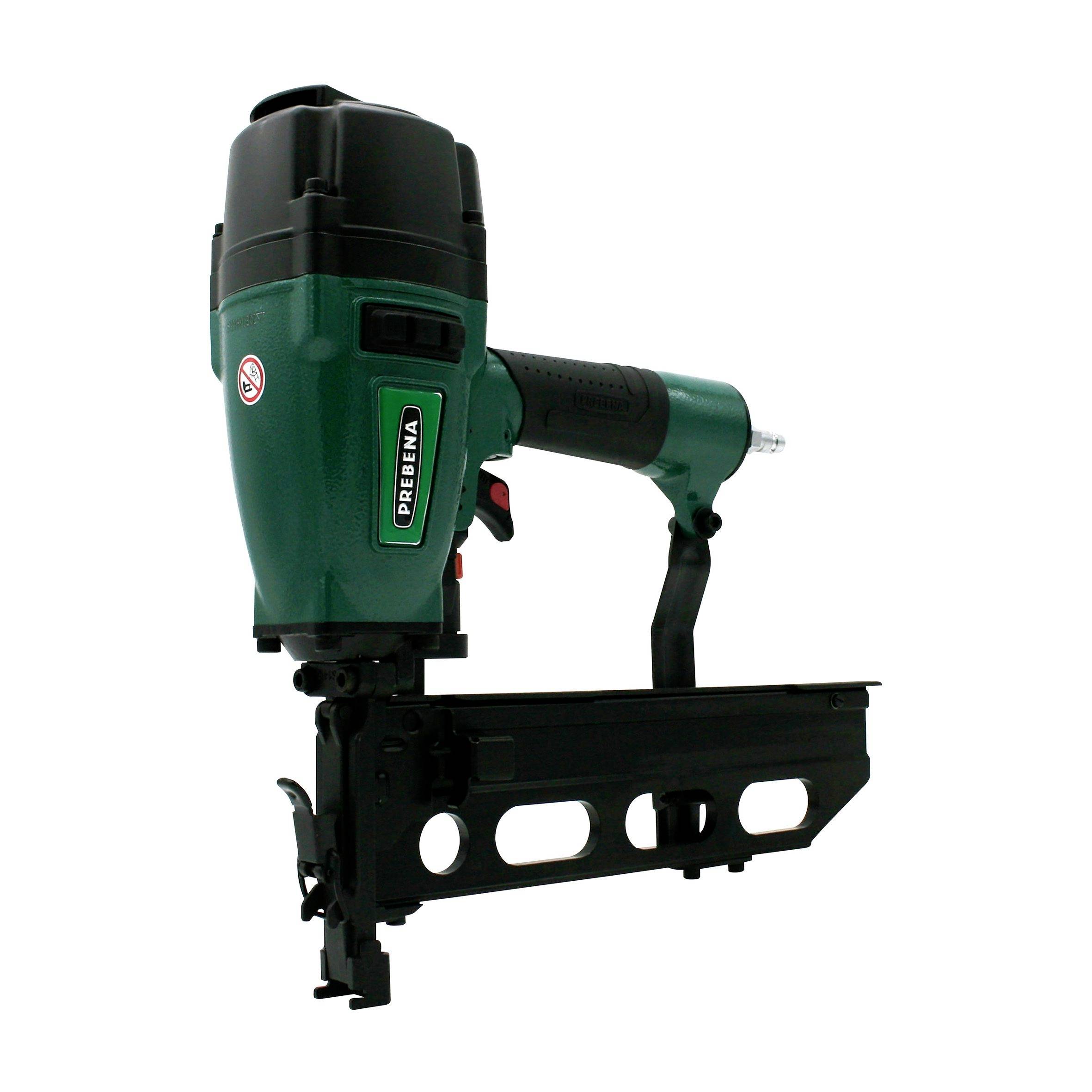

Prebena 5C-Z75 Pneumatic nail gun 8 bar

1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 13 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 595.00 / piece)
€ 595.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Technical specifications

  • Operating pressure (bar): 5.0 - 8.0
  • Mounting material type: Staples
  • Areas of application: Windows / doors, substructures, chipboard / OSB, plasterboard, gypsum fiberboards, Saving formwork, roofing felt/bitumen, boxes, cardboard palettes
  • Individual shot trigger: Yes
  • Trigger protection: Yes
  • Top-loader magazine: Yes
  • Length (mm span) 35 - 75
  • Powder-coated
  • Splash-proof: Yes
  • Anti-skid handle: Yes
  • High service life: Yes
  • Light design: Yes
  • Mounting material type Z
  • Adjustable exhaust air: Yes
  • Depth setting: Yes
  • Quick-release lock of the tool: Yes
  • Tool lock - without tools to open: Yes
  • Amplified driver: Yes
  • Rubberised device protection: Yes
Product type

Pneumatic nail gun

Max. operating pressure

8 bar

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3778502 Prebena 5C-Z75 Pneumatic nail gun 8 bar

User & Safety Instructions

User & Safety Instructions 3778502 Prebena 5C-Z75 Pneumatic nail gun 8 bar

Conformity certificate

Conformity certificate 3778502 Prebena 5C-Z75 Pneumatic nail gun 8 bar

Description

The powerful professional engineer by Prebena is suitable for a wide range of applications! The 5C-Z75 processes Z-type staples in 35-75 mm lengths and 11.2 mm width. This air nail is already fitted with various useful extras as standard: It has a freely adjustable depth setting as well as an adjustment wheel integrated on the release lever, in order to select between individual and contact release. The exhaust air can be adjusted individually by simple rotation and the release lock prevents accidental actuation of the nail. A special highlight is certainly the quick release fastener located directly at the tool, with which clamping can be removed with just a few simple steps. Especially in interior fittings the device comes often used the whole day. In order to optimally exhaust the service life, the 5C-Z75 is fitted with a reinforced driver and has a rubberized casing protection.

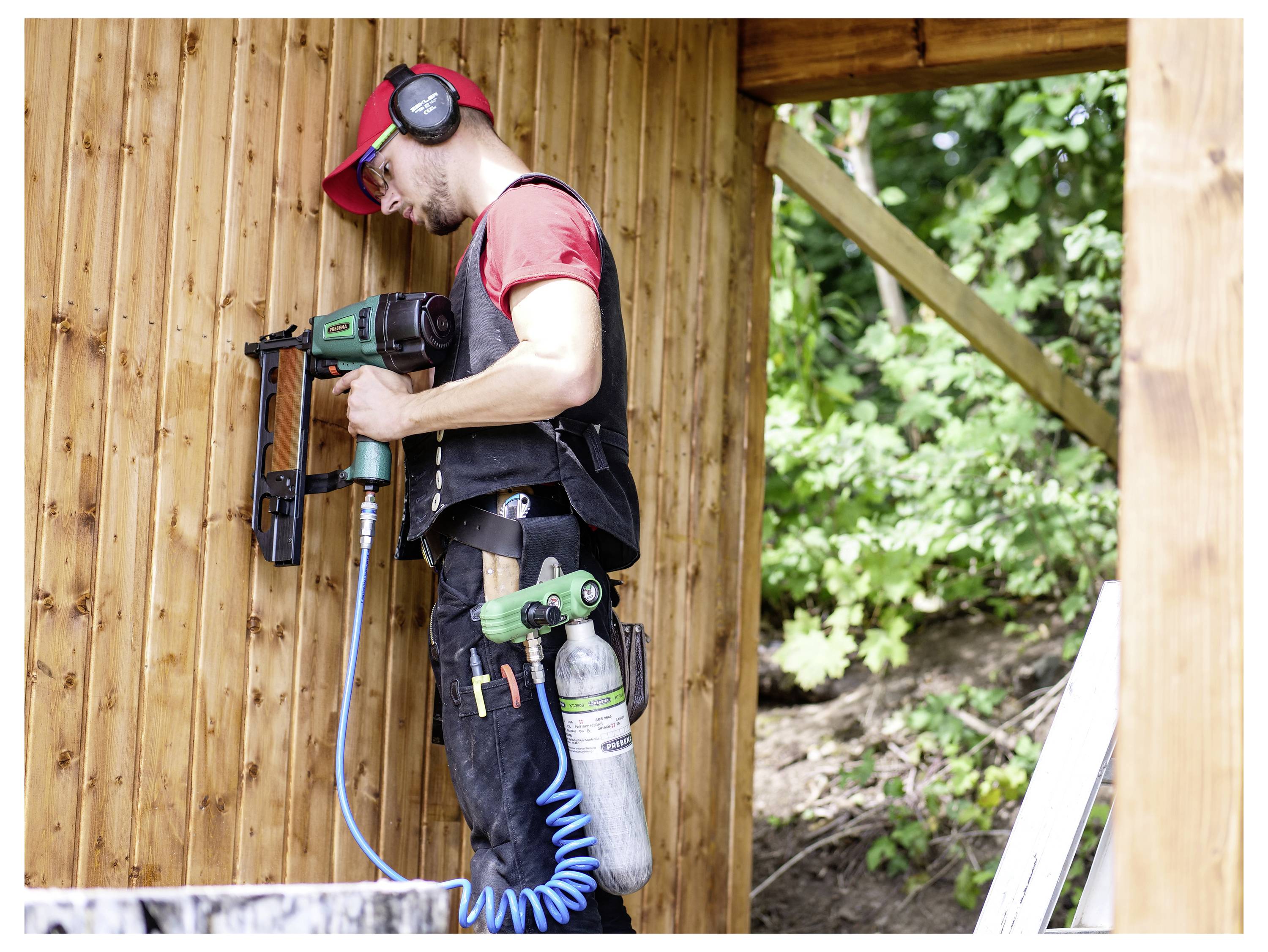

The application areas of this versatile compressed air nail extend from the fixing of Fermacell, plasterboard and particleboard to sub-structures, savings formwork and even bitumen shingles. The fast shot sequence is often decisive for this device, so that the 5C-Z75 is also frequently used in the packaging sector, for example for cardboard pallets and boxes. The reliability of this professional device is so convincing even with fast shot sequence that it is recommended by leading system manufacturers such as AGEPAN, SWISS KRONO, XELLA and FERMACELL!
The Z-clamps to be processed in this air pressure nail are subject to the most stringent quality requirements and conform to Eurocode 5 or DIN EN14592. For the highly galvanized (CSVHA) and the stainless steel clamps in 1.4301 (CRFHA) Prebena has ETA certification for all wire thicknesses. As an innovative manufacturer, Prebena produces the ETA clamps on its own wire-tape systems exclusively in Germany, in order to guarantee the high certification requirements. Device processes staples of type Z from 35 - 75 mm length.

This text is machine translated.
