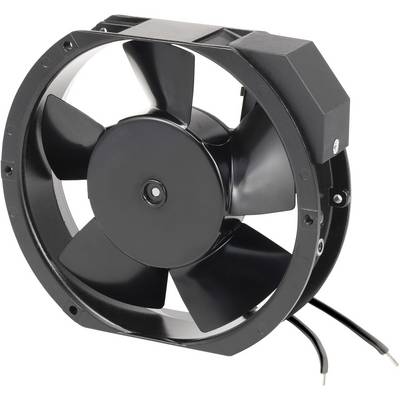

PROFAN Technology P2173HBL-ETS Axial fan 230 V AC 348 m³/h (L x W x H) 172 x 150 x 38 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
24 W
Type of bearing
Ball bearing
Air flow rate
348 m³/h
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Technical specifications
- Material (rotor): Steel
- Product type
Axial fan
- Type
P2173HBL-ETS
- Nominal voltage
230 V AC
- Min. operating voltage
150 V AC
- Max. operating voltage
250 V AC
- Operating voltage
150 - 250 V AC
- Max. current consumption
100 mA
24 W
- Type of bearing
Ball bearing
- Rotational speed
2750 U/min
- Noise emission (max.)
54 dB
- Air flow rate
348 m³/h
- Connection
Open end cable
- Cable length
28.00 cm
- Factory colour
Black
- Material
Aluminium (die-cast)
20000 h
- Weight
800 g
- Min. temperature
+70 °C
- Max. temperature
-10 °C
- Length
172 mm
- Width
150 mm
- Height
38 mm
- Dim
(L x W x H) 172 x 150 x 38 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1503220 PROFAN Technology P2173HBL-ETS Axial fan 230 V AC 348 m³/h (L x W x H) 172 x 150 x 38 mm
Description
Hints
Indications at 50 Hz.
