Protector Corded discharged air control AS4020 2200 W White
EAN:
Part number:
Item no:
Number
Total (€ 40.99 / piece)
€ 40.99
incl. VAT
14-day return policy included
Highlights & Details
Universal-Flow control
- Switches devices on or off optionally in case of open or closed doors/windows
- Saves energy costs
- Ready to plug including 6m sensor cable
- Incl. child protection
Technical specifications
- Product type
Corded discharged air control
- Switch contact
N/C
N/O
- Operating voltage
230 V / AC
- RCD safety plug
No
2200 W
- Safety switch (W x H x D)
130 x 100 x 60 mm
- Factory colour
White
- Cable length
6 m
- Type
Cable connected
- Max. nominal current
10 A
- Switch contact
Normally-closed and normally-open
- Switching capacity
2200 W
- Operating voltage
230 V/50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 560334 Protector Corded discharged air control AS4020 2200 W White
Description
One can use the device also for air conditions, fans and fan heater as well as for the similar consumption of firing installation and extractor hood. Firstly when the window / door is closed, the Flow control gives the flow e.g. for the fan heater. With the help of the connection to lamp, further application possibilities are created for roller shutter or signalling device to inform on open doors or windows.

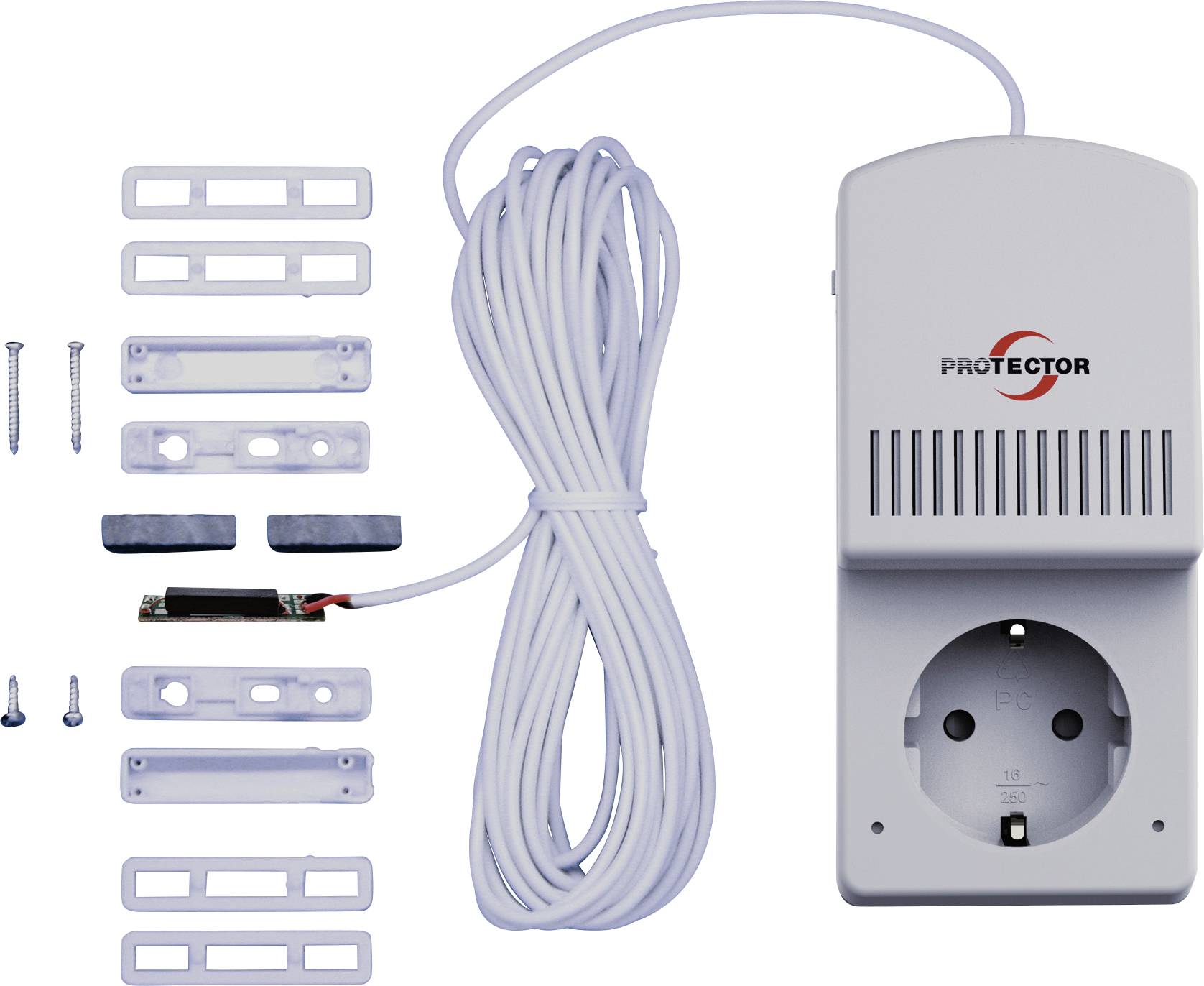

Scope of delivery
- Incl. 6 m sensor cable with magnet contact.
