Protector Wireless discharged air control AS-7030 Comfort 1800 W White Certification (discharged air control): DIBt

1/2
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct

35 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 199.99 / piece)
€ 199.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Extractor Radio Control AS-7030 Comfort

  • 2 radio transmitters for windows and flue pipe
  • Avoids unnecessary continuous ventilation
  • Safeguard including main switch for earthing contact and euro plug

Technical specifications

  • Dim. Thermo transmitter: 48 x 120 x 22 mm
  • Frequency: 868 MHz
  • Radio range (free field): 50 m
Product type

Wireless discharged air control

Switch contact

Switch

Operating voltage

230 V / AC

RCD safety plug

Yes

Certification

DIBt

1800 W

Safety switch (W x H x D)

62 x 141 x 90 mm

Transmitter dimensions

70 x 30 x 22 mm

Factory colour

White

Cable length

Thermosensor - 2 m

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1590117 Protector Wireless discharged air control AS-7030 Comfort 1800 W White Certification (discharged air control): DIBt

Certificate

Certificate 1590117 Protector Wireless discharged air control AS-7030 Comfort 1800 W White Certification (discharged air control): DIBt

Description

During operation of cooker hoods or extraction fans, smoke or exhaust from open chimneys, ovens and gas heaters can be drawn back into the room. This can lead to potentially fatal poisoning caused by the odourless and invisible gases carbon monoxide and carbon dioxide. For this reason, according to the furnace regulations M-FeuVO§4, simultaneous operation of a fireplace and an air-suction plant is only permitted if there is provision of an adequate supply of fresh air, e.g. from an open window. And our wireless exhaust control takes over this monitoring function for you. Because the socket control device will only enable the voltage for the connected fume hood if the window is open. The switch state of the window sensor is transmitted to the control unit by radio. If your window or door is a little further away from the ventilation system, or you do not want to lay any visible cables in your apartment, then our wireless exhaust ventilation system is the ideal solution for you.

This text is machine translated.

Scope of delivery

  • Switching Device with safeguard
  • Transmitter with thermo-sensor (white)
  • Mini transmitter, the magnetic contact and the spacer plates (white)
  • Replacement housing for mini transmitter, the magnetic contact and the spacer plate (brown)
  • Battery (1x CR2477 N)
  • Fixings
  • Calculation formula
  • User manual.

Hints

There can be up to 16 radio transmitters, which are individually individually or in series.

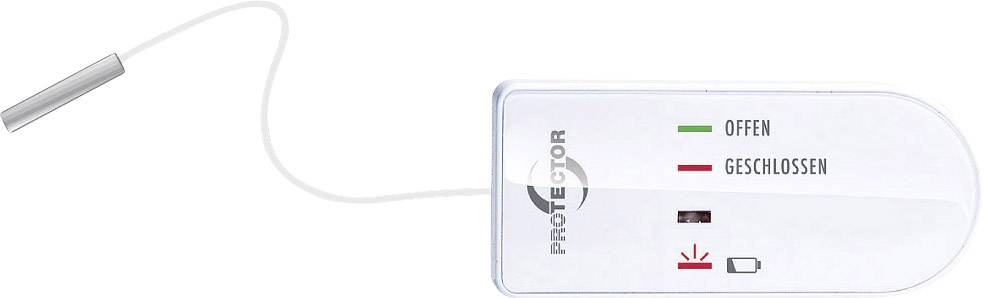

Suitable additional transmitter window AS-F20 (item no. 1590118), additional transmitter thermo-AS-T30 (item no. 1590120) and additional transmitter shutter AS-R40 (1590120) please order separately.
