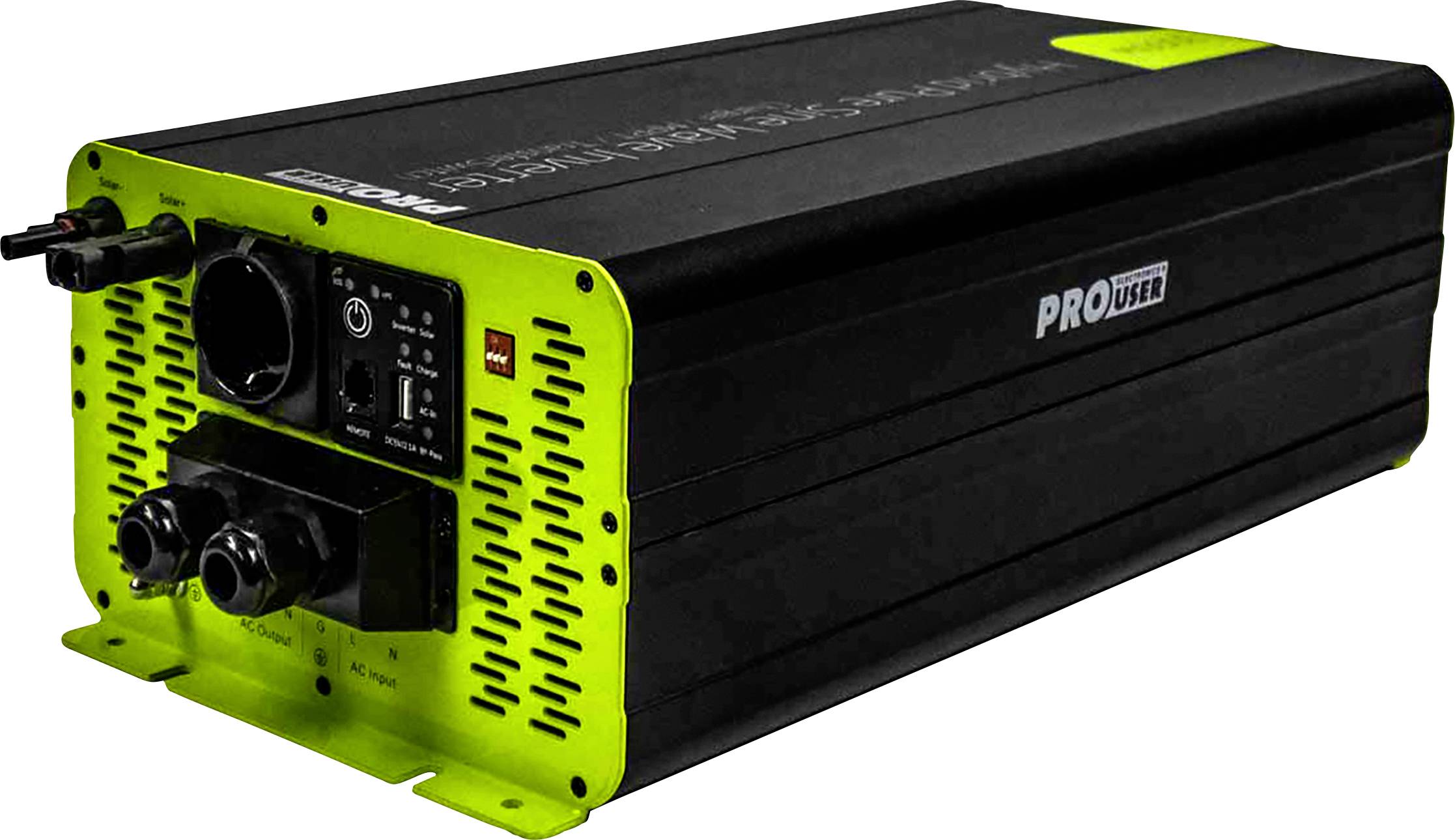

ProUser Inverter PSI3000TX 3000 W 12 V DC - 230 V AC Incl. remote control, Sine wave, UPS function, Built-in charge cont
EAN:
Part number:
Item no:
Number
Total (€ 814.29 / piece)
€ 814.29
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Hybrid voltage converter PSI3000TX
- Nominal output voltage 3000 W
- Peak power: 4500W (10 sec.)
- Maximum output 6000W (2 sec.)
Technical specifications
- MPPT tracker
- Input solar voltage 15 to 70 V
- Solar panel max. 600 W
- Built-in battery charger 20 Ah
- Input voltage
10.5 V - 16 V
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
3000 W
- Input voltage
12 V DC
- Inputs
Screw contacts
- Output
PG socket
Screw terminal
- Nominal load efficiency
90 %
- Outlets
1
- Output frequency
50 Hz
- Permanent current
13 A
- Input current (max.)
375 A
- Remote control
Yes
- Weight
8.6 kg
- Cooling method
Fan
- Width
220 mm
- Height
150 mm
- Length
515 mm
- Peak output power
3000 W
- Standby consumption
1200 mA
- Type
Schuko
- Type
PSI3000TX
- Features
Incl. remote control
Sine wave
UPS function
Built-in charge controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323919 ProUser Inverter PSI3000TX 3000 W 12 V DC - 230 V AC Incl. remote control, Sine wave, UPS function, Built-in charge cont
Description
The PSI3000TX Hybrid is Ideal for the mobile use of 230V devices. It generates from a 12 V DC voltage an alternating voltage of 230V, as you are used to from home. This pure sine wave inverter has a built-in MPPT solar panel charging regulator and battery charger. This regulates the energy generated from the solar panel and so gets the highest possible efficiency from your solar panel. The PSI3000TX Hybrid is ideal for charging sensitive devices such as your phone or laptop, but is also ideal for an electric cool box. The inverter is equipped with an automatic switching relay. In the event of a power failure, the inverter immediately switches over and switches off again as soon as the mains voltage is restored.
This text is machine translated.
This text is machine translated.

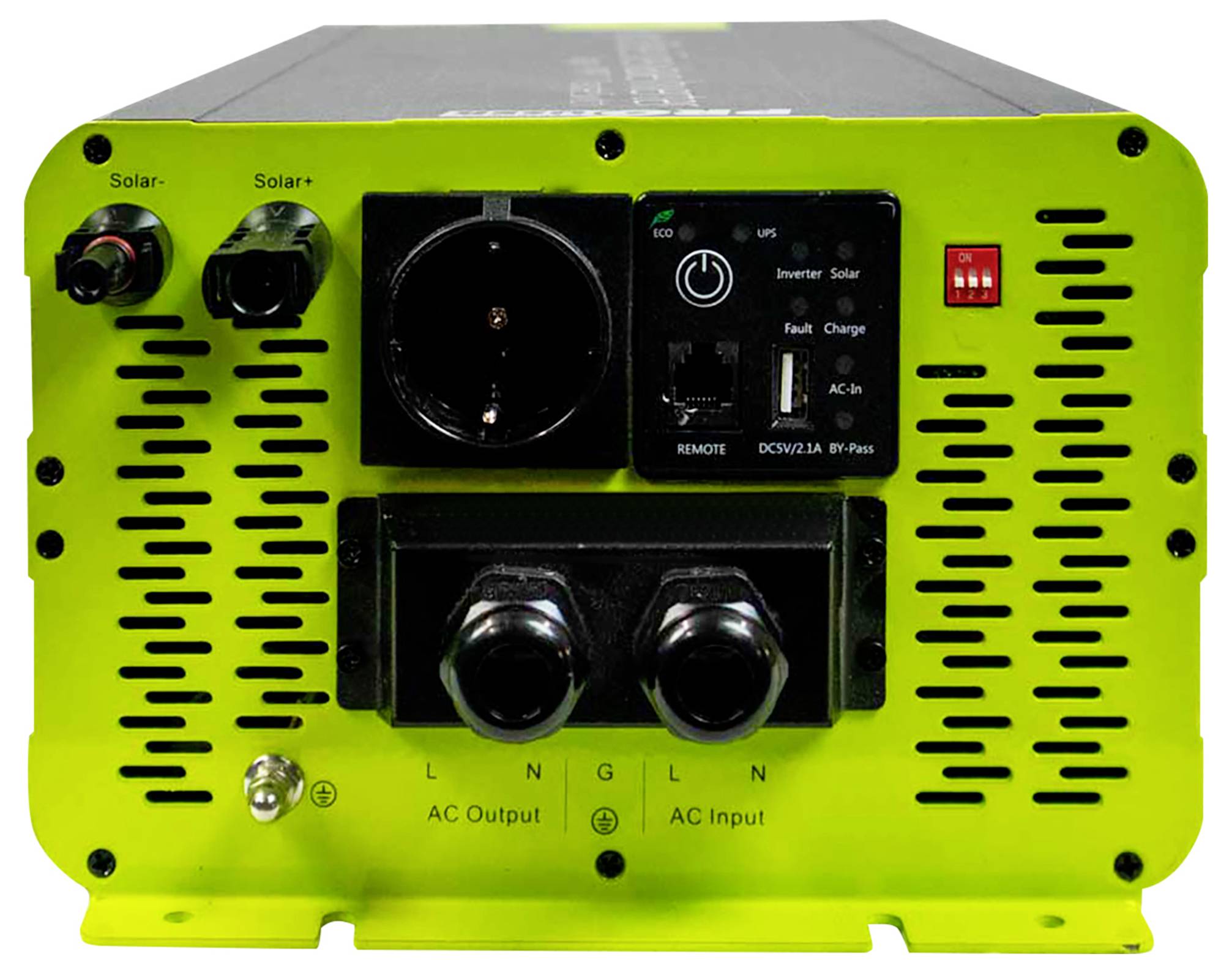

Features
- Solar module connection MC4
- MPPT-charger
- Output 230 V AC socket
- ECO mode display
- UPS-mode display
- By-pass display
- USB output
Scope of delivery

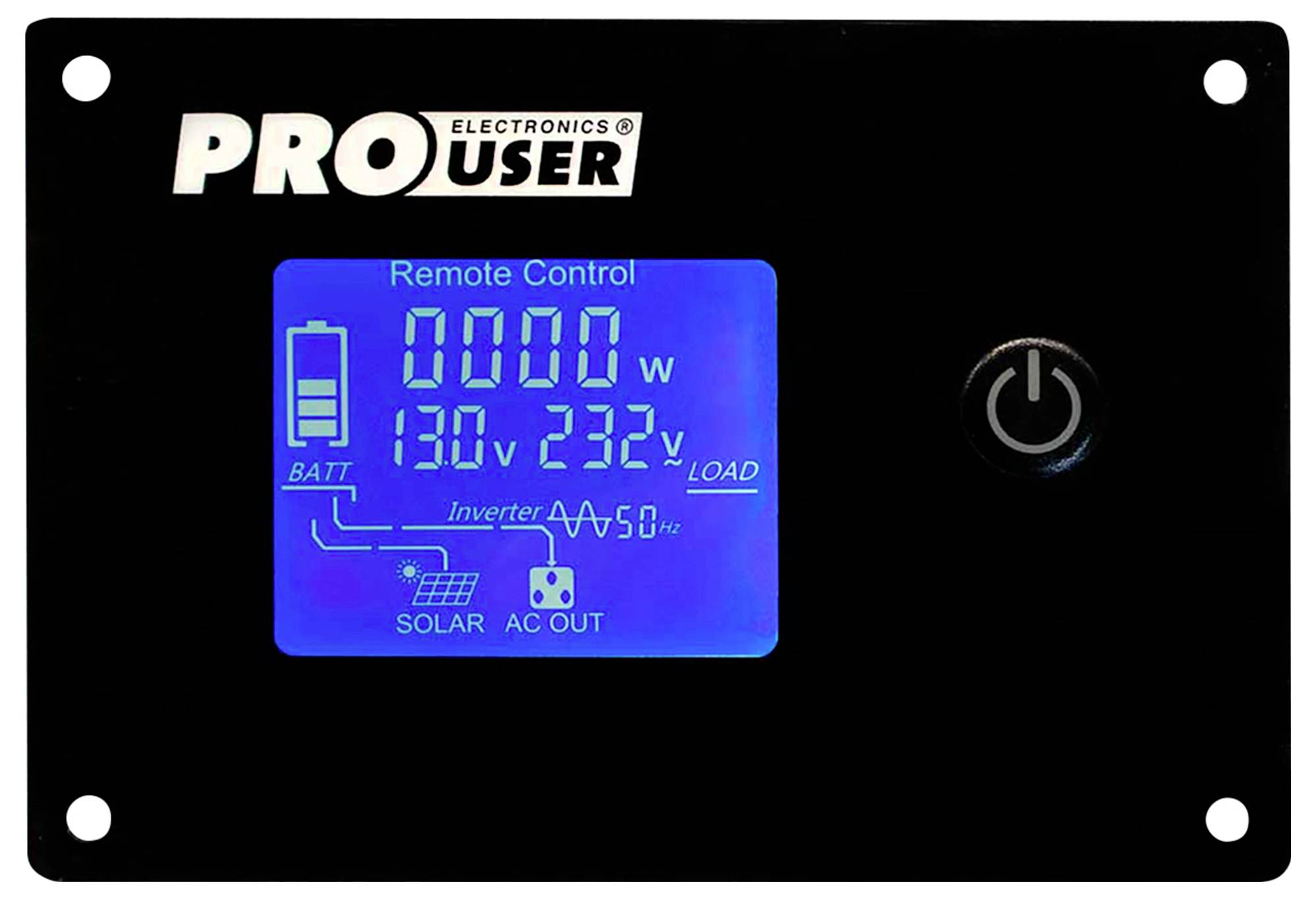

- With 6 bits. Control panel
- Wiring of the control panel
- Mounting frame for the control panel
- Battery cable set
- 230V connection cable.
