Name: Quadrios 23T031 23T031 Automatic stripper Incl. cable cutter 0.25 up to 6 mm² 23 up to 10
Brand: Quadrios
SKU: 2870605
Availability: InStock

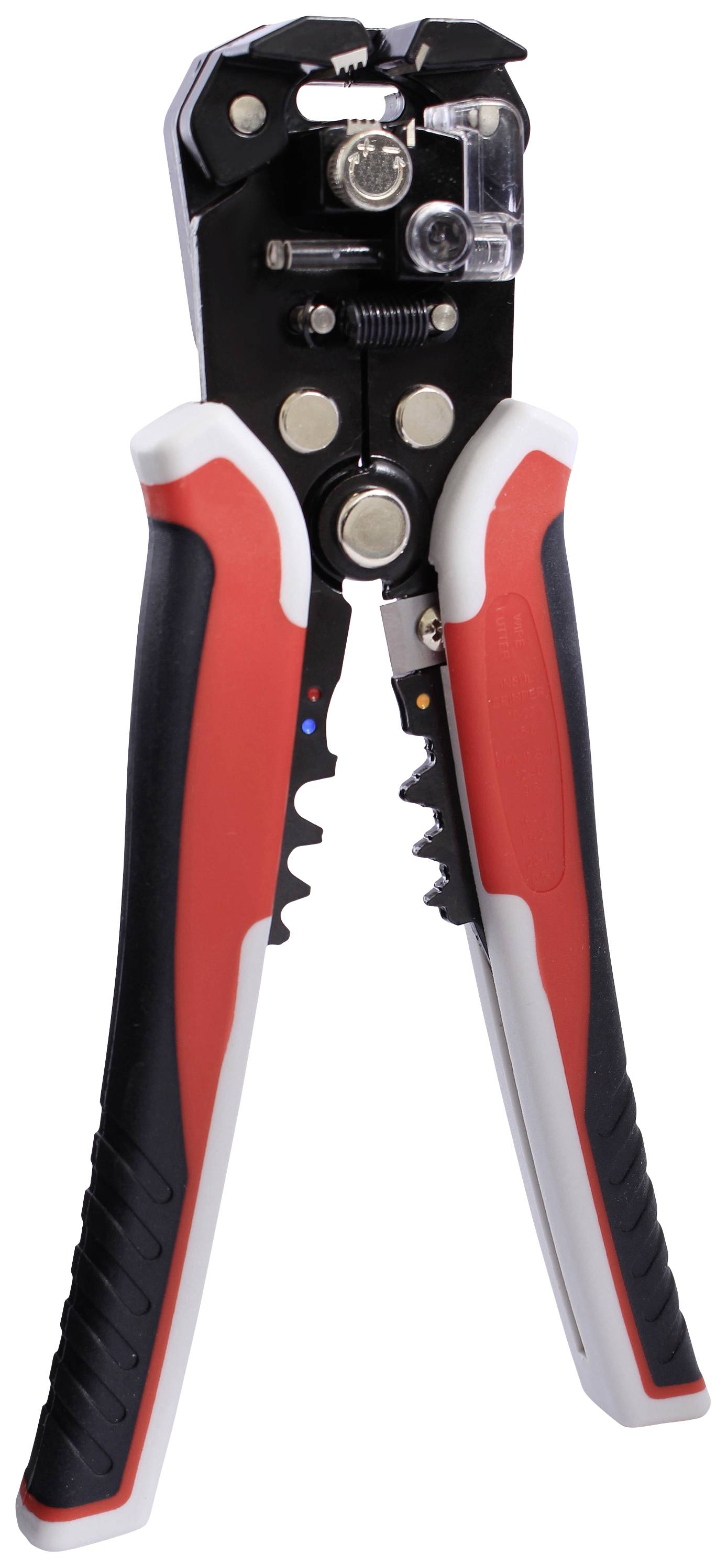

Automatic wire stripping pliers with red and black handles, suitable for stripping and cutting electrical wires.

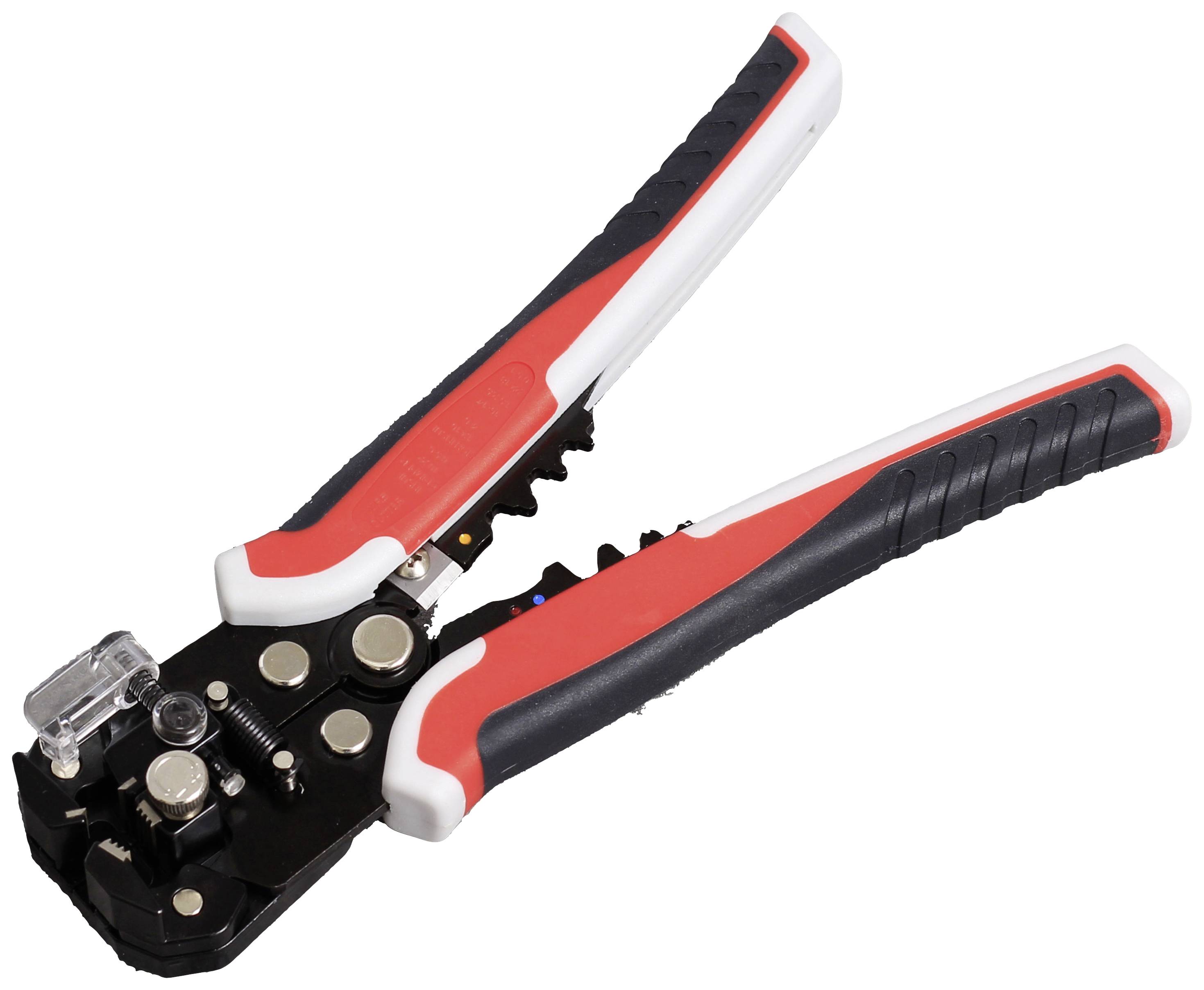

A wire stripping pliers with red and black handles, used for removing insulation from electrical cables.

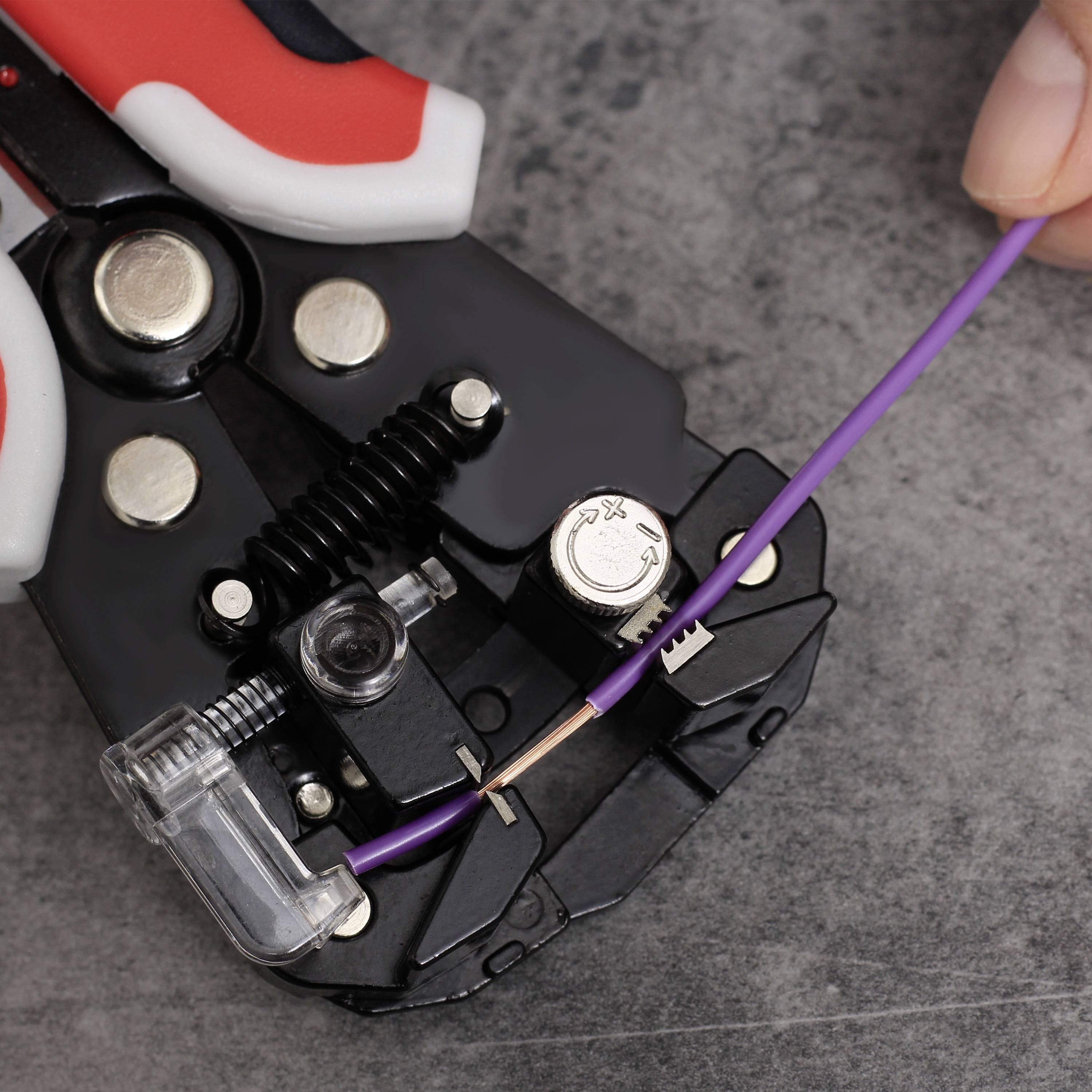

A person is using wire strippers to strip the insulation from a purple cable. The tool precisely removes the cable sheath to expose the copper wire.

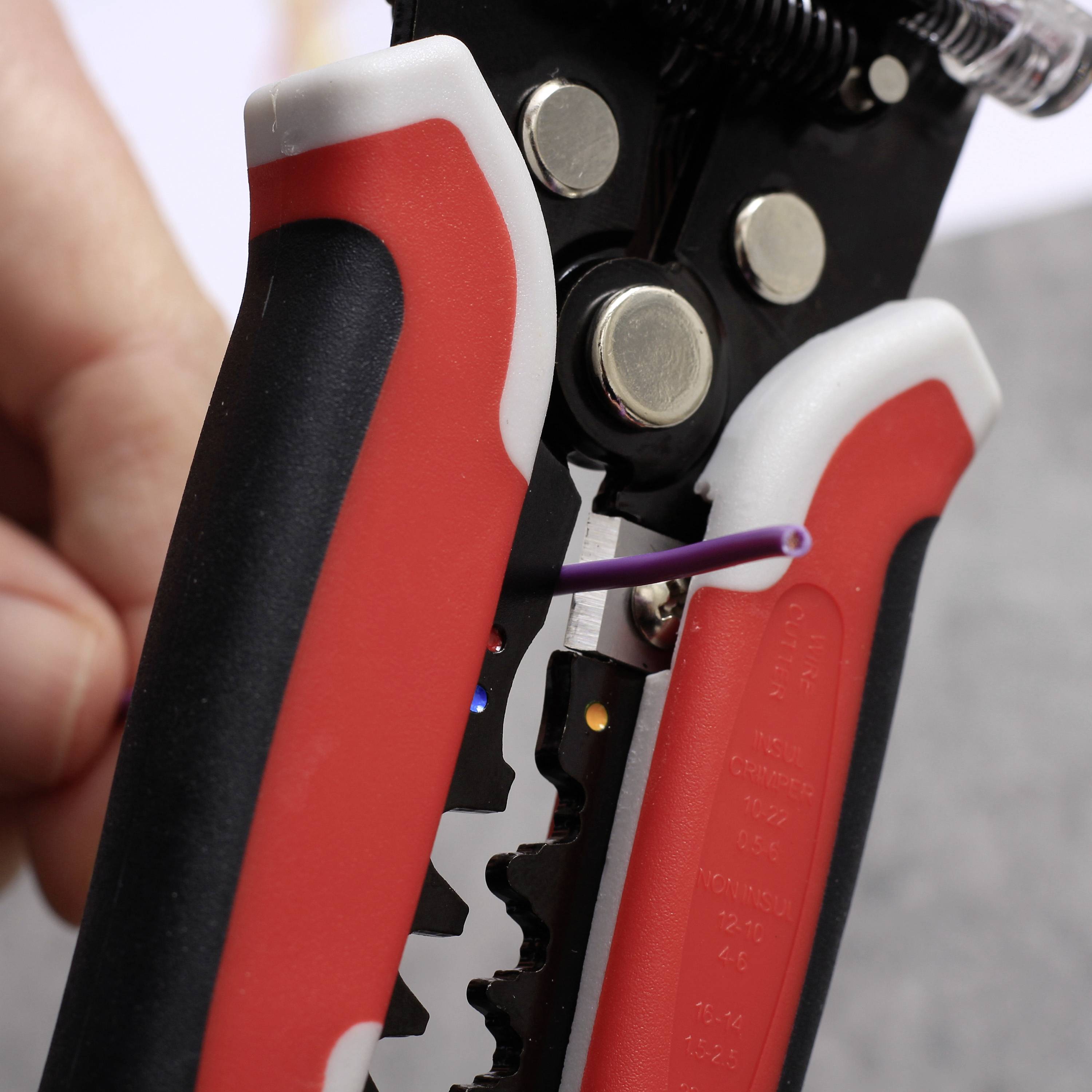

A hand holds a wire stripper, stripping a purple cable. Close-up shot, focus on the wire stripper and cable.

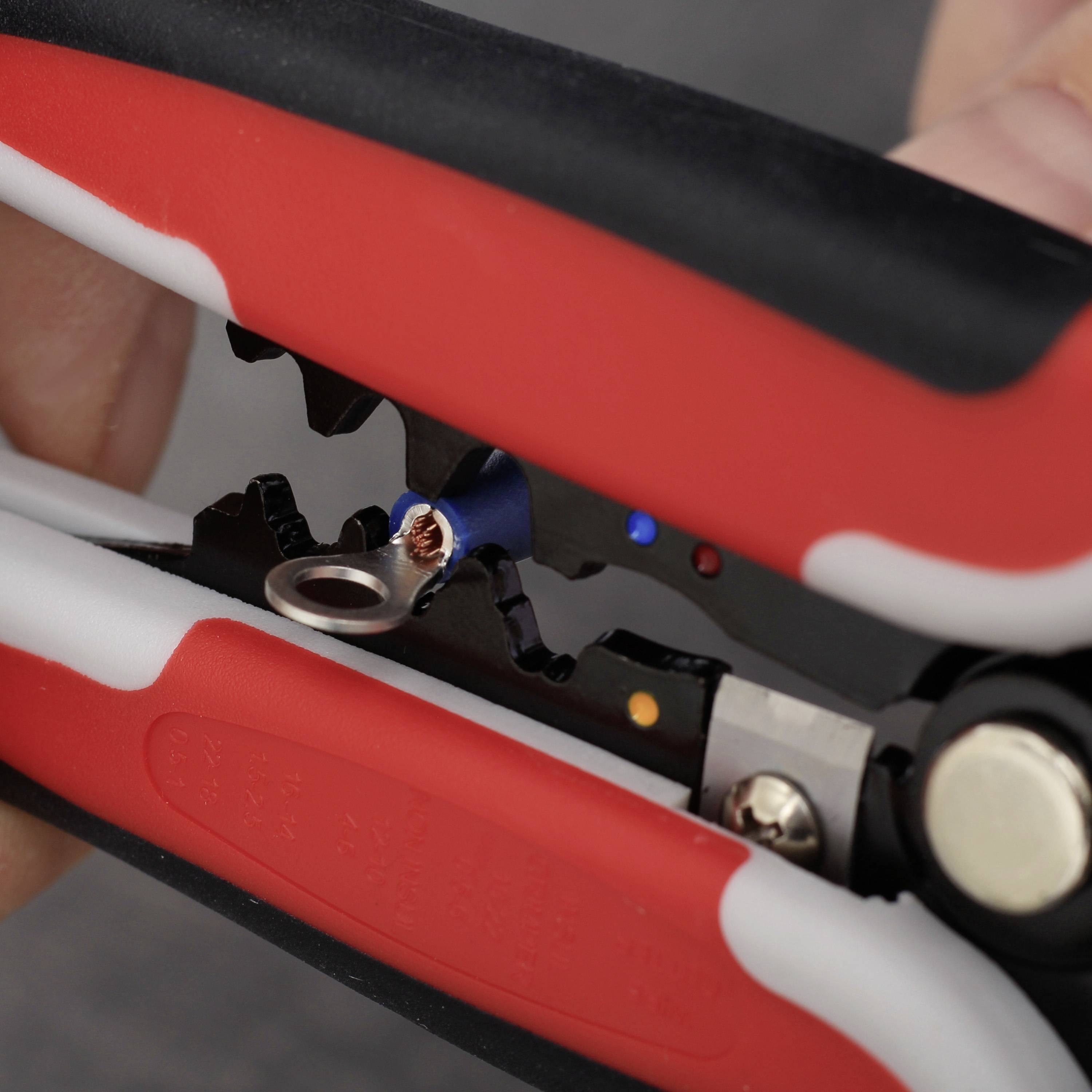

A hand is holding a cable cutter with a red and black handle. The cutter is gripping a blue wire with a cable lug.

Two hands are using a black multi-tool with red handles to strip a thin transparent cable against a grey background.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Automatic wire stripper 0,25-6 mm²

Automatic stripping tool for fast and safe stripping of wires such as PVC-wires and fine-stranded conductors. The setting to the conductor cross-section is done automatically
Practical applications: For stripping insulation from 0.25 to 6 mm² conductors. The length of the stripping can be adjusted via a stopper, even the peeling strength can be finely adjusted!
With additional functions: No crimping pliers available – no problem: The wire stripping pliers has additional functions like cutter and crimping function for insulated / non-insulated cable shoes

Technical specifications

Product type: Automatic stripper

Suitable for: Leads

Working area (cross section): 0.25 up to 6 mm²

Working area cross section (min.): 0.25 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 23 up to 10

Operating range (AWG cross section) (min.): 10

Operating range (AWG cross section) (max.): 23 awg

Material: Steel

Length: 210 mm

Width: 111 mm

Weight: 312 g

Features: Incl. cable cutter

UKCA: not relevant

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2870605 Quadrios 23T031 23T031 Automatic stripper Incl. cable cutter 0.25 up to 6 mm² 23 up to 10

User & Safety Instructions

User & Safety Instructions 2870605 Quadrios 23T031 23T031 Automatic stripper Incl. cable cutter 0.25 up to 6 mm² 23 up to 10

Description

These wire stripping pliers are particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use. The tried and tested cable stripper is optimally designed for a wide range of applications and can therefore be used very flexibly.

The automatic wire stripper has automatic adjustment to the respective wire diameter in a wide range of applications between 0.25 and 6 qmm of conductor cross-section - with every stripping process anew. The automatic cutting unit (jaw pressure) is optimally calibrated by the factory, but can be fine-adjusted to individual requirements - for this purpose the silver rotary wheel is used. A fixed or recurring stripping length can be preset with the movable, transparent limiter; when not used, it remains in a neutral position. The ergonomic grip sits comfortably in the hand and allows a good grip. The comparatively low weight of only approx. 312 g for stability is ideal for long-term use and prevents fatigue symptoms.

The pliers have clever additional functions beyond stripping and can offer the following functions with the special recesses in the handle:

• Cutter for cutting small wires and cables
• Crimping tool function for non-insulated cable shoes 0.5 - 6 mm²
• Crimping tool function for insulated cable shoes 0.5 - 6 mm²

Delivery: Automatic multi-function wire stripper (210 x 111 mm).

This text is machine translated.
