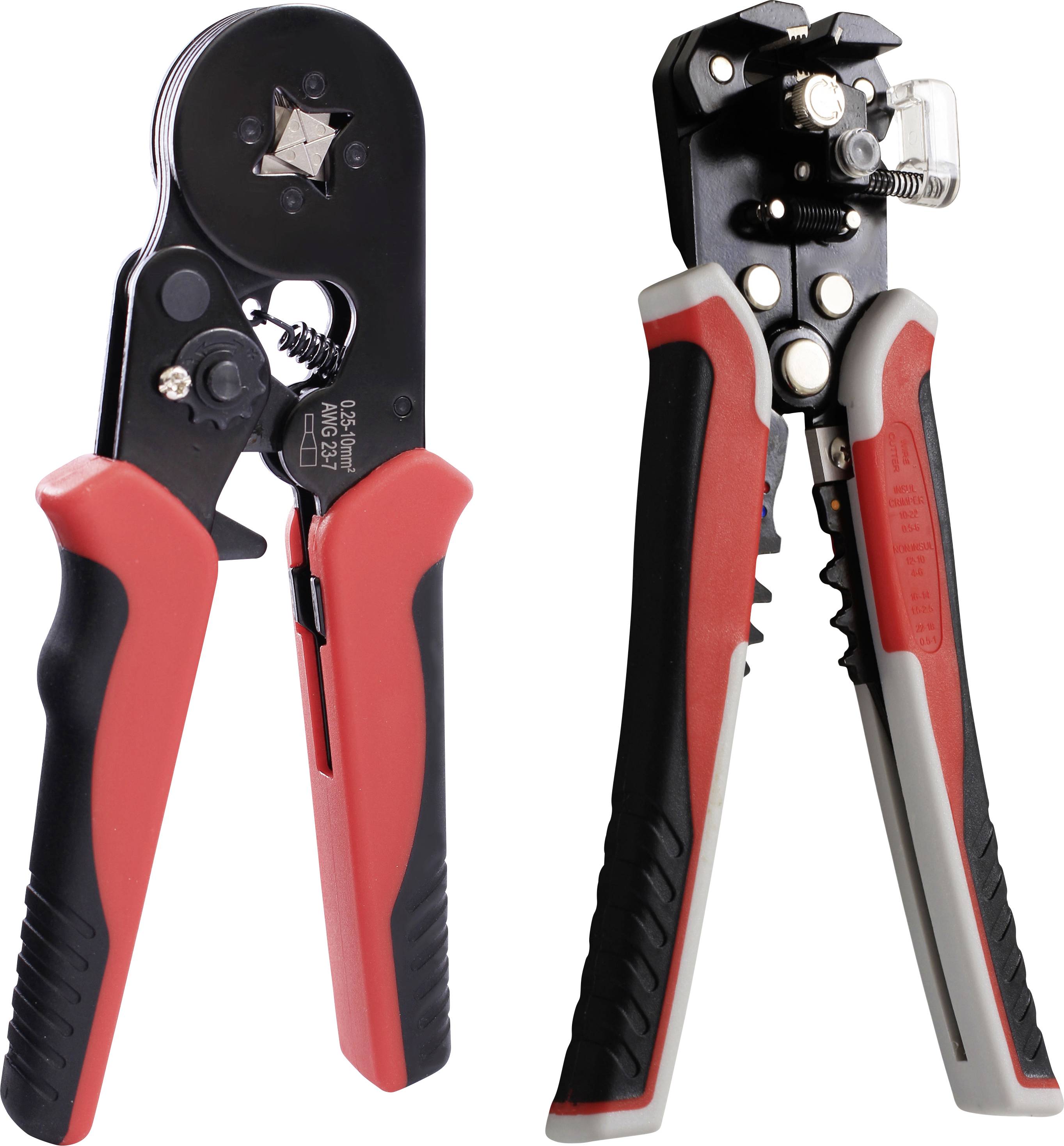

Quadrios 24T056 24T056 Automatic stripper

The automatic wire stripper has an automatic adjustment to the respective wire diameters in a wide range of applications between 0.25 and 6 mm² cross-section - with every stripping procedure again. The automatic cutting unit (jaw pressure) is optimally calibrated by the factory, but can be fine-adjusted to individual requirements - for this purpose the silver rotary wheel is used. A fixed or recurring stripping length can be preset with the movable, transparent limiter; when not used, it remains in a neutral position. The ergonomic grip sits comfortably in the hand and allows a good grip. The comparatively low weight of only approx. 312 g for stability is ideal for long-term use and prevents fatigue symptoms.

The pliers have clever additional functions beyond stripping and can offer the following functions with the special recesses in the handle:

• Cutter for cutting small wires and cables
• Crimping tool function for non-insulated cable shoes 0.5 - 6 mm²
• Crimping tool function for insulated cable shoes 0.5 - 6 mm²

The likewise included crimping pliers for wire-end sleeves have an automatic adjustment to the sleeve diameters in a wide range of applications between 0.25 and 10 mm² cross-section of the wire – with every new crimping procedure. The square clamp provides a secure contact with a strong joint and a consistently high quality during the crimping process. The automatic press mechanism is optimally calibrated at the factory, but can be fine-tuned to individual requirements. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a quick-locking safety lock and a low weight of only 363 g for fatigue-free working.

This text is machine translated.
