Quadrios 25CA633 Heatshrink + adhesive White 19.1 mm 6.4 mm Shrinkage:3:1 Sold per metre
Part number:
Item no:
Product type
Heatshrink + adhesive
Nominal inside diameter (pre-shrinkage)
19.1 mm
Nominal diameter (post-shrinkage)
6.4 mm
Heatshrink features
incl. adhesive
Content
Sold per metre
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Highlights & Details

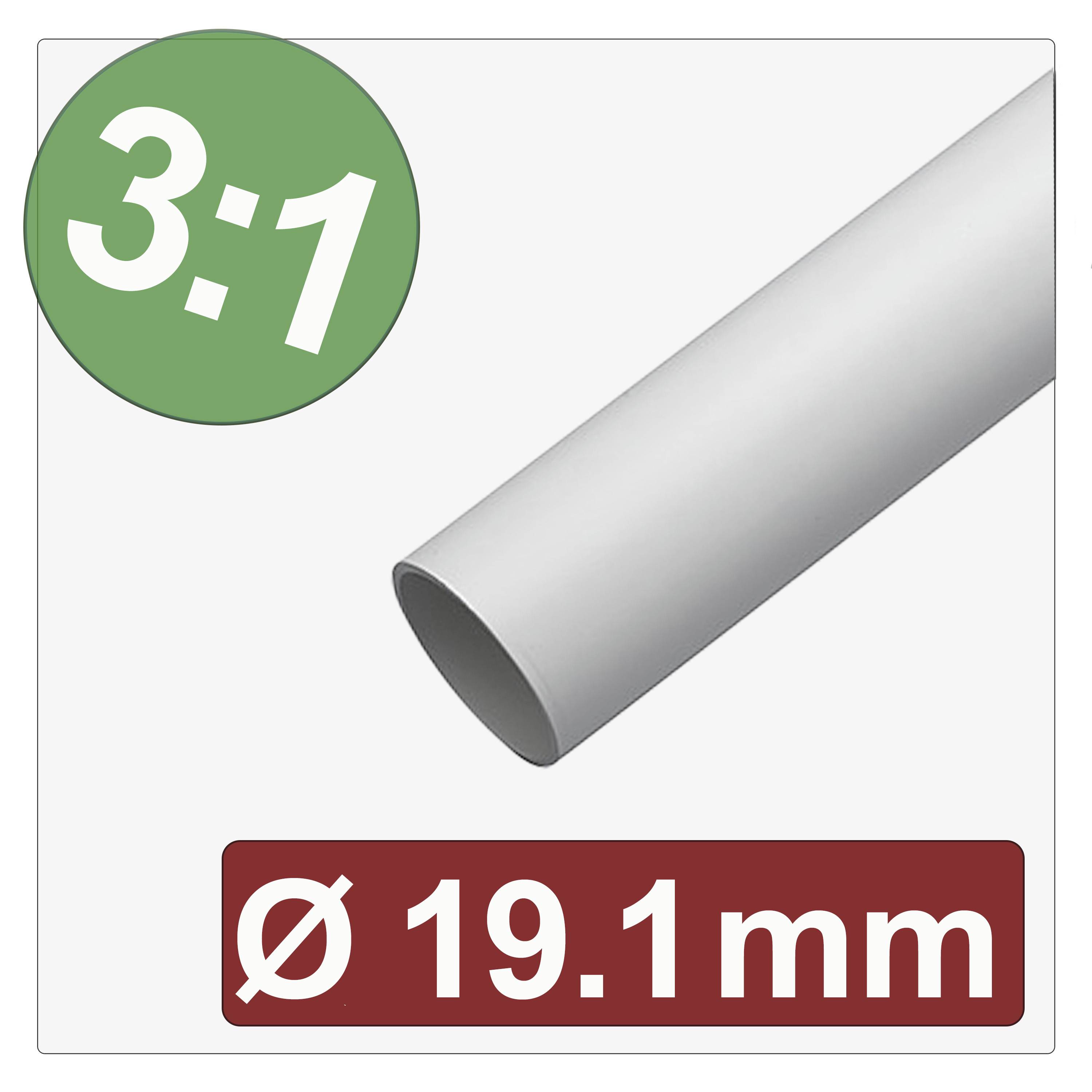

Heat-shrink hose white 3:1 Diameter 19.1 mm Meterware
- Sold per metre
- Shrinkage: 3:1
- White
- Nominal inside diameter (pre-shrinkage): 19.1 mm
Technical specifications
- Product type
Heatshrink + adhesive
- Nominal inside diameter (pre-shrinkage)
19.1 mm
- Nominal diameter (post-shrinkage)
6.4 mm
- Factory colour
White
- Shrinkage
3:1
- Heatshrink features
incl. adhesive
- Content
Sold per metre
- Material
PE
- Shrink temperature (min.)
80 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Manufacturer part #
25CA633
- Halogen-free
Yes
- Type
25CA633
Documents & Downloads
Datasheet
Datasheet 3531406 Quadrios 25CA633 Heatshrink + adhesive White 19.1 mm 6.4 mm Shrinkage:3:1 Sold per metre
User & Safety Instructions
User & Safety Instructions 3531406 Quadrios 25CA633 Heatshrink + adhesive White 19.1 mm 6.4 mm Shrinkage:3:1 Sold per metre
Description
These high-quality heat shrink tubing is particularly suitable for service workshops, electronics and applications requiring Hohem heat shrink tubing.
The white heat shrink tubing is available by meter and can be shortened individually. Various available nominal diameters open up a wide range of applications. The standard version with shrink ratio of 3:1 with inner adhesive is suitable for numerous applications where a safe and water-proof wrapping of the object is required.
Material: PE, shrink temperature (min.): 80 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 s.), industrial quality. The tubing complies with RoHS guidelines and is lead-free and halogen-free.
This text is machine translated.
The white heat shrink tubing is available by meter and can be shortened individually. Various available nominal diameters open up a wide range of applications. The standard version with shrink ratio of 3:1 with inner adhesive is suitable for numerous applications where a safe and water-proof wrapping of the object is required.
Material: PE, shrink temperature (min.): 80 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 s.), industrial quality. The tubing complies with RoHS guidelines and is lead-free and halogen-free.
This text is machine translated.
Scope of delivery
- Heat Shrink Tubing
