Buy Quadrios ESD PG box 3.00 m Socket, 10 mm stud and socket | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

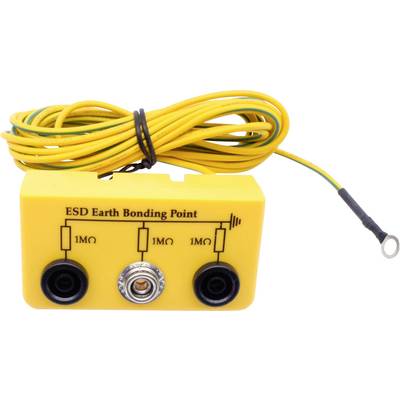

Yellow ESD earthing point module with three connections, two for 1 MΩ resistors and a central earthing terminal.

Yellow ESD earthing point module with three connections, two for 1 MΩ resistors and a central earthing terminal.

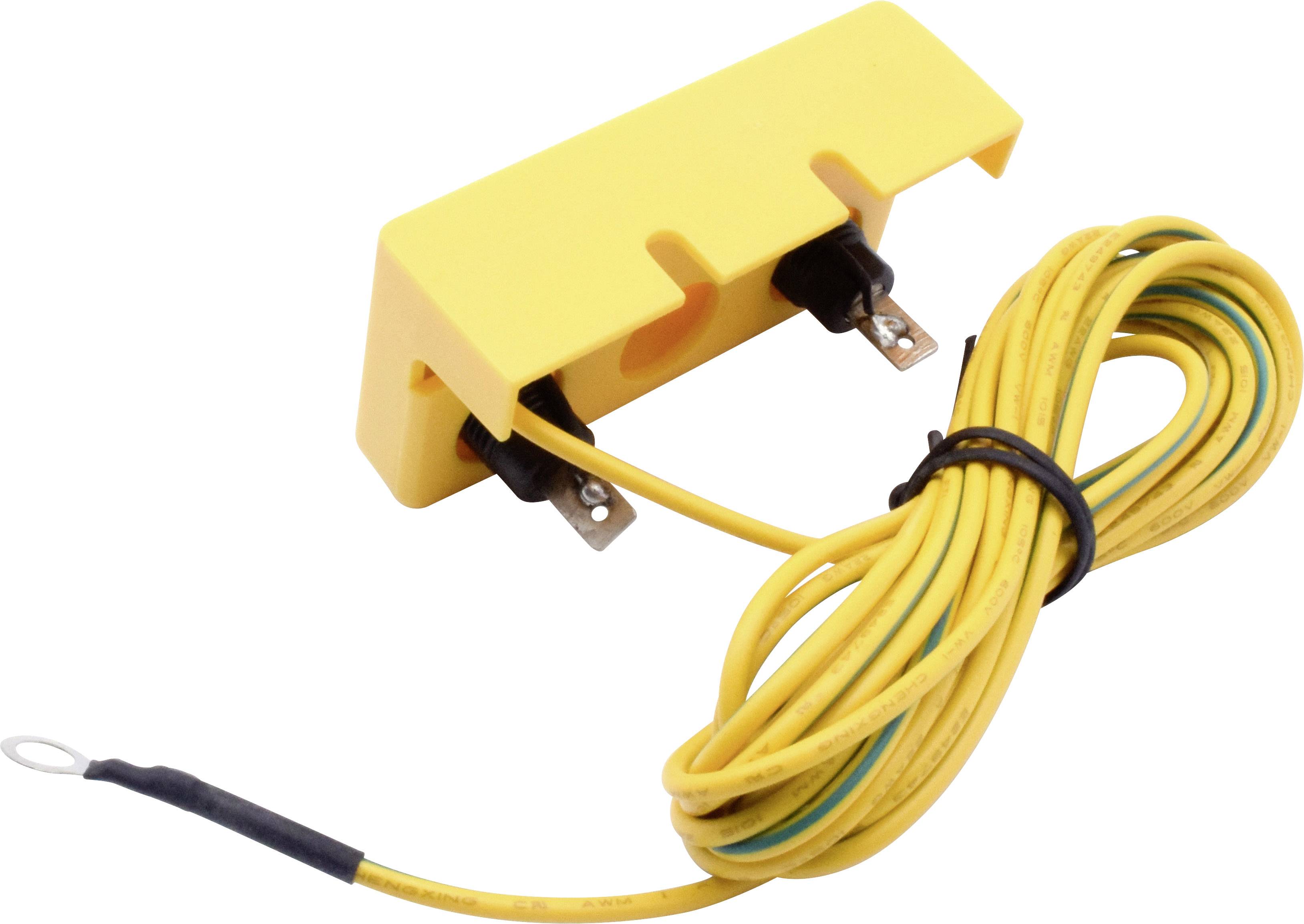

Yellow electrical component with two black connectors and a long, yellow cable connected. Cable is coiled.

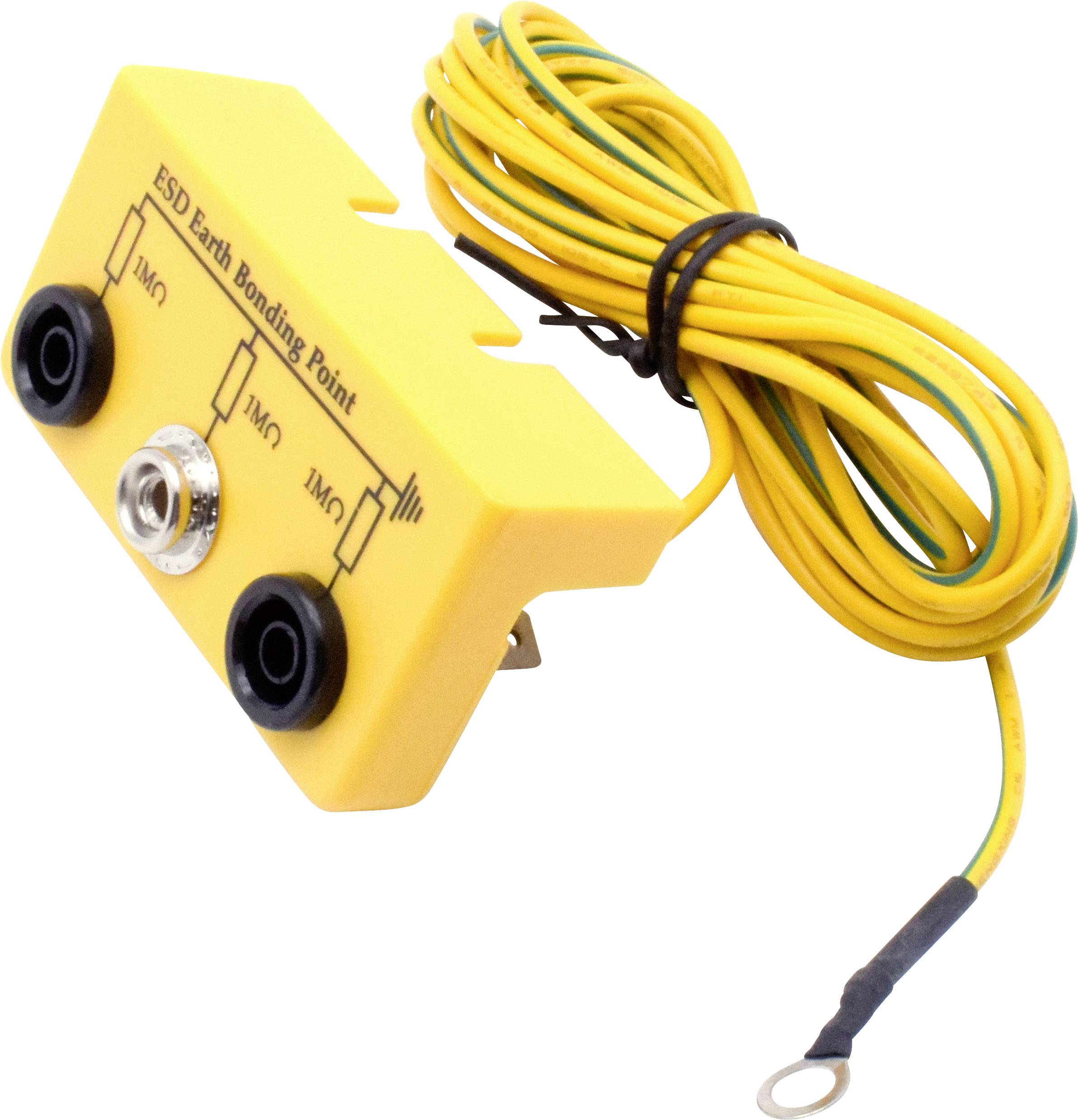

Yellow ESD earthing point device with two black connection sockets and yellow cable. Labelled with 'ESD Earth Bonding Point'.

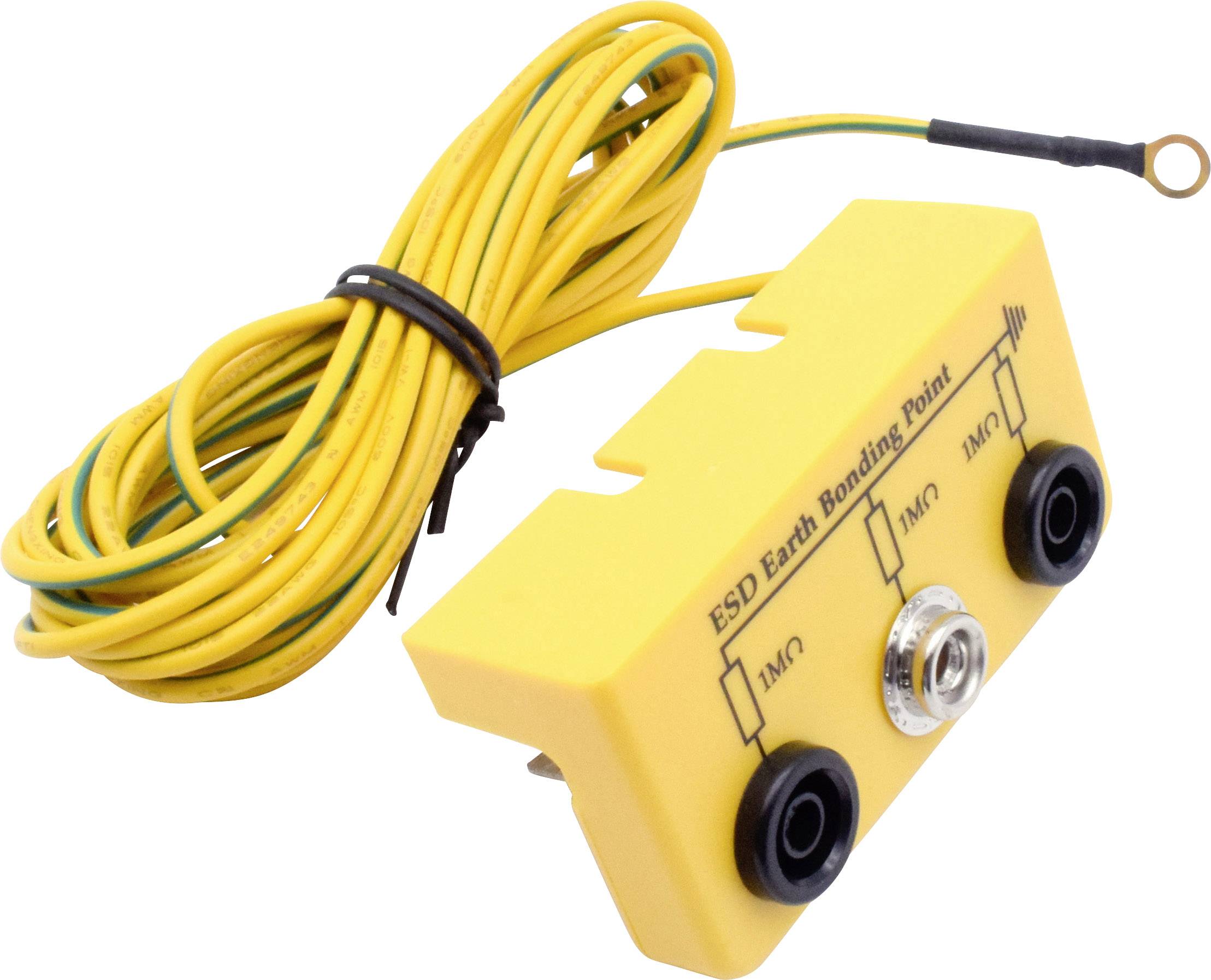

A yellow ESD earthing point with two power sockets and a cable with an earthing loop, used for static discharge.

1/4

Quadrios

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

Only 10 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Quadrios Earthing box 2x Ban.Buchs./Button Ring

Optimum connection of ESD protection components with ground potential
Perfect for stationary applications / ESD workstations
Meets the requirements of the "ESD standard" DIN EN 61340-5-1

Technical specifications

Standard DIN EN 61340-5-1
Design: Angular shape
Special features: Incl. earthing cable, ring terminal lug connection

Product type: ESD PG box

Factory colour: Black
Yellow

Connection: Socket
10 mm stud and socket

Cable length: 3.00 m

Leak resistance: 1 MΩ

Range of use: ESD

Documents & Downloads

Datasheet

Datasheet 2245967 Quadrios ESD PG box 3.00 m Socket, 10 mm stud and socket

User & Safety Instructions

User & Safety Instructions 2245967 Quadrios ESD PG box 3.00 m Socket, 10 mm stud and socket

Description

The earthing box made of ABS plastic in L-shape design connects connected ESD protection components with each other and with the earth potential. Thus, the professional cabling of ESD accessories to a common ground point can be done without any problem.

This text is machine translated.

Scope of delivery

Earthing box in L-design made of ABS with 2 x banana sockets/ 1x 10 mm push-button terminal and earthing resistance 1M Ohm, cable length 3 m, ring cable lug 4 mm

Description

The earthing box made of ABS plastic in L-shape design connects connected ESD protection components with each other and with the earth potential. Thus, the professional cabling of ESD accessories to a common ground point can be done without any problem.

This text is machine translated.

Scope of delivery

Earthing box in L-design made of ABS with 2 x banana sockets/ 1x 10 mm push-button terminal and earthing resistance 1M Ohm, cable length 3 m, ring cable lug 4 mm
