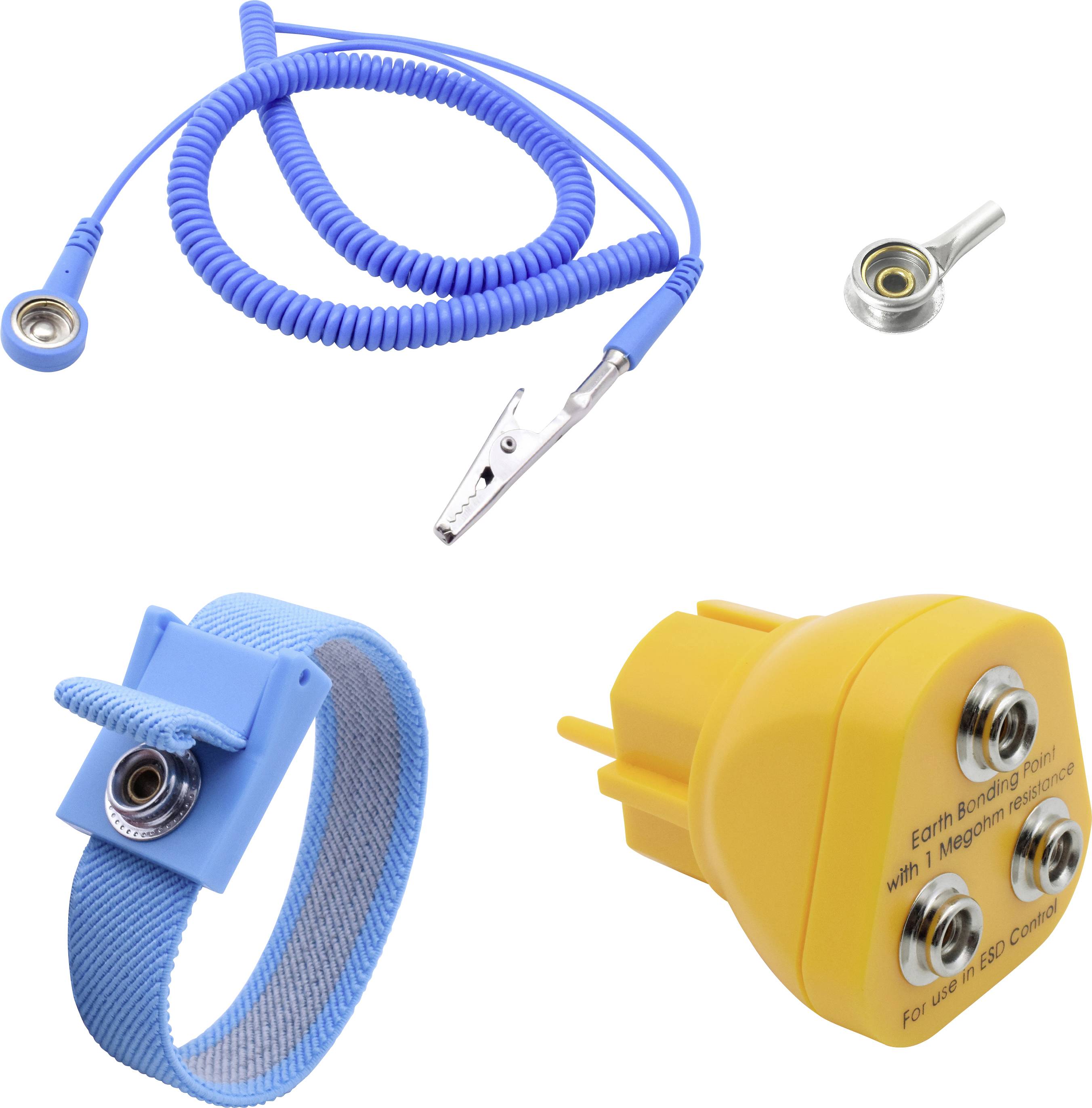

Quadrios ESD PG box 3.60 m 10 mm stud and socket, Banana plug, Alligator clip

In today's world of electronics and technology there is inevitably a conflict with the phenomenon of "ESD" (electrostatic discharge). Many components, modules, plug-in cards etc. are highly sensitive to the electrical discharges in a daily routine which often happens unnoticed. These voltage surges can destroy or at least severely affect electronic assemblies – that is, a damaged component can work for a while before it can suffer the damage originally caused by ESD and possibly cause additional, expensive consequential damage.
Spiral cable:
The blue ESD standard spiral cable is expandable up to 3.6 m length. Another accessory is a alligator clip adapter that can be applied to the banana connector to extend the connection options.
Arm band:
This blue ESD wrist strap represents an electrically conductive contact between the carrier and the connected peripheral HER and is a simple and effective tool to avoid static charges. The inner side has also incorporated a metallic surface which ensures that there is a connection to the connection at all times. The clamping mechanism makes it possible to reduce the diameter of the tape in order to ensure a tight fit.
Connection double adapter:
In order to connect protective components such as mats, wrist straps, grounding points or other equipment, existing connections may need to be changed to a different format. This adapter is ideal for this. Apart from the use of ESD protection components, it can also be used for other purposes in electronics and technology.
ESD earth connector:
The grounding plug is plugged into an existing and correctly installed earthed socket (type F according to CEE 7/3) and immediately provides an earthing point with three connections. Thus a connection of professional ESD accessories to a common ground point can be easily achieved. The ground plug harmonizes optimally with the Quadrios ESD-protection components and can be used for building your own earthing systems or as spare part.

Another very important feature is the conformity with the legal requirements of DIN EN 61340-5-1 (requirements for protection against electrostatic phenomena). This is the only way to ensure that the equipment also ensures that valuable components are protected from electric shocks. Ideal for service and maintenance, laboratories, schools and universities, hobby and computers, vehicle and mechatronics or workshop
