Quadrios ESD PG plug 10 mm stud and socket
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details

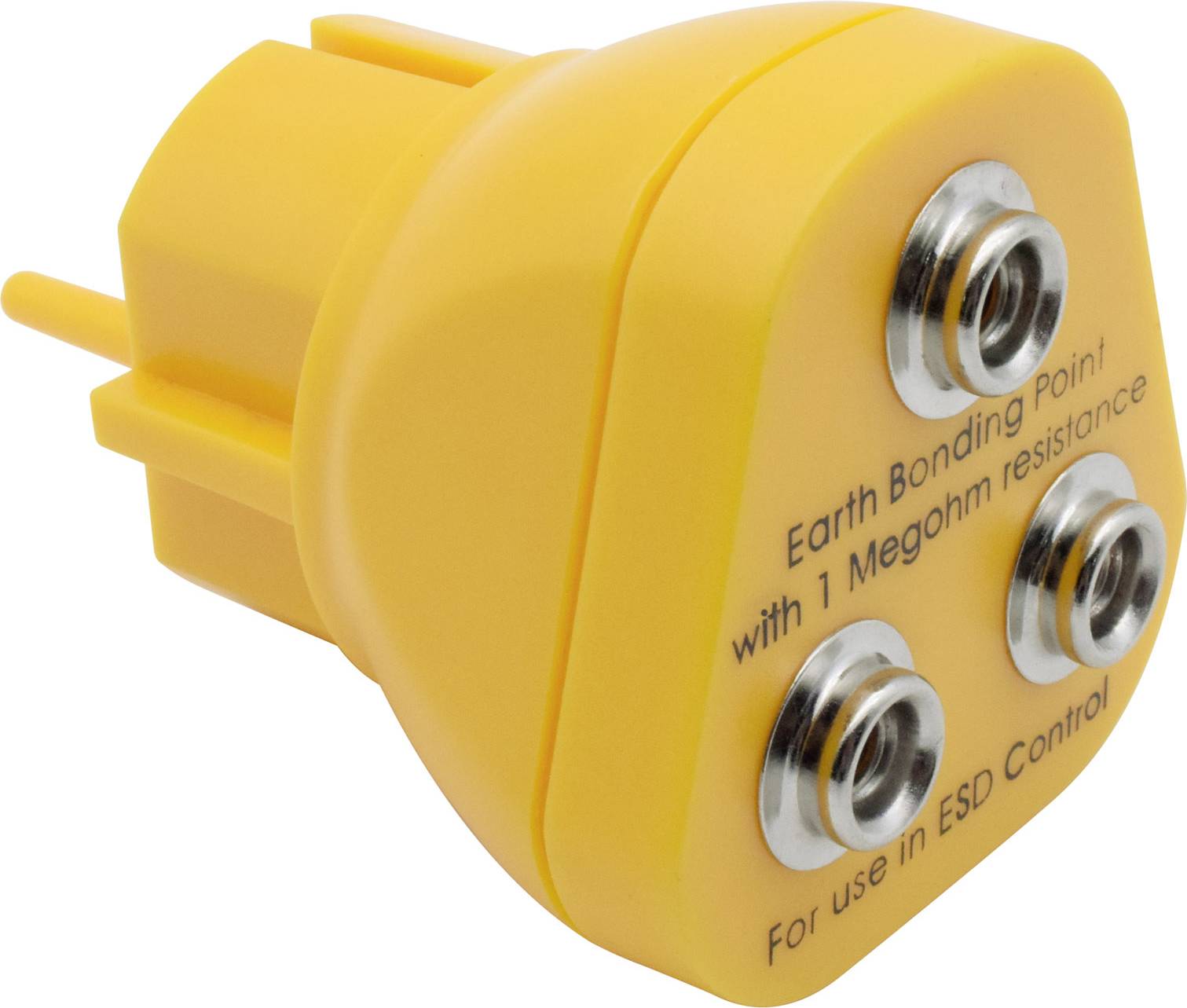

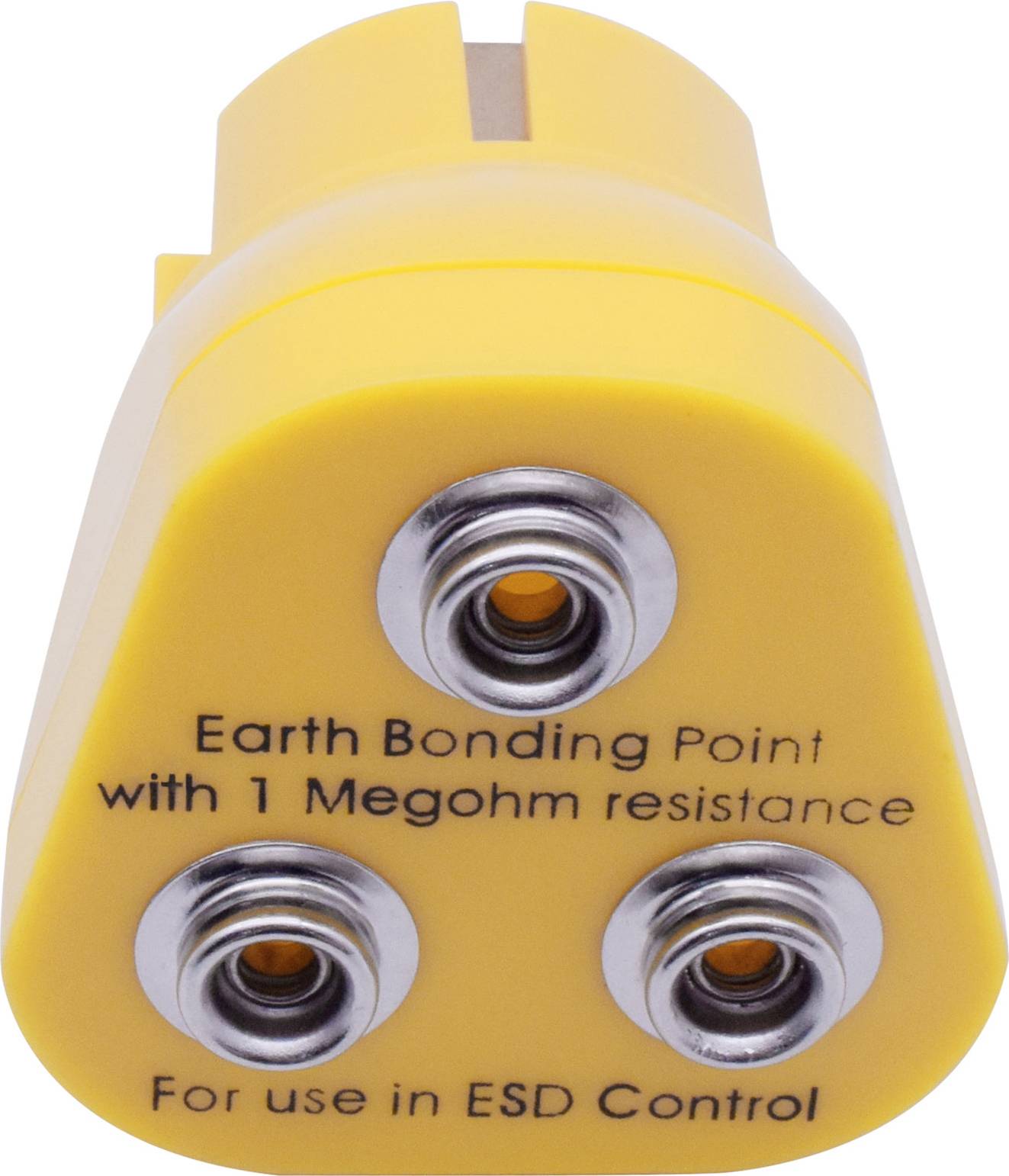

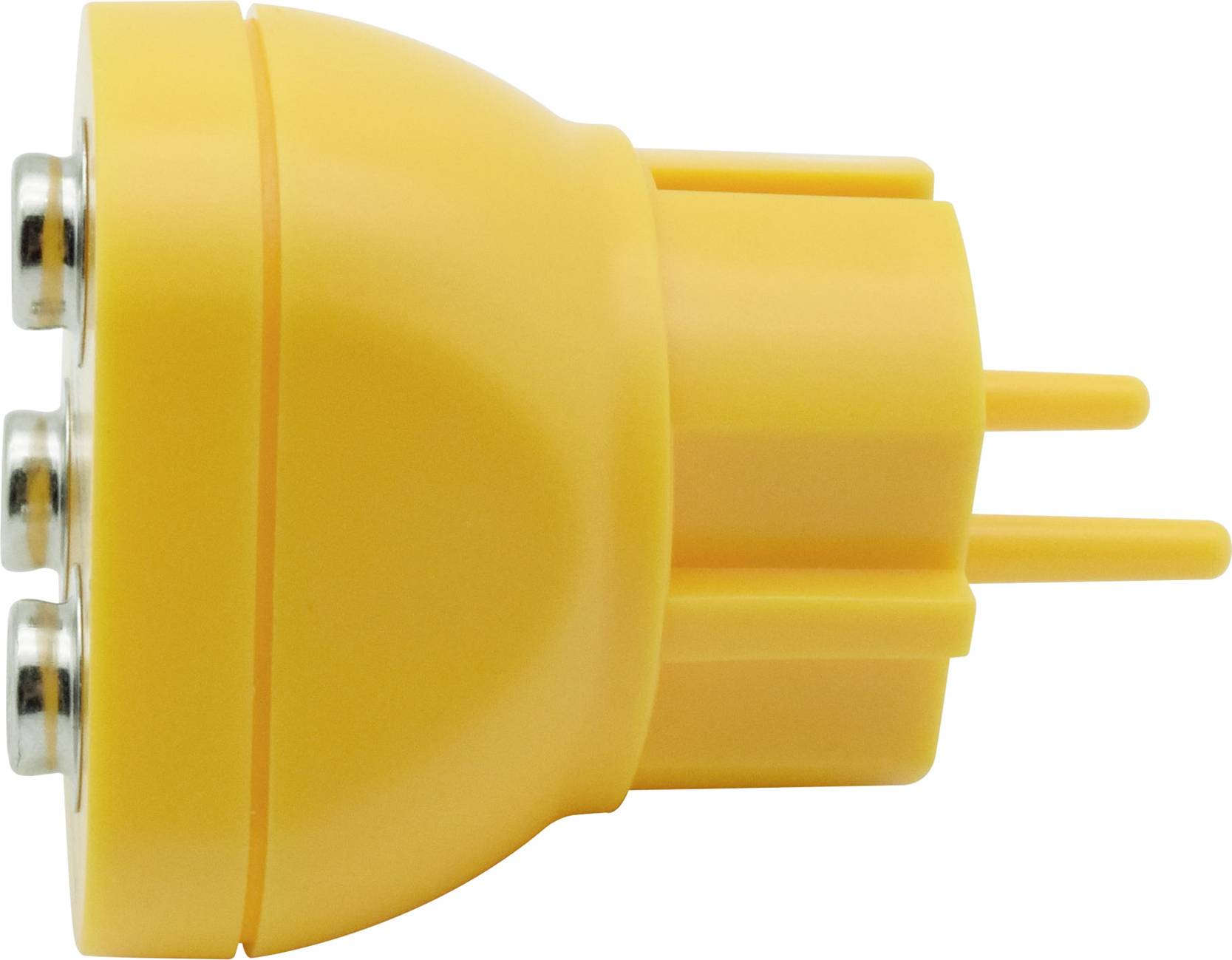

Quadrios earthing plug 3 x push button connection
- Optimum connection of ESD protection components with ground potential
- Design: Earthing contact socket according to German standard (type F according to CEE 7/4)
- Meets the requirements of the "ESD standard" DIN EN 61340-5-1
Technical specifications
- Standard DIN EN 61340-5-1
- Product type
ESD PG plug
- Factory colour
Yellow
- Connection
10 mm stud and socket
- Protective resistor
1 MΩ
- Range of use
ESD
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2245973 Quadrios ESD PG plug 10 mm stud and socket
User & Safety Instructions
User & Safety Instructions 2245973 Quadrios ESD PG plug 10 mm stud and socket
Description

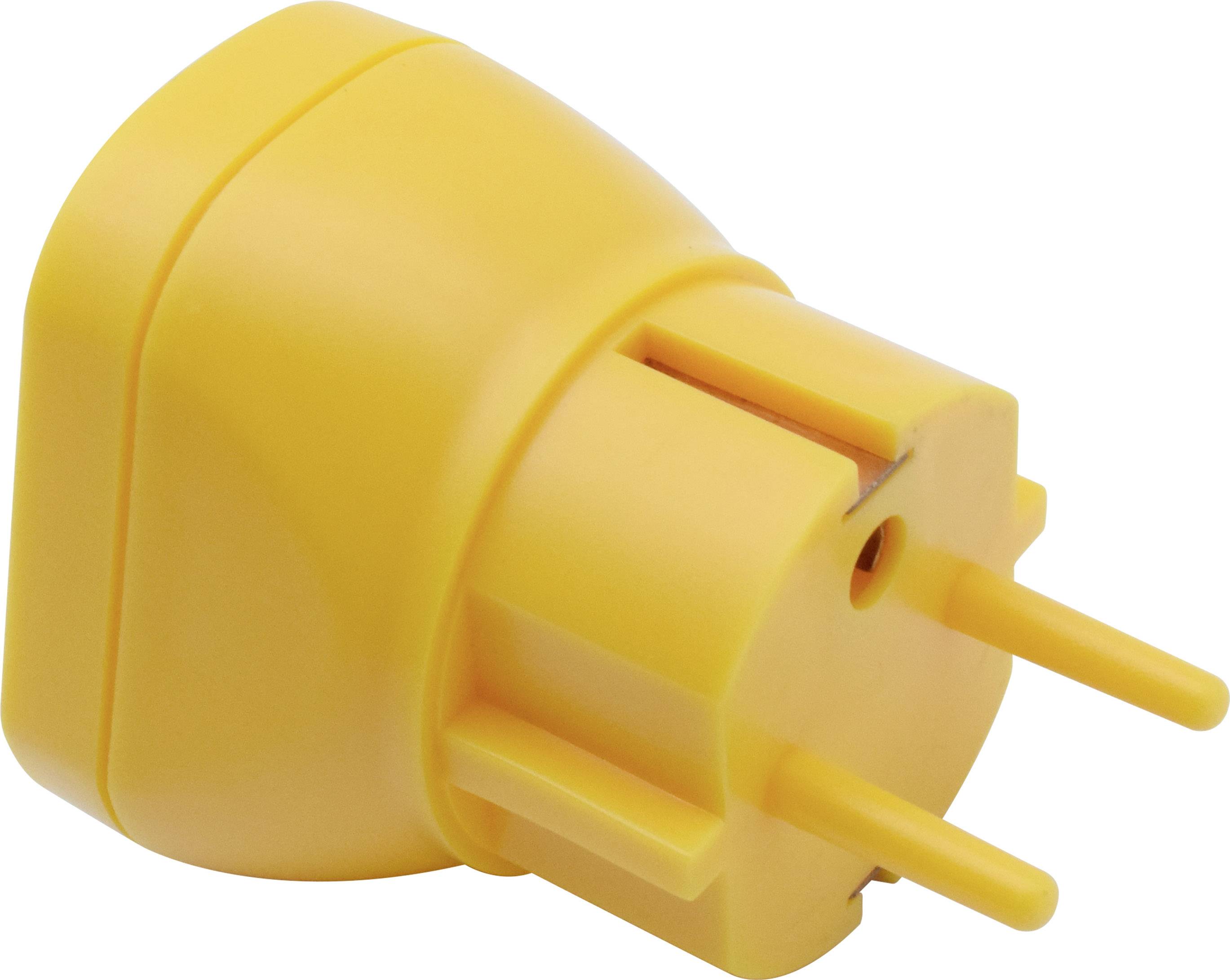

The earthing plug is plugged into an existing and correctly installed earthing contact socket (type F to CEE 7/3) and immediately provides an earthing point with three connections. Thus, the connection of professional ESD accessories to a common ground point can be easily managed. The earthing plug harmonizes optimally with the ESD protection components of Quadrios and can be used for the construction of own earthing systems or as a spare part.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Earthing plug with 3 x 10 mm push button terminals
