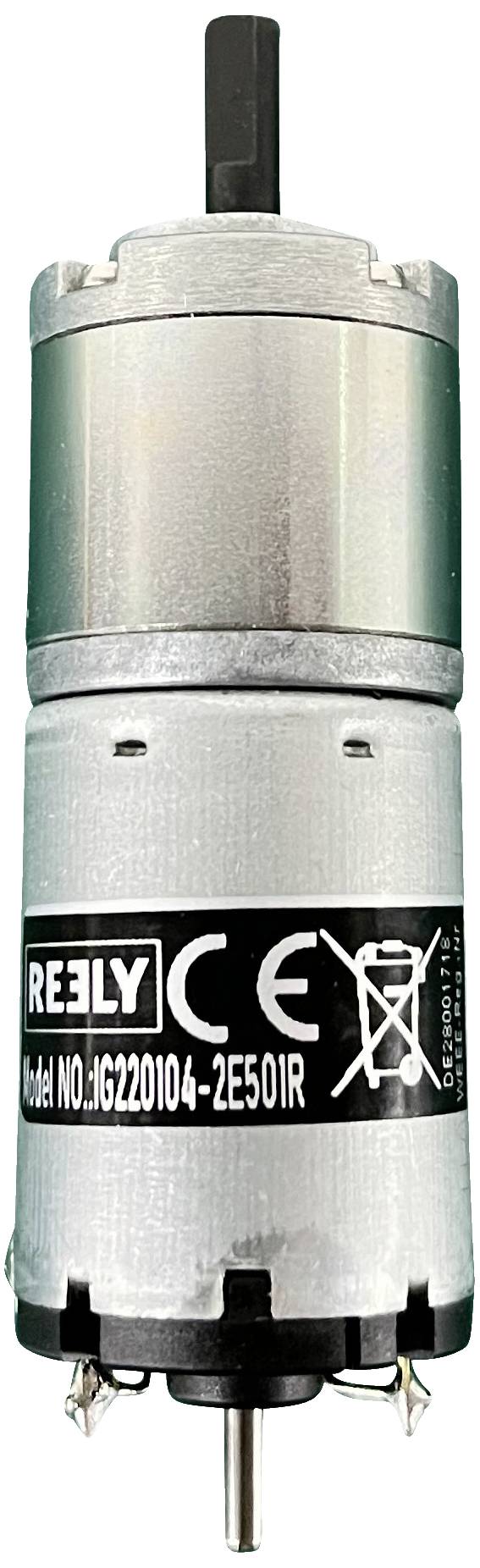

Reely RE-7842810 Gearmotor 12 V 1:104
EAN:
Part number:
Item no:
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
14-day return policy included
Highlights & Details
12V GEAR MOTOR IG22-03 1:104
- Planetary gearbox
- Sleeve bearing
Technical specifications
- Gear motor torque & speed:
- Reduction ratio: 1/104
- Rated voltage (V): 12
- Rated torque (gf-cm) = 1900
- Rated speed (rpm) = 46
- Rotation direction: clockwise
- Motor data:
- Rated torque (gf-cm): 31
- Rated speed (rpm): 4790
- Rated current (mA): ≤ 240
- No load speed (rpm): 6000
- No load current: ≤ 80
- Rated output (W): 1.52
- Product type
Gearmotor
- Nominal voltage
12 V
- Dim
(Ø x H) 22 mm x 22 mm
- Gear reduction
1:104
- Weight
93 g
- Non-stop rotational speed
46 U/min
- Max. torque
1900 g/cm
- Idle speed (nominal)
6000 U/min
- Idle current
80 mA
- Motor type
carbon brush
- Width
22 mm
- Height
22 mm
- Length
75.7 mm
- (Ø)
22 mm
- Gear reduction (details)
1/104
- Shaft Ø
4 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614270 Reely RE-7842810 Gearmotor 12 V 1:104
Description
Reely 12 V gear motor for universal use in all areas of model construction.
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- 13T pinion
