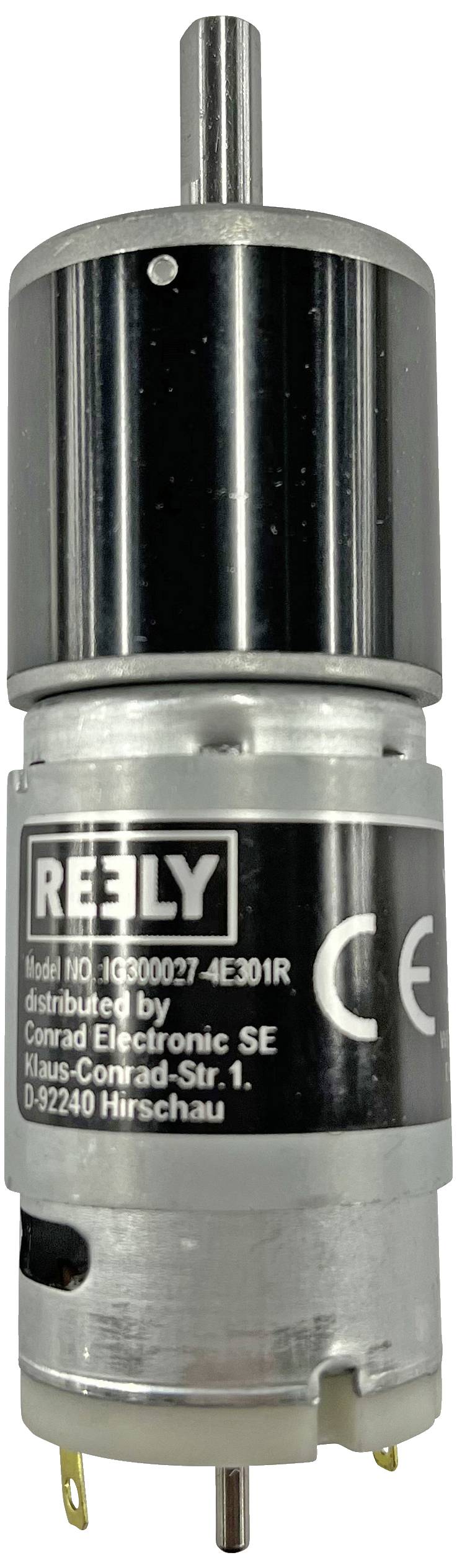

Reely RE-7842822 Gearmotor 12 V 1:27
EAN:
Part number:
Item no:
Total (€ 18.99 / piece)
€ 18.99
incl. VAT
14-day return policy included
Highlights & Details
12V GEAR MOTOR IG30-03 1:27
- Planetary gearbox
- Sleeve bearing
Technical specifications
- Gear motor torque & speed:
- Reduction ratio: 1/27
- Rated voltage (V): 12
- Rated torque (gf-cm) = 2.1
- Rated speed (rpm) = 221
- Rotation direction: counter clockwise
- Motor data:
- Rated torque (gf-cm): 110
- Rated speed (rpm): 5950
- Rated current (mA): ≤ 0.9
- No load speed (rpm): 7400
- No load current: ≤ 0.15
- Rated output (W): 7.0
- Product type
Gearmotor
- Nominal voltage
12 V
- Dim
(Ø x H) 24 mm x 24 mm
- Gear reduction
1:27
- Weight
202 g
- Non-stop rotational speed
221 U/min
- Max. torque
2.1 g/cm
- Idle speed (nominal)
7400 U/min
- Idle current
0.15 mA
- Motor type
carbon brush
- Width
24 mm
- Height
24 mm
- Length
103.9 mm
- (Ø)
24 mm
- Gear reduction (details)
1/27
- Shaft Ø
6 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614274 Reely RE-7842822 Gearmotor 12 V 1:27
Description
Reely 12 V gear motor for universal use in all areas of model construction.
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- 11T pinion
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
