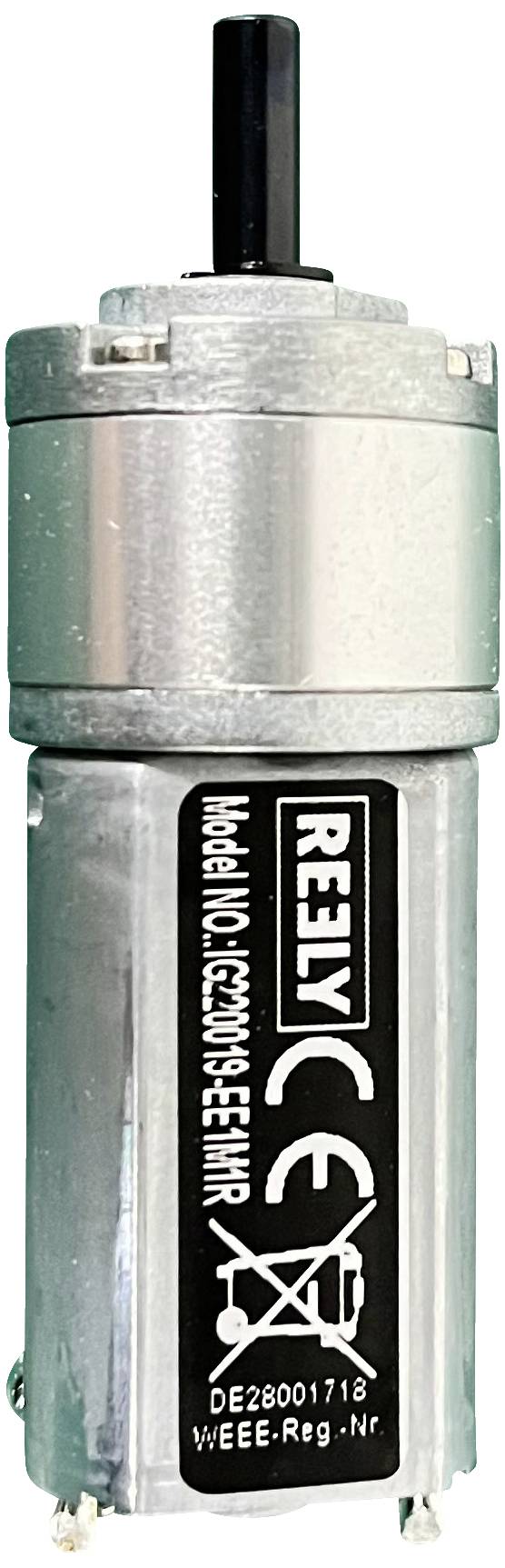

Reely RE-7842786 Gearmotor 12 V 1:19
EAN:
Part number:
Item no:
Number
Total (€ 24.99 / piece)
€ 24.99
incl. VAT
14-day return policy included
Highlights & Details
REELY 12V Gear Motor IG22-01 1:19
- Planetary gearbox
- Sleeve bearing
Technical specifications
- Gear motor torque & speed:
- Reduction ratio: 1/19
- Rated voltage (V): 12
- Rated torque (gf-cm) = 295
- Rated speed (rpm) = 348
- Rotation direction: counter clockwise
- Motor data:
- Rated torque (gf-cm): 22
- Rated speed (rpm): 6700
- Rated current (mA): ≤ 200
- No load speed (rpm): 8000
- No load current: ≤ 70
- Rated output (W): 1.5
- Product type
Gearmotor
- Nominal voltage
12 V
- Dim
(Ø x H) 22 mm x 22 mm
- Gear reduction
1:19
- Weight
63 g
- Non-stop rotational speed
348 U/min
- Max. torque
295 g/cm
- Idle speed (nominal)
8000 U/min
- Idle current
70 mA
- Motor type
carbon brush
- Width
22 mm
- Height
22 mm
- Length
64.05 mm
- (Ø)
22 mm
- Gear reduction (details)
1/19
- Shaft Ø
4 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614262 Reely RE-7842786 Gearmotor 12 V 1:19
Description
Reely 12 V gear motor for universal use in all areas of model construction.
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- 13T pinion
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
