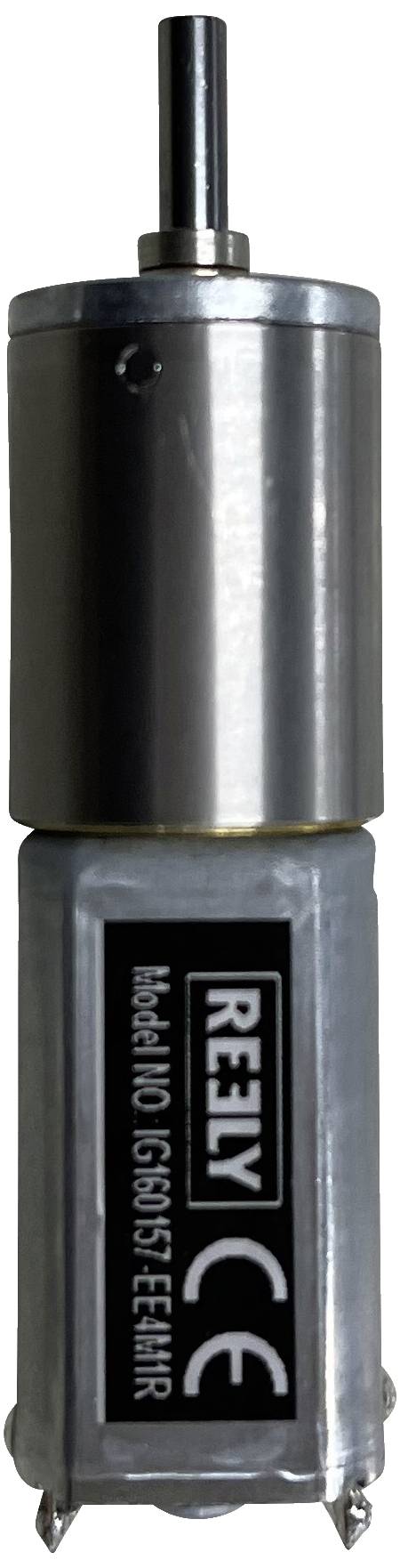

Reely RE-7842777 Gearmotor 12 V 1:157
EAN:
Part number:
Item no:
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14 days return policy included
Highlights & Details
REELY 12V Gear Motor IG16-04 1:157
- Planetary gearbox
- Sleeve bearing
Technical specifications
- Gear motor torque & speed:
- Reduction ratio: 1/157
- Rated voltage (V): 12
- Rated torque (gf-cm) = 550
- Rated speed (rpm) = 39
- Rotation direction: clockwise
- Motor data:
- Rated torque (gf-cm): 6.1
- Rated speed (rpm): 6200
- Rated current (mA): less than or equal to 85
- No load speed (rpm): 8000
- No load current: less than or equal to 50
- Rated output (W): 0.394
- Operating voltage
12 V
- Product type
Gearmotor
- Nominal voltage
12 V
- Dim
(Ø x H) 16 mm x 16 mm
- Gear reduction
1:157
- Weight
45 g
- Non-stop rotational speed
39 U/min
- Max. torque
550 g/cm
- Idle speed (nominal)
8000 U/min
- Idle current
50 mA
- Motor type
carbon brush/metal brush
- Width
16 mm
- Height
16 mm
- Length
60.45 mm
- (Ø)
16 mm
- Gear reduction (details)
1/157
- Shaft Ø
3 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614259 Reely RE-7842777 Gearmotor 12 V 1:157
Description
Reely 12 V gear motor for universal use in all areas of model construction.
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- 10T pinion
