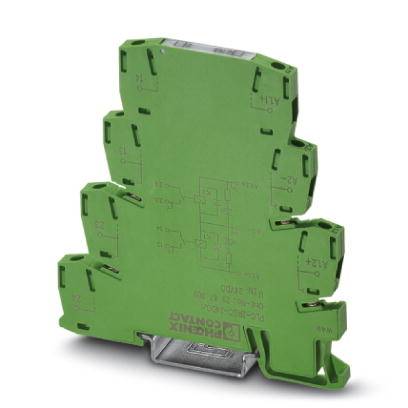

Relay Module PLC-2RSC-24DC/ 1 2987309 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Interface relay
Contact type
2 makers
Nominal voltage
24 V DC
Switching voltage (max.)
30 V DC
250 V AC
Switching current (max.)
3.5 A
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 34.87 / piece)
€ 483.19
-28 %
€ 348.74
plus VAT.
Highlights & Details
Relay Module PLC-2RSC-24DC/ 1
- Industrial packaging, pack of 10
Technical specifications
- Product type
Interface relay
- Type
PLC-2RSC-24DC/ 1
- Connection
Screw terminal
- Contact type
2 makers
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
30 V DC
250 V AC
- Switching current (max.)
3.5 A
- Features
+ LED
+ flyback diode
+ reverse polarity protection
IP20
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- Depth
86 mm
- Width
6.2 mm
- Height
80 mm
- Dim
(W x H x D) 6.2 x 80 x 86 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 705344 Relay Module PLC-2RSC-24DC/ 1 2987309 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 705344 Relay Module PLC-2RSC-24DC/ 1 2987309 Phoenix Contact
Description
The PLC-2R...24DC/1 is a relay module with two integrated and independently controllable relay. An enormous channel density of just 3.1 mm width per switching channel is attained. The maximum switching current per relay is 3.5 A.
