Buy Renkforce UB300 2x USB copy station USB A (USB 2.0) portable

A black electronic device with a blue display, three USB ports, and four buttons, numbered from 1 to 3.

Black control panel with blue screen, three USB ports and indicator lights. Two control buttons in the top right.

'UB300 Flash Duplicator' instruction manual, device with LCD screen, three buttons and power adapter. Packaging shows 25MB performance capacity.

Electronic device with a display and multiple buttons. Two USB interfaces with connected devices are in the foreground.

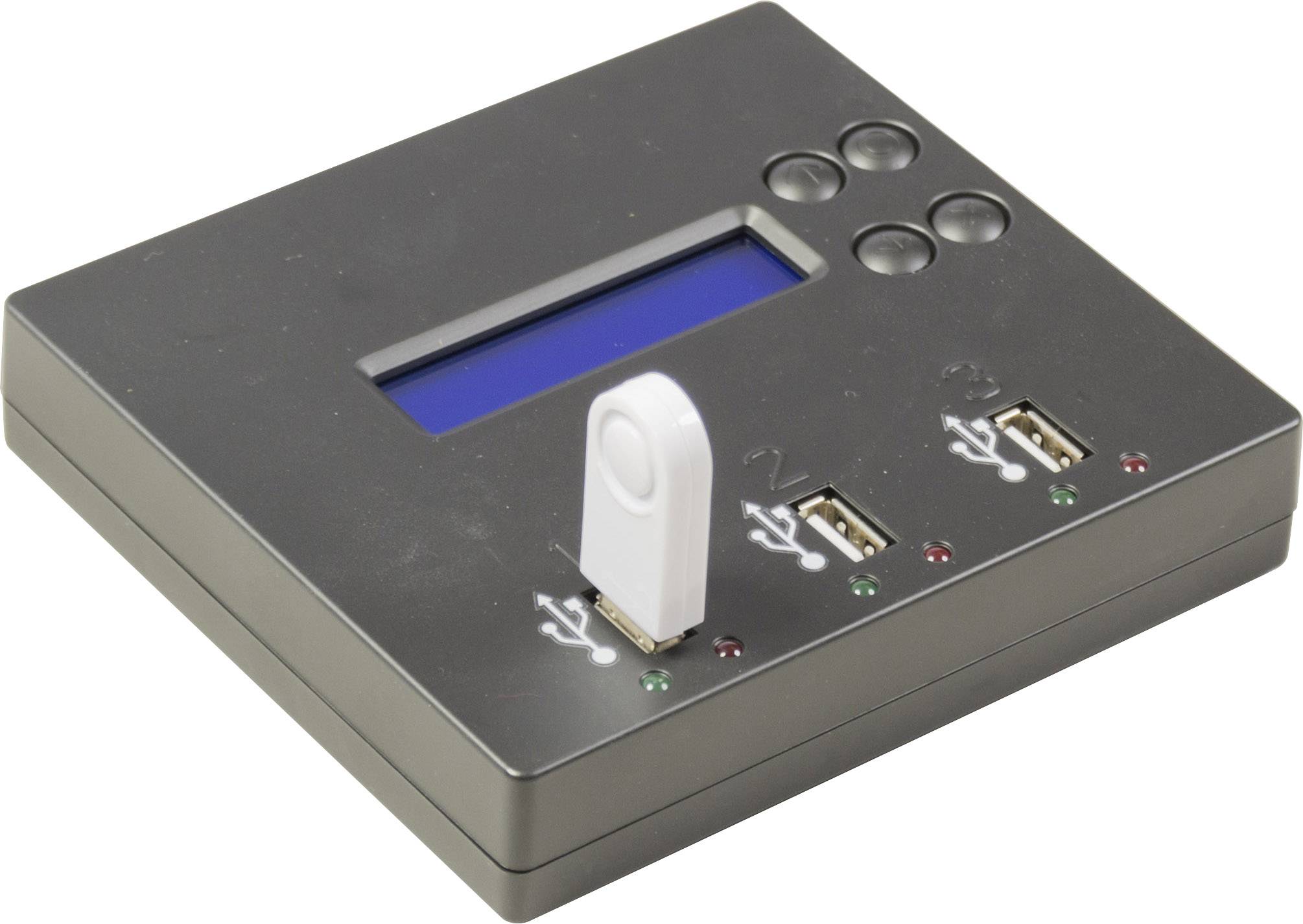

A black device with a small screen, five buttons and three USB ports. A USB stick is plugged into the middle port.

An electronic device with three white USB sticks, a small display and several buttons, most likely for data monitoring.

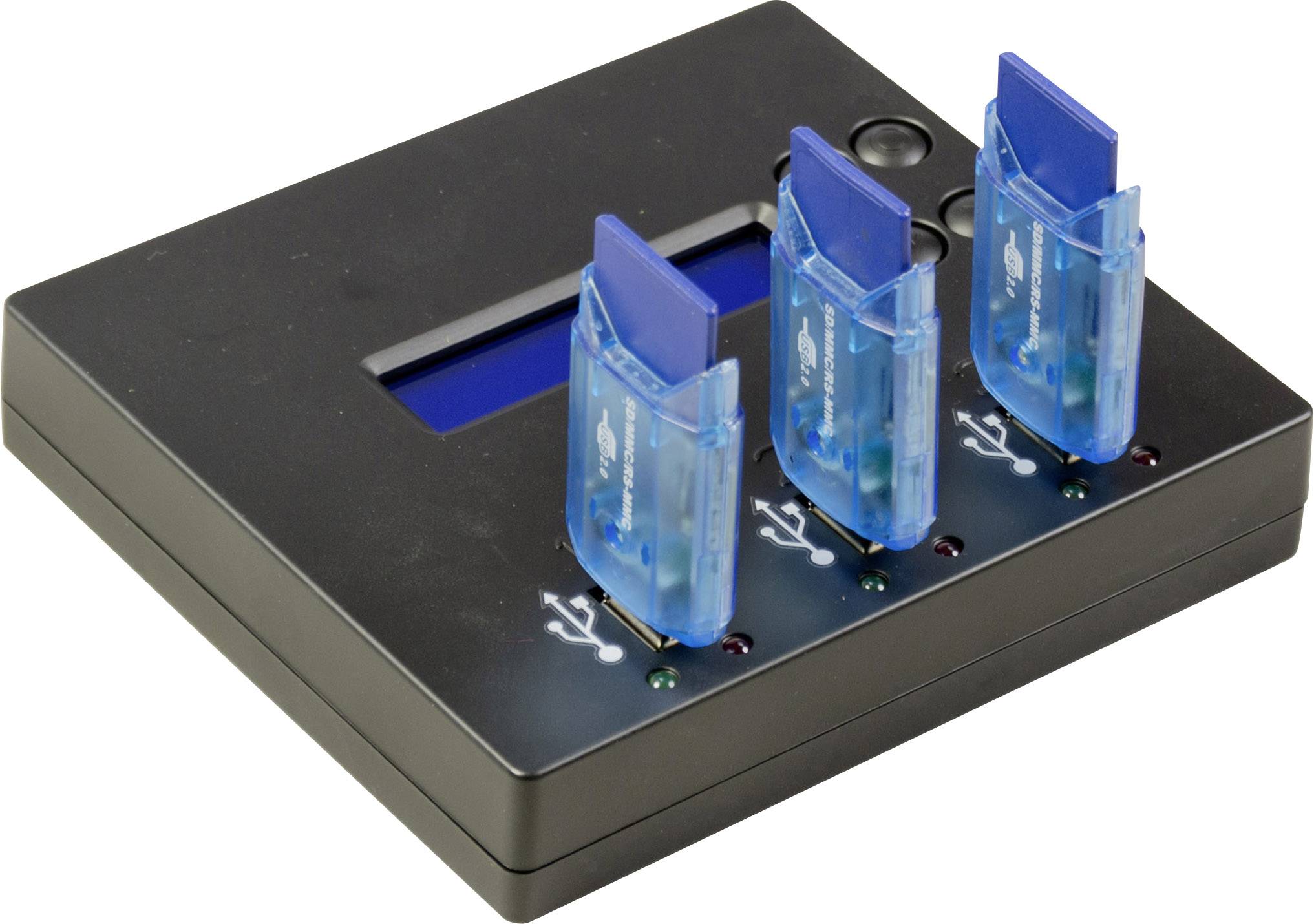

A black USB device with three blue memory card adapters plugged in. Each adapter has a small LED indicator.

Black electronic charger with three USB ports and a small display, showing 5V/DC, 2A next to a power on/off switch.

Programmable USB hub with display and control buttons, showing data and featuring four USB ports. Power cable connected.

1/9

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

25 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Report legal concerns

Highlights & Details

U-Reach UB300 USB copy station

Speed transfers up to 2GB/M
Professional quality inspection tool-H3/H5 and capacity check
Supports 2 duplication modes-Quick Copy and Whole Media
Supports Windows (NTFS), FAT16/32/64, and Linux (ext2/3/4)

Technical specifications

Product type: USB copy station

No. of inputs: 1 x

Interfaces (input): USB A (USB 2.0)

No. of outputs: 2 x

Interfaces (output): USB A (USB 2.0)

Copy mode: 1:1 copy

Delete function: No

Features: portable

Supported memory size: 1500 GB

Transfer rate: 6 MBit/s

Weight: 94 g

Width: 130 mm

Height: 25 mm

Depth: 120 mm

Documents & Downloads

Datasheet

Datasheet 986898 Renkforce UB300 2x USB copy station USB A (USB 2.0) portable

User & Safety Instructions

User & Safety Instructions 986898 Renkforce UB300 2x USB copy station USB A (USB 2.0) portable

Conformity certificate

Conformity certificate 986898 Renkforce UB300 2x USB copy station USB A (USB 2.0) portable

Description

Professional Quality inspection
H3 Test: Only reads to verify the maximum capacity quality (All data will be 100% safe).
H5 Test: Overwrites then reads to verify maximum capacity quality (All data will be erased).
Capacity Check: Analysis of device’s available capacity

Quick Copy Mode
Quick copy mode copies only Data and System area highly increasing the efficiency.

Features

Fast test function on defective flash devices
High copy output of up to 33 MB per second
Supports the following media: USB 1.1 / 2.0 (SD/SDHC/MMC/miniSD/microSD/CF)
Copies data on 1 or 2 USB sticks
LCD display
Keys: Up/Down/OK/ESC)
LED red/green (on each slot)
Power supply: 5 A, 2 A

Scope of delivery

UB300 Duplicator x1
Power adaptor x1
Manual.
