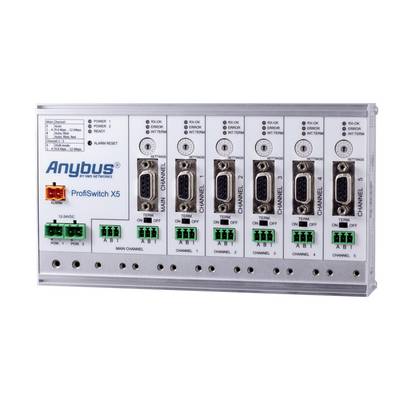

Repeater Relays, Profibus Anybus ProfiSwitch X5
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,789.08 / piece)
€ 1,789.08
plus VAT.
Highlights & Details
ProfiSwitch X5
- No restrictions on cable length
- A Master for different types of network
- No design limitations
- Saves costs
- Connect to each PB device and suitable for all DP cables
- Each channel is short-circuit proof
- Devices can be removed and added during operation
Technical specifications
- Adjustable baud rate per channel
- Connector: Screw connection and DB9
- IP 20 protection class
- Product type
Repeater
- Interfaces
Relays
Profibus
- Type
ProfiSwitch X5
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-24 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 128 mm x 111 mm
- Height
111 mm
- Width
128 mm
- Manufacturer part #
17030X
- Interfaces
6 x Profibus DP (DB9)
1 x potential-free fault relay
Documents & Downloads
Datasheet
Datasheet 2986317 Repeater Relays, Profibus Anybus ProfiSwitch X5
User & Safety Instructions
User & Safety Instructions 2986317 Repeater Relays, Profibus Anybus ProfiSwitch X5
Description
The ProfiSwitch X5 modernizes PROFIBUS network architectures for the next generation. The transparent repeater hub can be used to set the baud rate for each channel individually. A simple rotary switch opens doors to a new landscape with reliable and cost-saving applications.
The ProfiSwitch X5 eliminates traditional PROFIBUS networks with baud rate restrictions associated with spur lines, additional resistance, single master systems, poor cable segments and cable length restrictions. Design constraints with legacy systems or new systems are avoided, creating unparalleled customizable network designs. A main PLC can now act as a Master, with the ability to further expand the network, perform hot-swap of spur lines, reduce repeater installation. All this without limiting the speed performance. The advanced technology of the ProfiSwitch X5 converts the main channel to other transmission speeds and acts as a transparent proxy without disruption to the host system (similar to PA links). With limitless applications the ProfiSwitch X5 your device to create networks without the traditional restrictions.
This text is machine translated.
The ProfiSwitch X5 eliminates traditional PROFIBUS networks with baud rate restrictions associated with spur lines, additional resistance, single master systems, poor cable segments and cable length restrictions. Design constraints with legacy systems or new systems are avoided, creating unparalleled customizable network designs. A main PLC can now act as a Master, with the ability to further expand the network, perform hot-swap of spur lines, reduce repeater installation. All this without limiting the speed performance. The advanced technology of the ProfiSwitch X5 converts the main channel to other transmission speeds and acts as a transparent proxy without disruption to the host system (similar to PA links). With limitless applications the ProfiSwitch X5 your device to create networks without the traditional restrictions.
This text is machine translated.
