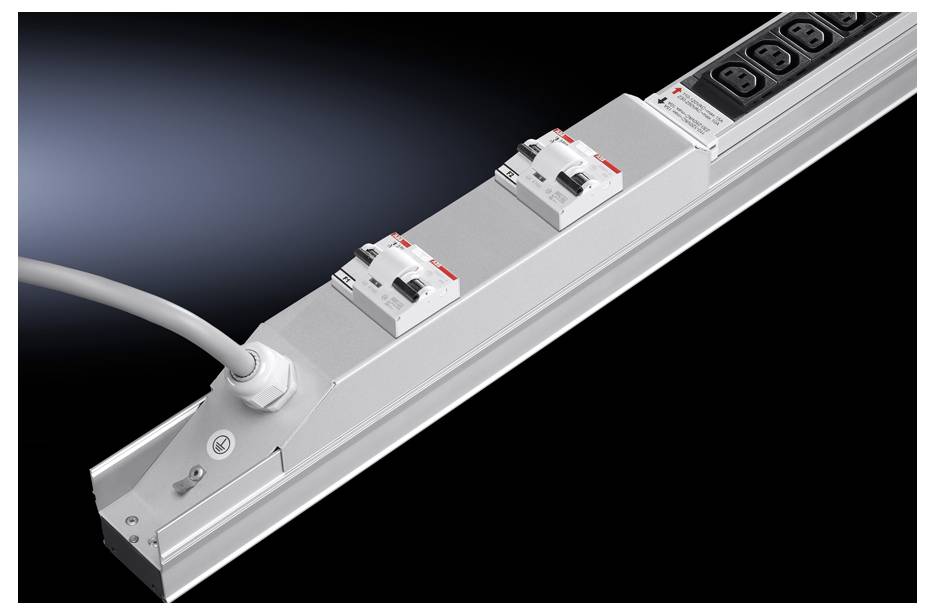

Rittal 7856323 7856323 PSM busbars
EAN:
Part number:
Item no:
Number
Total (€ 528.57 / piece)
€ 528.57
plus VAT.
Technical specifications
- Product type
PSM busbars
- Outlets
6
- No. of IEC C19 16A sockets
6
- Factory colour
Aluminium
- Weight
0.000
- Material
Metal
- Cable length
3 m
32 A
Aluminium
FALSE
Anodised
FALSE
Other
FALSE
FALSE
Metal
IP20
FALSE
Matt
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 629210 Rittal 7856323 7856323 PSM busbars
Description
The modular system allows a basic configuration of the racks by a vertical carrier rail with 1-/3-phase supply. In the carrier rail, the various socket modules can be engaged to supply the active components. And this during operation, since the carrier profile is developed contact protected.
This text is machine translated.
This text is machine translated.
Features
- Benefits: modules during operation can be retrofitted.
- Technical specifications:
- - Each socket module accesses to the carrier rail from a phase, depending on the insertion direction of feed or a redundant supply.
- - Depending on the version 1-/3-phase structure with a max. current of 2 x (3 x 16A/32A).
- Redundant power supply 3-phase possible.
- The redundant circuit is completely separated from the 3 phases of the carrier rail
- - The modules can be fitted with a built-in overcurrent protection, this with high current only the module concerned is switched off. The other modules remain in operation
- Overvoltage protection is integrated into the inlet.
- - Various modules with current measurement and switchable outputs
