Rohde & Schwarz R&S® LCX200COM RLC circuit Digital

A digital measuring device with a screen displays measurement values: Capacitance 48.025 µF, Resistance 15.338 kΩ, Impedance 66.279 Ω.

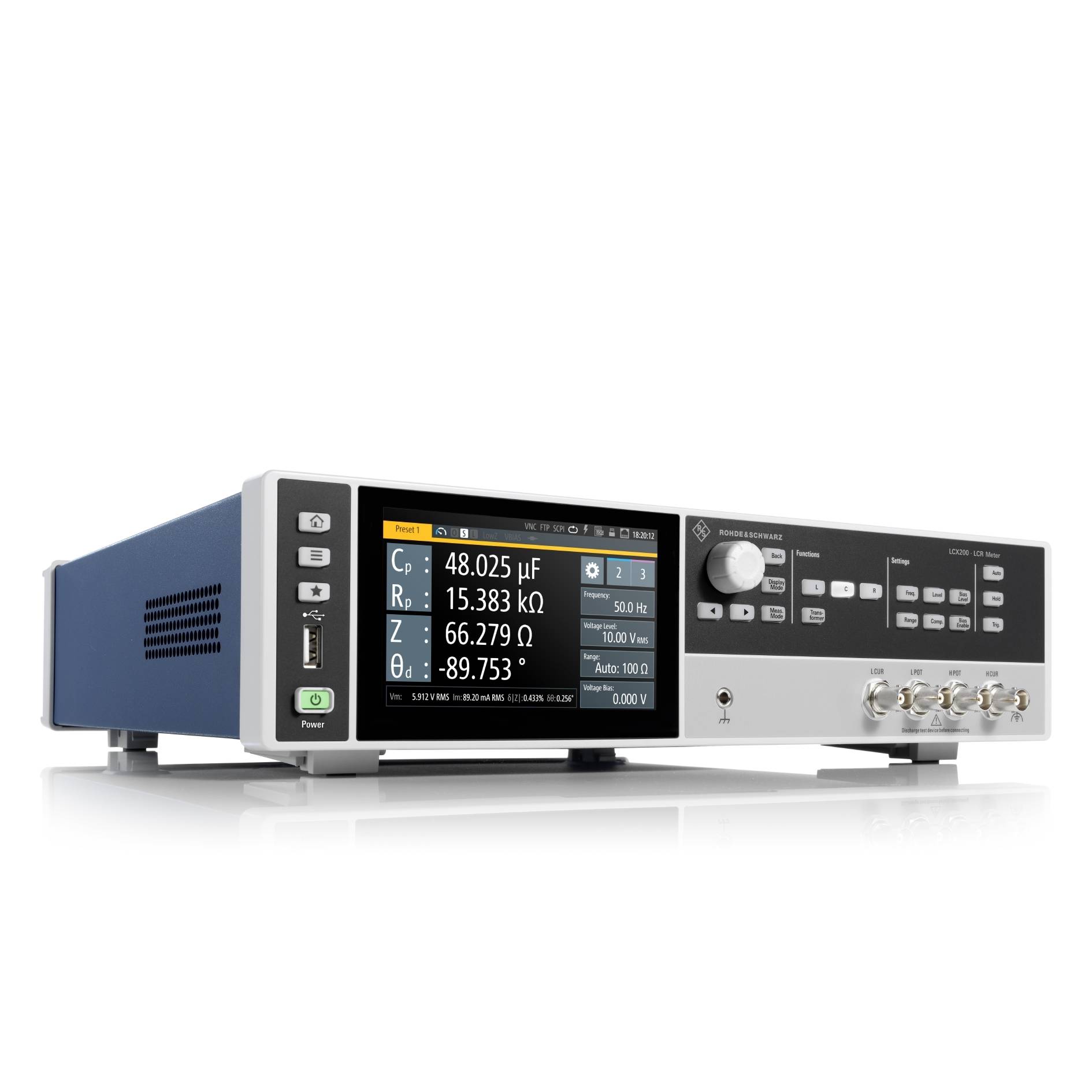

A digital measuring instrument for analysing electrical parameters. The display shows values for capacitance, resistance, impedance, and conductance.

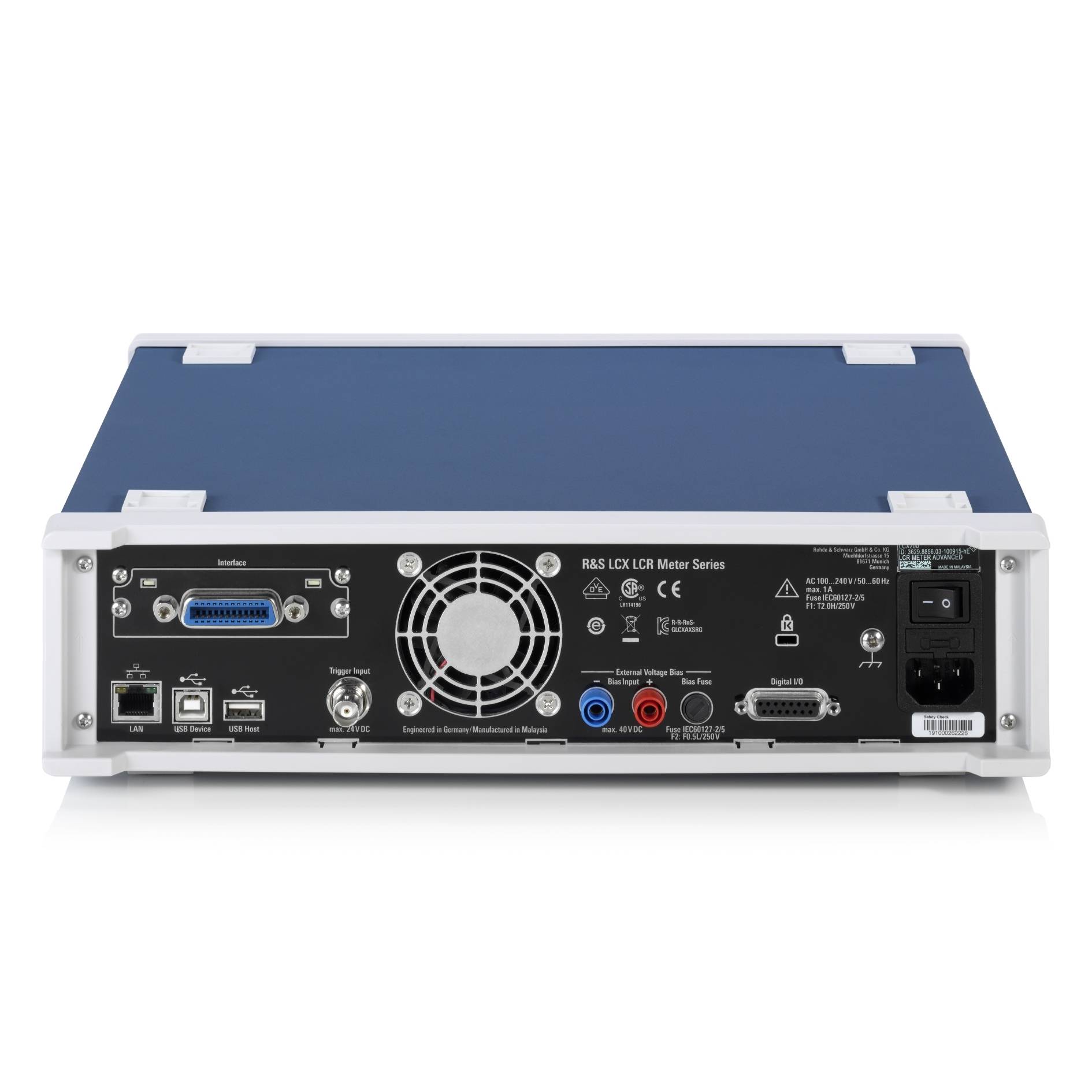

Back of a measuring device with various connection options, including connections for power supply, data, and inputs.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23,869.00 / piece)
€ 23,869.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Display: WVGA touch display, 800 x 480 pixels, 12.7 cm (5")
Product type

RLC circuit

Inductivity reading range

1 µH bis 100 H

Temperature

-180 to +180 °C

Basic accuracy

0.05 %

Frequency range

4 Hz to 500 kHz

Interfaces

USB

LAN

Power supply (details)

100 - 230 V AC

Height

99 mm

Width

362 mm

Length

357 mm

Weight

2700 g

Manufacturer's standards (no certificate)

Type

R&S® LCX200COM

Display

Digital

Dim

(L x W x H) 357 x 362 x 99 mm

Reading frequency

4 Hz to 500 kHz

Documents & Downloads

Datasheet

Datasheet 2622883 Rohde & Schwarz R&S® LCX200COM RLC circuit Digital

User & Safety Instructions

User & Safety Instructions 2622883 Rohde & Schwarz R&S® LCX200COM RLC circuit Digital

Description

The R&S®LCX LCR meters are versatile and measure extremely accurately and quickly. Therefore, they are perfectly suitable for demanding applications in research, development and production. With two device models and different options, applications up to 10 MHz measuring frequency are covered. Internal and external bias functions, comprehensive analysis options and versatile test adapters round off the wide range of applications.

This text is machine translated.

Features

  • R&S®LCX200 LCR METER ADVANCED R&S®LCX-K106 ADVANCED ANALYSIS OPTION R&S®LCX-K107 BINNING OPTIONR&S®LCX-K108 EXTENDED BIAS OPTIONR&S®LCX-K210 FREQUENCY UPGRADE 10 MHZ

Scope of delivery

  • Incl. power cable
