Rothenberger 1000003876 Press ring
EAN:
Part number:
Item no:
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
14-day return policy included
Highlights & Details

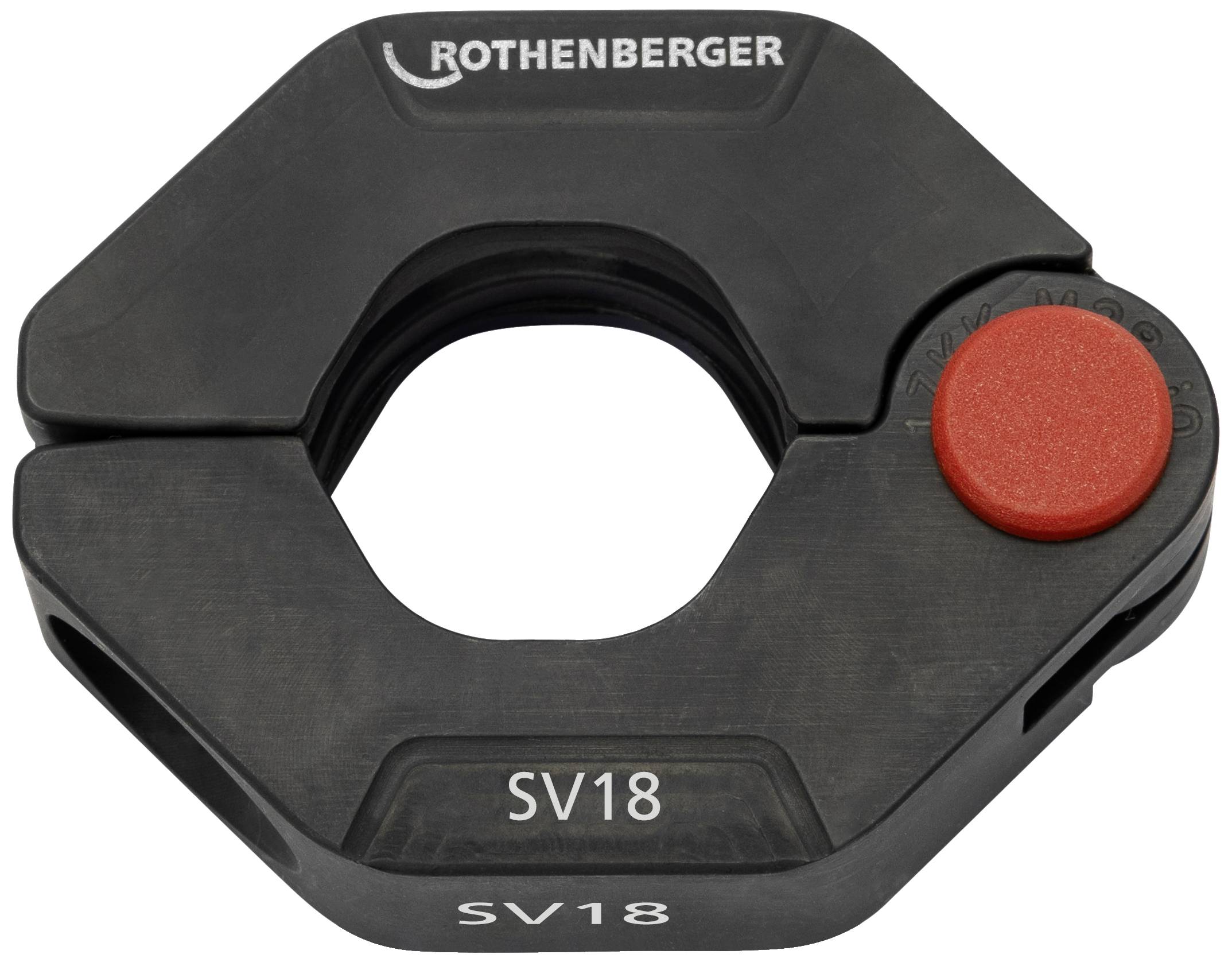

Press ring SV18
- Locking position for single-handed positioning of the press ring on the fitting180° swiveling allows a freely adjustable position of the pressCompatibility to compact and standard intermediate jawDURA LAZR TEC for 40% greater hardness and 100% more pressing cyclesFlame-free connection: No more processing with open flame requiredSecure sealing: Reliable and permanent connection by 3-point crimpingFast, simple and economical installation
Technical specifications
- Product type
Press ring
- Compatible with diameters of
18 - 35 mm
- Suitable for diameters of (max.)
35 mm
- Suitable for pipe diameter (min.)
18 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2797725 Rothenberger 1000003876 Press ring
Description
The high-quality pressure rings of the contour SV have been specially designed and developed by Rothenberger for pressing applications on metallic piping systems. This type of pressure ring is used by Ideal users to press fittings in complex assembly situations in a system-compliant manner. Thanks to the Rothenberger DURA LAZR TEC® technology - an innovative, partial laser hardening method - precise and safe pressing is ensured with a simultaneous increased service life. As a result, this results in reduced wear and a doubling of the crimp cycles compared to the non-treated press tools. Furthermore, long-term corrosion protection supports the resistance of the crimp rings/jaws. Using a special high-capacity steel, the Rothenberger press rings are suitable for all commercial presses with a constant axial thrust force of 19 kN or 32 kN.
This text is machine translated.
This text is machine translated.
