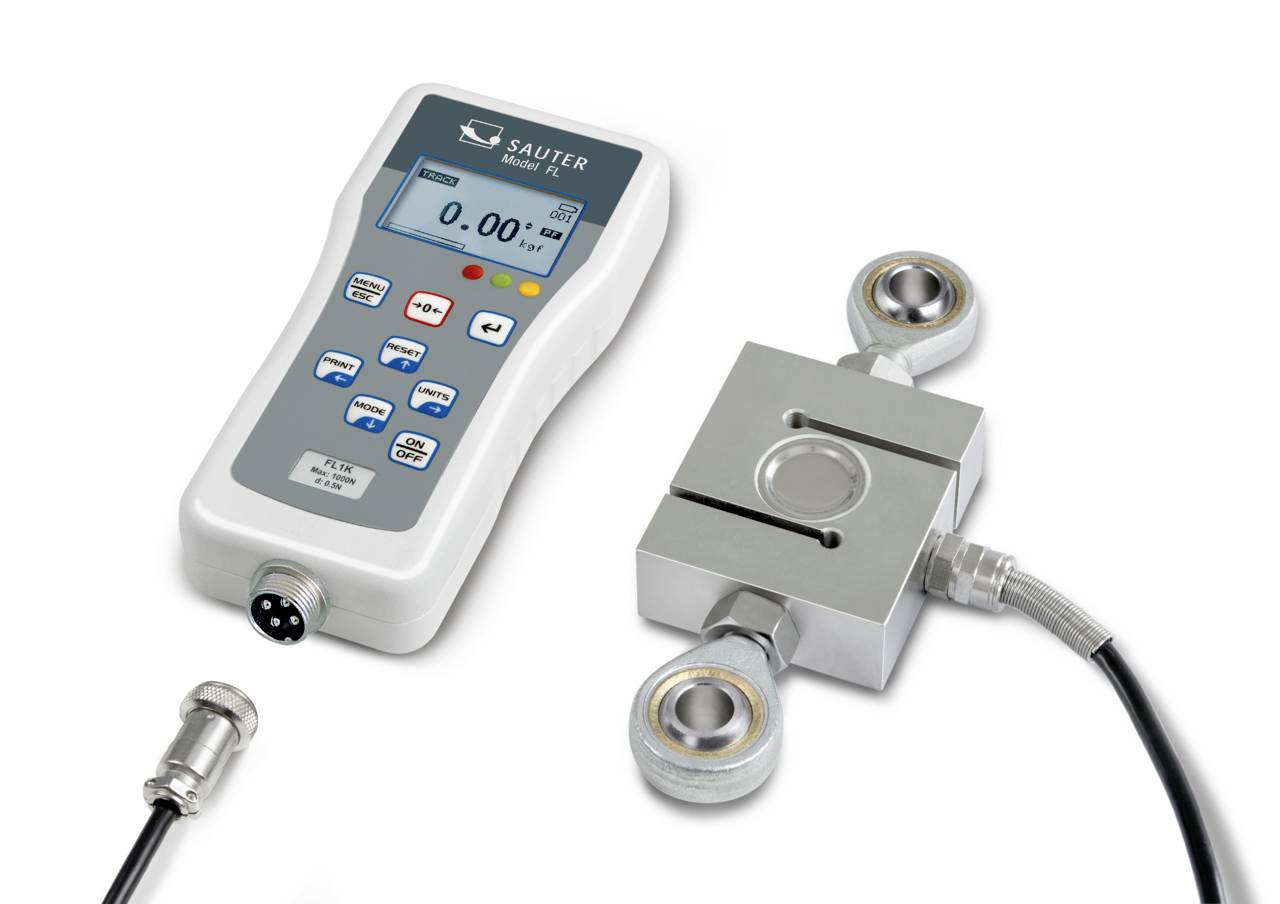

Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 849.00 / piece)
€ 849.00
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
- High performance digital force meter with graphic supported display for train and compression measurements with external measuring cell
- This text is machine translated.
Technical specifications
- Material housing: Metal, painted
- Dimensions of housing (WxDxH) 170×75×30 mm
- Dimensions completely mounted (WxTxH) 170×75×30 mm
- Load capacity (tensile force): Swivel head
- Display type: LCD
- Display digit height: 8.5 mm
- Power supply included: Rechargeable battery & mains adapter
- NiMH battery type
- Battery charging time 8 h
- Battery life - backlight on 8 hours
- Battery life - backlight off: 10 hours
- Input voltage power supply unit / current [Max]: 100 V - 240 V
- Plug-in power supply/adapter for countries – included in delivery: EURO,CH
- Mains power supply/adapter for countries - Optional: EURO,FROM,UK,US,CH
- Wall power supply type: Wall power supply
- Power supply included: Yes / No: Yes
- Battery included: Yes / No: No.
- Battery included: Yes / No: Yes
- Interfaces: RS-232 standard,USB device,analogue (0 +/-2V)
- Force measuring range [Max] (N): 2.5 kN
- Readability Force [d] (N): 1 N
- Overload protection (% of [Max]): 120%
- Tolerance (% of [Max]): 0.2%
- Measuring head Measuring frequency 1000 Hz
- Force directions: Train, pressure
- Product type
Force gauge
- Display
LCD
Manufacturer's standards (no certificate)
- Power supply (details)
Plug-in power supply, rechargeable battery
- Dim
(L x W x H) 175 x 170 x 30 mm
- Weight
550 g
- Resolution (force)
1 N
- Basic accuracy
0.2 %
- Reading frequency
1000 Hz
- Width
170 mm
- Height
30 mm
- Length
175 mm
- Interfaces
Analogue
RS232
USB device
- Depth
75 mm
- Series
FL
- Max. ambient temperature
35 °C
- Min. ambient temperature
15 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3776612 Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3776612 Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
Information
Information 3776612 Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
Security datasheet
Security datasheet 3776612 Sauter FL 2K Force gauge Manufacturer's standards (no certificate)
Description
Features
- Premium-Power meter with external Measuring cell, towing eyes included in delivery
- Reversible display with backlight
- Peak-hold function for recording the peak value or track function for a continuous measurement display
- Metal housing for long-term use in robust ambient conditions
- For mounting on all Sauter test stands from 1 kN
- Capacity display: An increasing light band shows the measuring range that is still available
- Measuring with tolerance range (limit value function): Upper and lower limit values can be set, in train and pressure direction. The measurement process is supported by an optical signal
- Internal memory for up to 500 measured values
- Continuous analog output: Linear voltage signal depending on load (-2 to +2 V)
- USB data interface, as standard
- Selectable units N, kN, kgf, ozf, lbf
- Supplied in sturdy carrying case.
