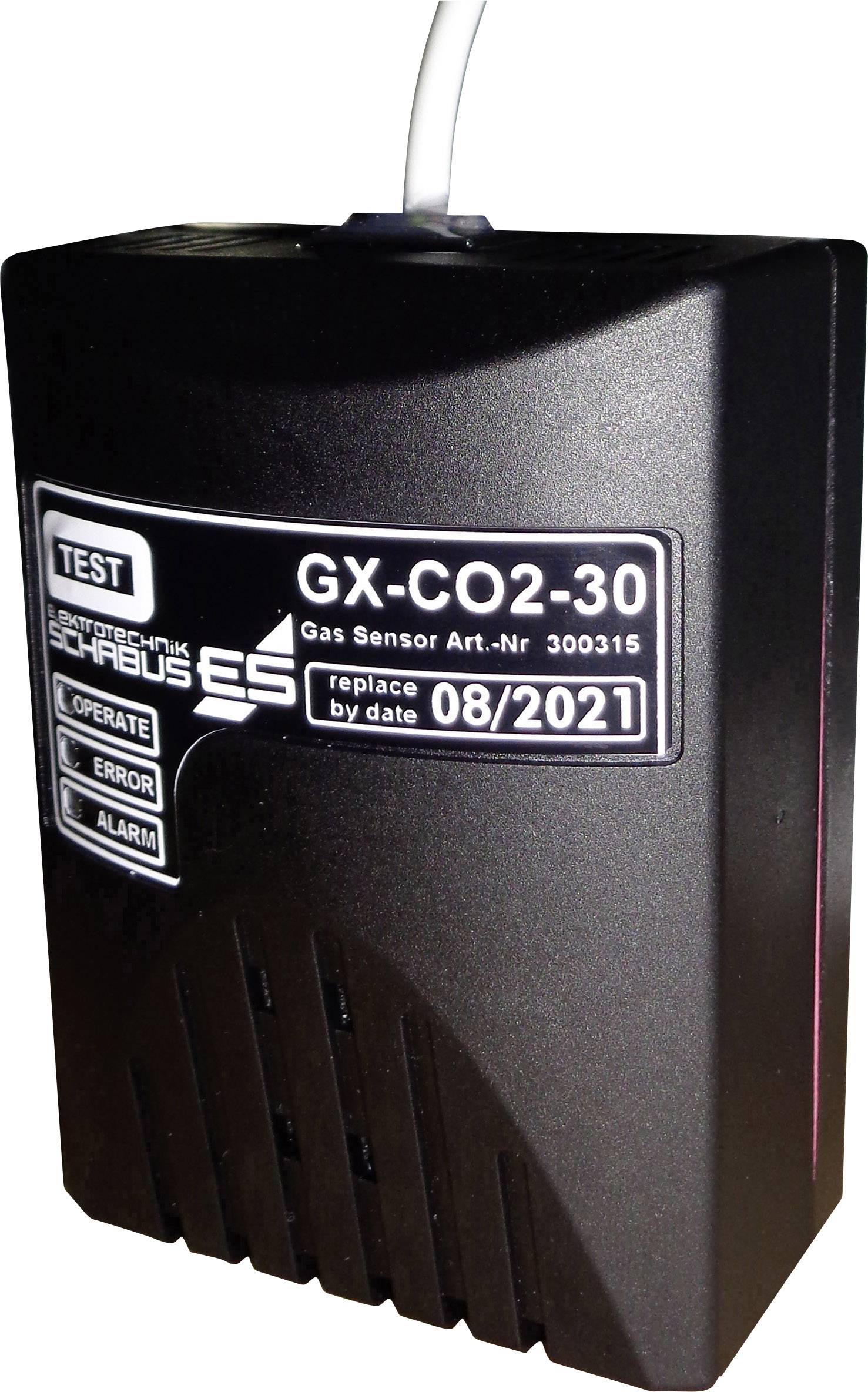

Schabus GX-CO2-30 Gas sensor detects Carbon dioxide
EAN:
Part number:
Item no:
Number
Total (€ 231.09 / piece)
€ 247.90
-7 %
€ 231.09
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Carbon dioxide gas sensor GX-CO2-30
- For dry interiors
- External NDIR sensor for the gas alarm system GX-A1
Technical specifications
- Operating range: 0 °C to +50 °C.
- Operating voltage 5 V
- Protection class: IP54
- Cable length 2.5 m.
- Cable diameter. up to 35 mm.
- Internal buzzer 90 dB/10 cm
- Product type
Gas sensor
- detects
Carbon dioxide
- Width
60 mm
- Height
79 mm
- Depth
41 mm
- Content
1 pc(s)
- Dim
(W x H x D) 60 x 79 x 41 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2111182 Schabus GX-CO2-30 Gas sensor detects Carbon dioxide
Conformity certificate
Conformity certificate 2111182 Schabus GX-CO2-30 Gas sensor detects Carbon dioxide
Description
The external sensor is optimized for the gas warning device GX-A1 (order no. 752161) and can also be connected to the GX-HS (order no. 752028).
The NDIR sensor was set to an alarm threshold of 2.5 - 3.0% vol. CO2 design. Behind the housing openings there is a high-tech diaphragm, which is to keep water away from the electronics. Thus, the sensor is not waterproof but does not take damage immediately if water splashes hit the sensor from the normal cleaning activity.
The connection cable of the sensor can be extended.
This text is machine translated.
The NDIR sensor was set to an alarm threshold of 2.5 - 3.0% vol. CO2 design. Behind the housing openings there is a high-tech diaphragm, which is to keep water away from the electronics. Thus, the sensor is not waterproof but does not take damage immediately if water splashes hit the sensor from the normal cleaning activity.
The connection cable of the sensor can be extended.
This text is machine translated.
Features
- Detection of carbon dioxide (CO2) in all gas plants with CO2 from bottles, also dry ice storage
- Only suitable for dry interiors
- Integrated buzzer for direct alarm
- LED displays for operation, fault, alarm directly on the sensor.
Scope of delivery
- Gas sensor
- Fitting Material
- User manual.
