Buy Schlegel STLI_M03 Pushbutton momentary White (Ø) 22.3 mm IP65, IP67 1 pc(s) | Conrad Electronic

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

A silver, round button with black threading, used for mechanical or electronic devices for control or operation.

Image similar

A silver, round button with black threading, used for mechanical or electronic devices for control or operation.

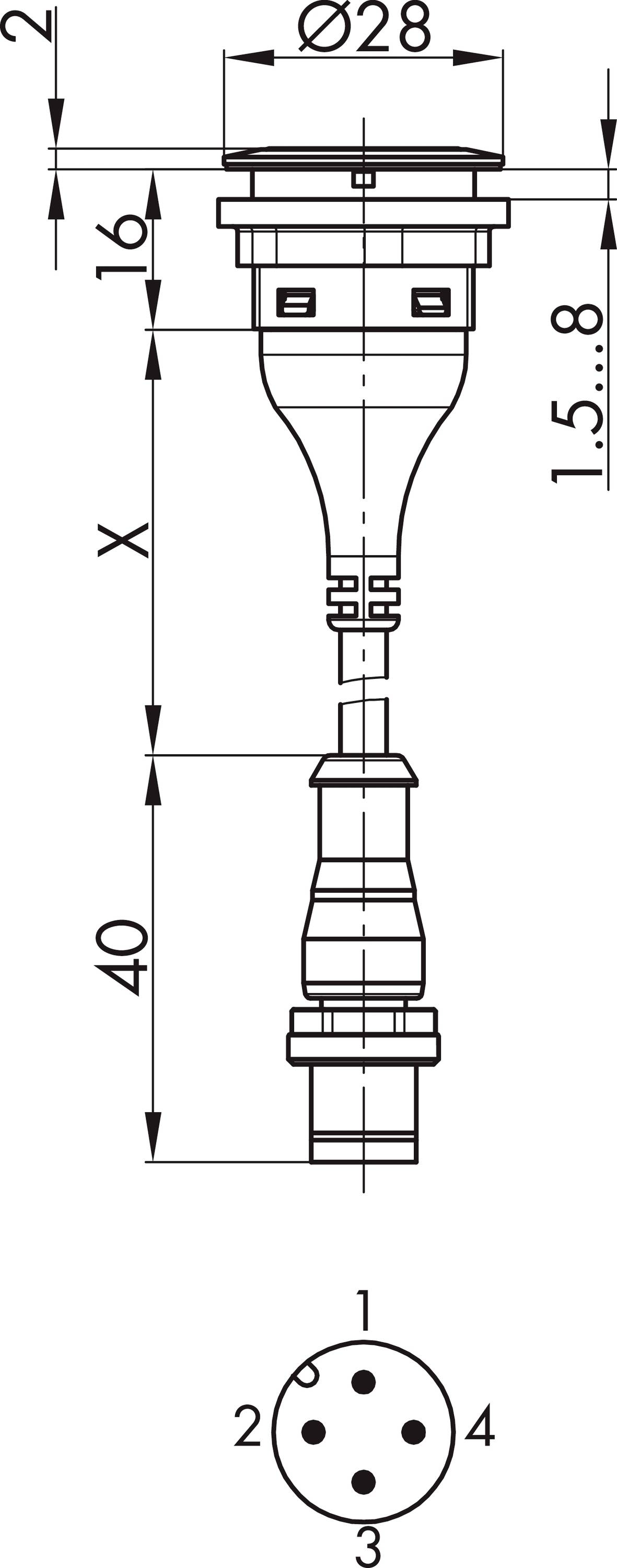

Technical drawing of a plug with dimensions. Top: Diameter 28 mm, Length 40 mm. Bottom: Pin layout with labelling 1-4.

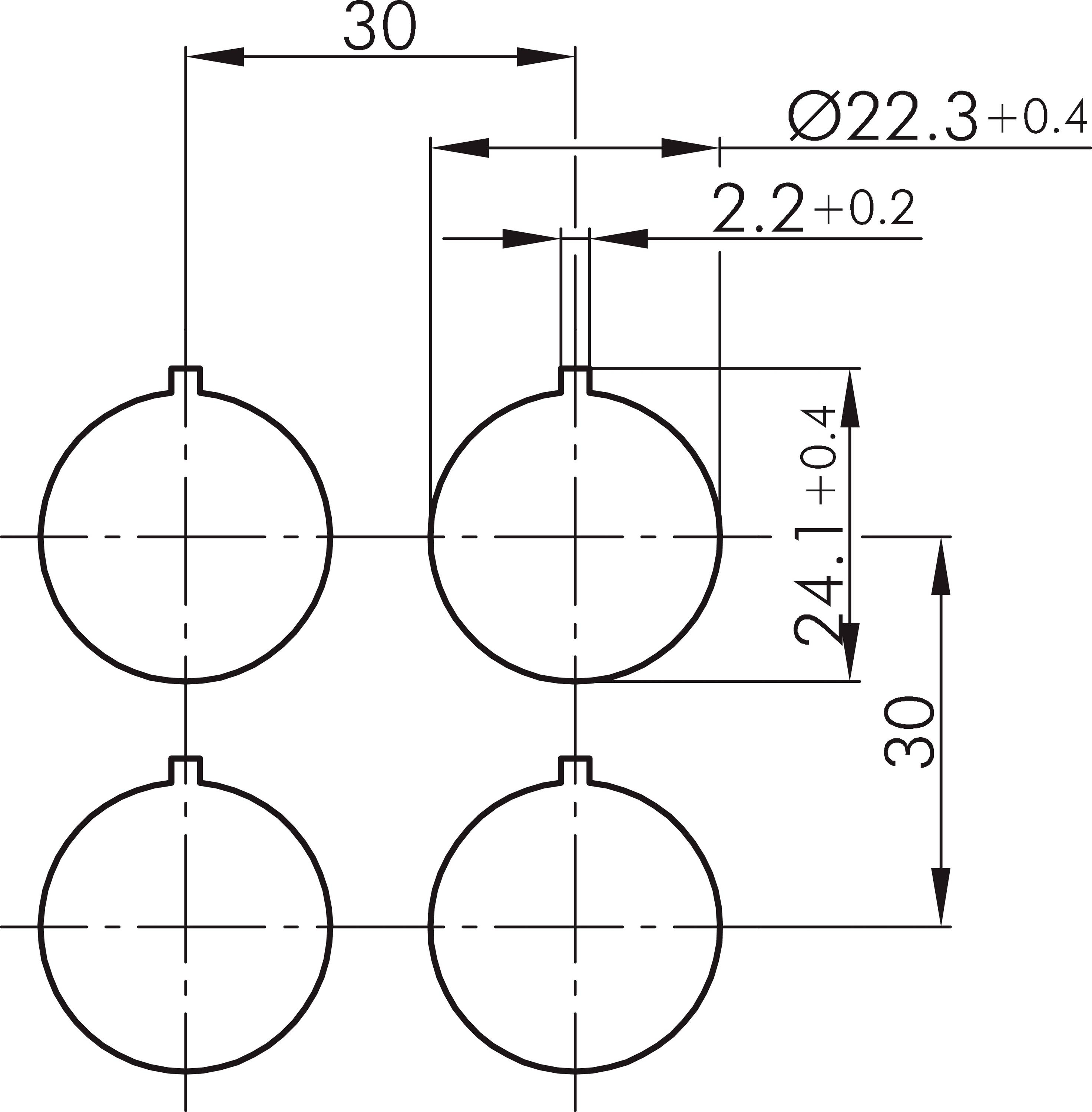

Technical Drawing: Four circles with a diameter of 22.3 mm, positioned horizontally and vertically at 30 mm intervals. Dimensions and tolerances indicated.

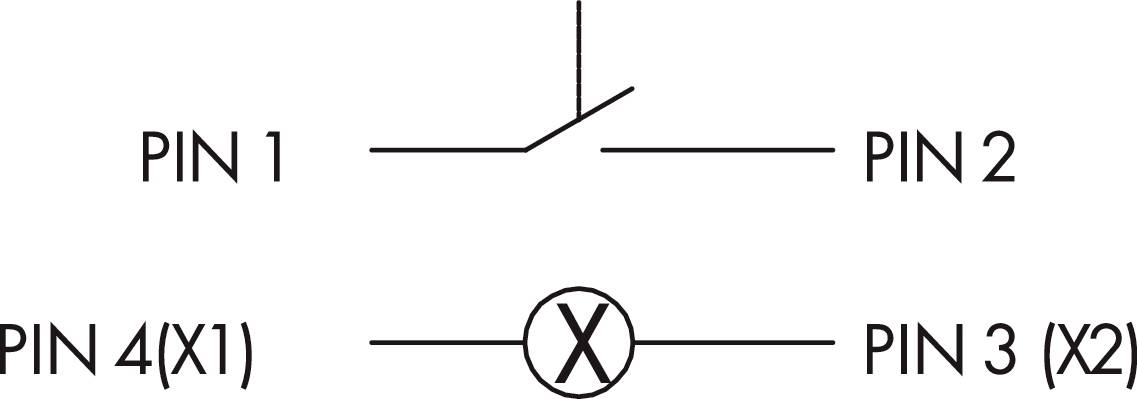

Switching symbol shows a changeover switch with pins: PIN 1 to PIN 2, PIN 4(X1) to PIN 3(X2), X in the middle connects the lower pins.

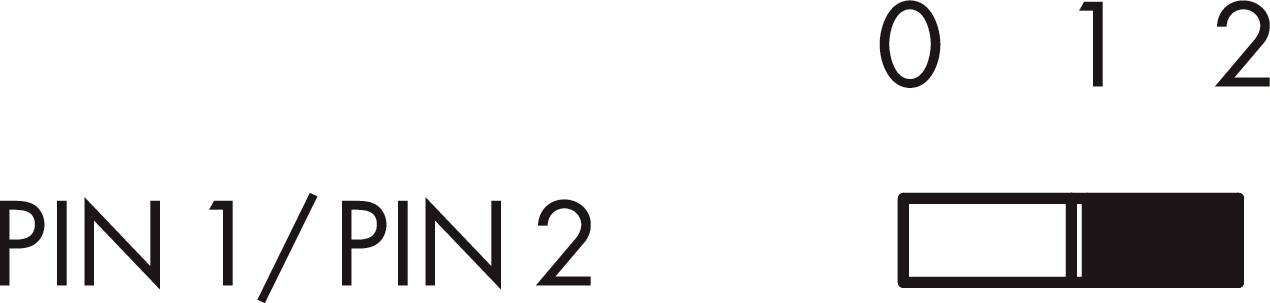

Image shows a settings display with the label 'PIN 1/PIN 2' and a slider positioned at level 1 out of a range of 0-2.

1/5

Image similar

Product type

Pushbutton

Lighting type

LED

Contact type

1 maker

Connection

M12 plug

Recess diameter

22.3 mm

Datasheet (PDF)

Deutsch (Deutschland)

Schlegel

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 62.71 / piece)

€ 62.71

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Technical specifications

Category: Push-buttonSHORTRON®-M12 seriesProtection class IP65/IP67 (from rear IP65)Lighting: YesCan be labeled: YesContact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 1SM12 4-pin connection With PUR cable, A coded; length 25 cm; wires 4 x 0.34 mm² (AWG22)Lamp holder: None, white 3 mm LED integratedSwitching function: Key functionStroke: 2.3 mmElectrical life: 1 MIO. Switching cycles DC13: Max. 100,000Mechanical lifespan 1 MIO Switching cyclesMounting hole dia. 22.3 mm.Cable length (X) 250±30 mmFront frame: Silver coloredOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: Round

Product type: Pushbutton

Switch/button features: illuminable

Casing/button colour: Silver

Functions: momentary

Type: Inscribable

Lighting type: LED

Colour: White

Bulb type: LED (monochrome)

Contact type: 1 maker

Contact material: AgNi

Connection: M12 plug

Min. temperature: -40 °C

Shape: Round

Max. temperature: +80 °C

(Ø): 22.3 mm

Durability: 1 million operations

Recess diameter: 22.3 mm

Electrical lifespan: 1 MIO Switching cycles DC13: Max. 100,000

Front panel cut-out: 22.3 mm

: IP65
IP67

Content: 1 pc(s)

Dim: (Ø) 22.3 mm

Type: STLI_M03

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865187 Schlegel STLI_M03 Pushbutton momentary White (Ø) 22.3 mm IP65, IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865187 Schlegel STLI_M03 Pushbutton momentary White (Ø) 22.3 mm IP65, IP67 1 pc(s)

Description

SHORTRON®-M12 light-selector switch latching 1S Cable length 25CM molded

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

What kind of Push Buttons are you looking for?

Buzzer
Door-operated switch
Push button (12V)
SMD button
Snap-action switch
Touch switch
