Schlegel STLO_M05 Pushbutton momentary White IP65, IP67 1 pc(s)

A round, silver push button with threading and a black base, used as an operating or control element in devices.

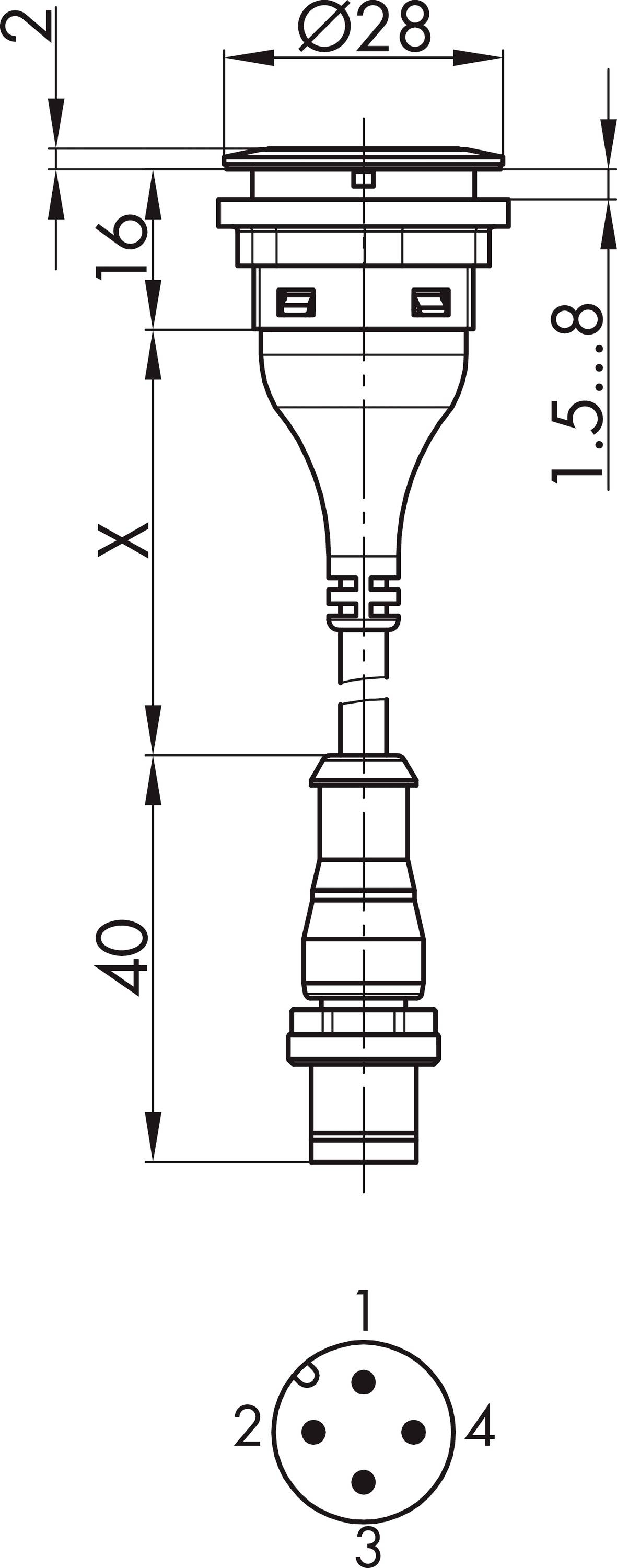

Technical drawing of a cylindrical component with dimensions: diameter 28 mm, height 40 mm. Detailed view of plug pins (1 to 4).

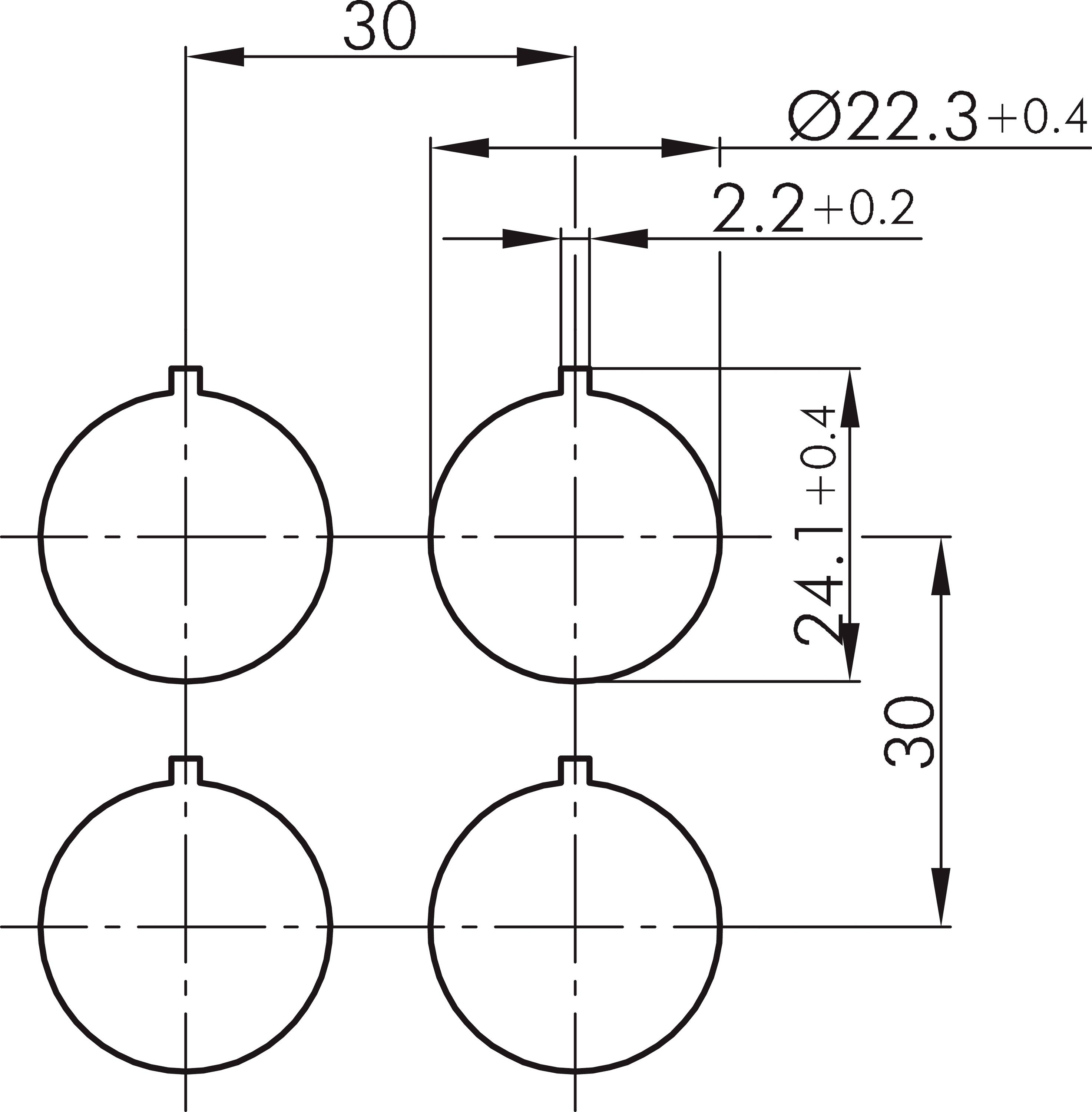

Technical drawing of four circles in a square pattern, with dimensions: Ø22.3 mm and spacings of 30 mm horizontally and vertically.

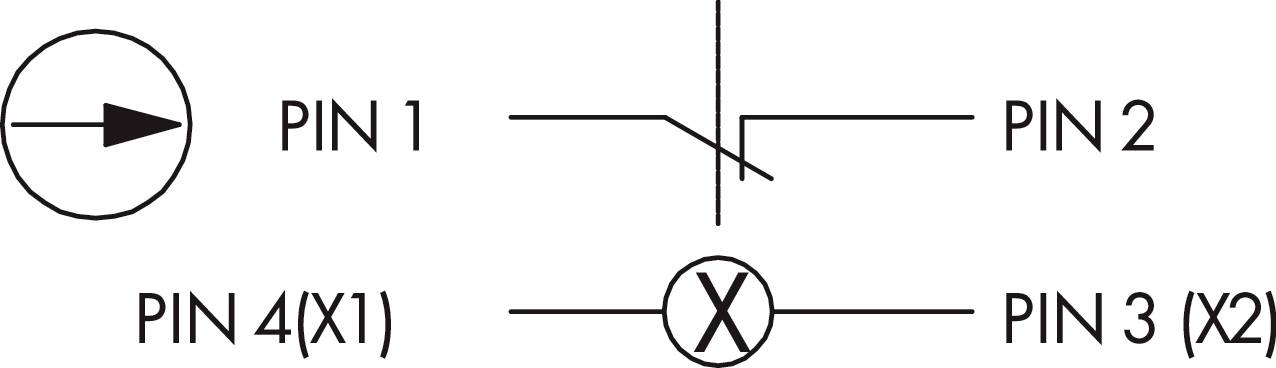

Circuit diagram shows a diode, a simple switch and a cross-connection, labelled with 'Pin 1', 'Pin 2', 'Pin 3 (X2)', 'Pin 4 (X1)'.

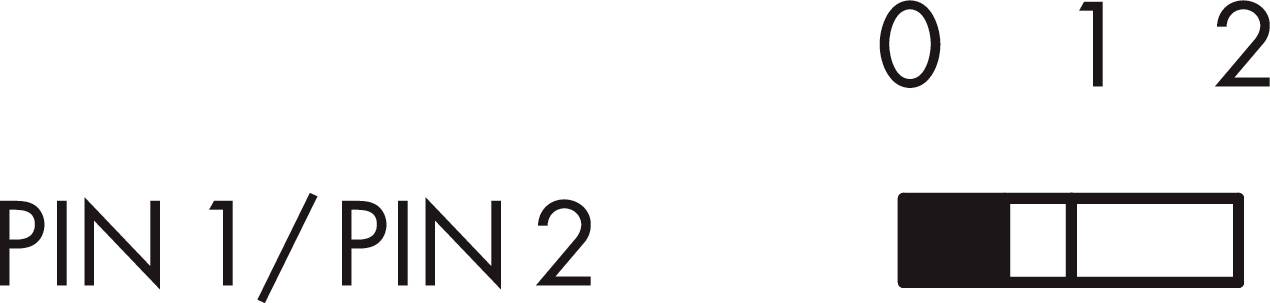

'PIN 1/PIN 2' with sliding switch, levels from 0 to 2. The switch is set to level 1.
1/5
Image similar
Product type
Pushbutton
Lighting type
LED
Contact type
1 breaker
Connection
M12 plug
Recess diameter
22.3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 68.56 / piece)
€ 68.56
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Push-buttonSHORTRON®-M12 seriesProtection class IP65/IP67 (from rear IP65)Lighting: YesCan be labeled: YesContact material AgNiStandards: EN 60947-5-1, EN 61058-1Contact type 1NCM12 4-pin connection With PUR cable, A coded; length 25 cm; wires 4 x 0.34 mm² (AWG22)Lamp holder: None, white 3 mm LED integratedSwitching function: Key functionStroke: 2.3 mmForced opening: Acc. To EN60947-5-1, Anh KElectrical life: 1 MIO. Switching cycles DC13: Max. 100,000Mechanical lifespan 1 MIO Switching cyclesMounting hole dia. 22.3 mm.Cable length (X) 250±30 mmFront frame: Silver coloredOperating temperature: -25°C ... 70 °C.Storage temperature: -40°C ... 80 °C.Shape: Round
Product type

Pushbutton

Switch/button features

illuminable

Casing/button colour

Silver

Functions

momentary

Type

Inscribable

Lighting type

LED

Colour

White

Bulb type

LED (monochrome)

Contact type

1 breaker

Contact material

AgNi

Connection

M12 plug

Min. temperature

-40 °C

Shape

Round

Max. temperature

+80 °C

Durability

1 million operations

Recess diameter

22.3 mm

Electrical lifespan

1 MIO Switching cycles DC13: Max. 100,000

Front panel cut-out

Ø 22.3 mm

IP65

IP67

Content

1 pc(s)

Type

STLO_M05

Documents & Downloads

Datasheet

Datasheet 2865189 Schlegel STLO_M05 Pushbutton momentary White IP65, IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865189 Schlegel STLO_M05 Pushbutton momentary White IP65, IP67 1 pc(s)

Description

SHORTRON®-M12 Light-selector switch latching 1N/O Cable length 25CM molded

This text is machine translated.
