Buy Schneider Electric GZ1LE10 GZ1LE10 Motor surge protector switch 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

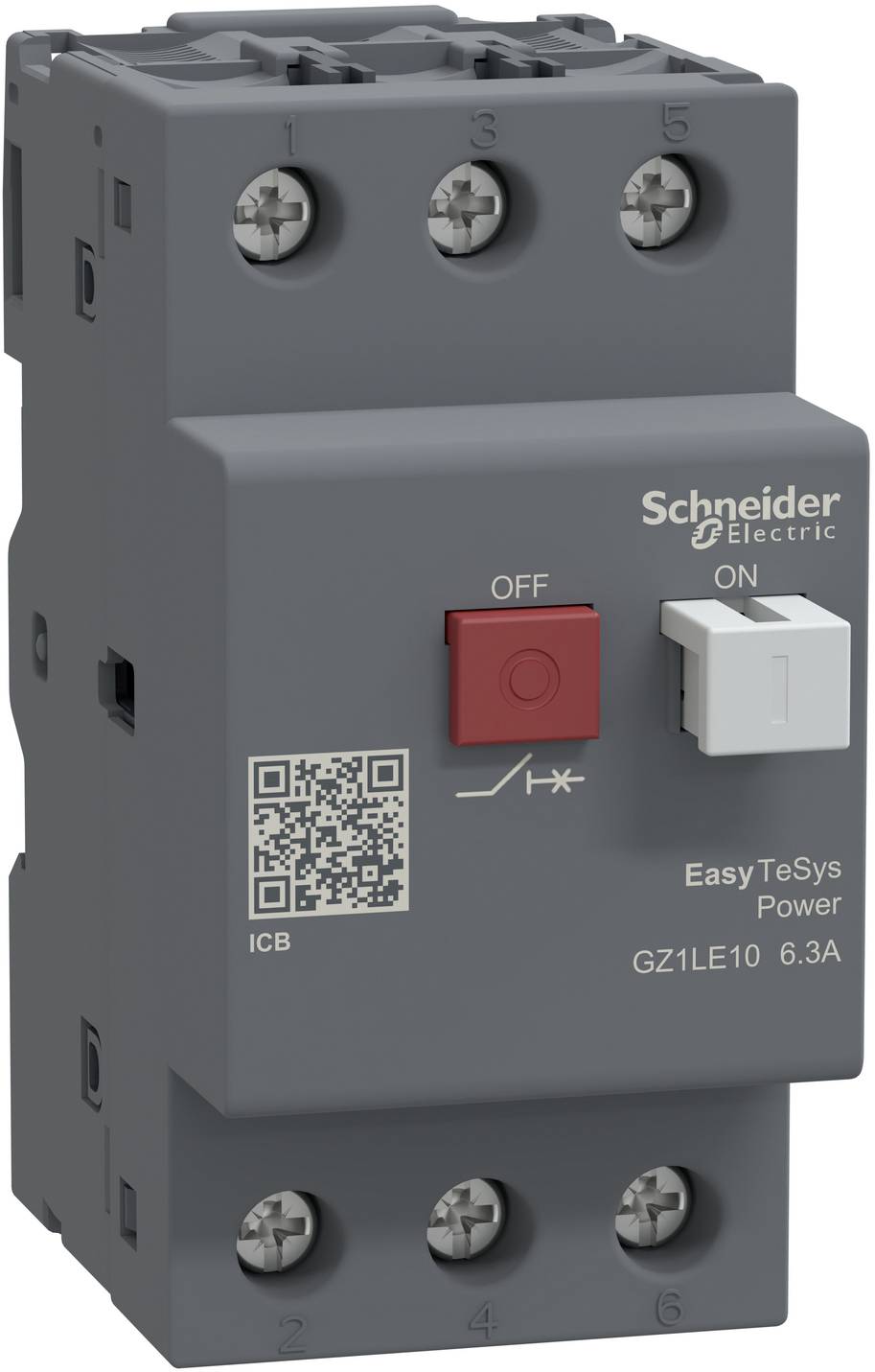

Schneider Electric EasyTeSys Power circuit breaker with OFF and ON switches, QR code, and terminal numbers 1-6.

Schneider Electric EasyTeSys Power circuit breaker with OFF and ON switches, QR code, and terminal numbers 1-6.

Schneider Electric

Product type

Motor surge protector switch

IP rating

IP20

Width

44.5 mm

Height

89 mm

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 92.76 / piece)

€ 92.76

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Actuator type: Pushbutton
Trigger technology: Magnetic
Rated operating power at AC-3, 230 V: 1.1 kW
Rated operating power at AC-3, 400 V: 2.2 kW
Rated operating voltage 690-690 V
Rated continuous current IU 6.3 A
Rated limit short circuit switch-off current ICU at 400 V, AC:100 kA
Setting range of the undelayed short-circuit release: 78-78 A.
Device type: Complete unit in housing
With integrated auxiliary switch: No.
With integrated undervoltage release: No.
With thermal overload protection: No.
Phase failure sensitive: No.

Product type: Motor surge protector switch

: IP20

Width: 44.5 mm

Height: 89 mm

Content: 1 pc(s)

Type: GZ1LE10

Dim: (W x H x D) 44.5 x 89 x 78 mm

Depth: 78 mm

Number of pins: 3

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3754792 Schneider Electric GZ1LE10 GZ1LE10 Motor surge protector switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754792 Schneider Electric GZ1LE10 GZ1LE10 Motor surge protector switch 1 pc(s)

Description

GZ1LE are 3-pole magnetic circuit breakers specially designed to control and protect motors in accordance with IEC 60947-2 and IEC 60947-4-1 standards. The magnetic protection rating is 6.3A with magnetic trigger. It provides standard reliability and durability with an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. They are available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.

This text is machine translated.

Description

GZ1LE are 3-pole magnetic circuit breakers specially designed to control and protect motors in accordance with IEC 60947-2 and IEC 60947-4-1 standards. The magnetic protection rating is 6.3A with magnetic trigger. It provides standard reliability and durability with an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. They are available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.

This text is machine translated.
