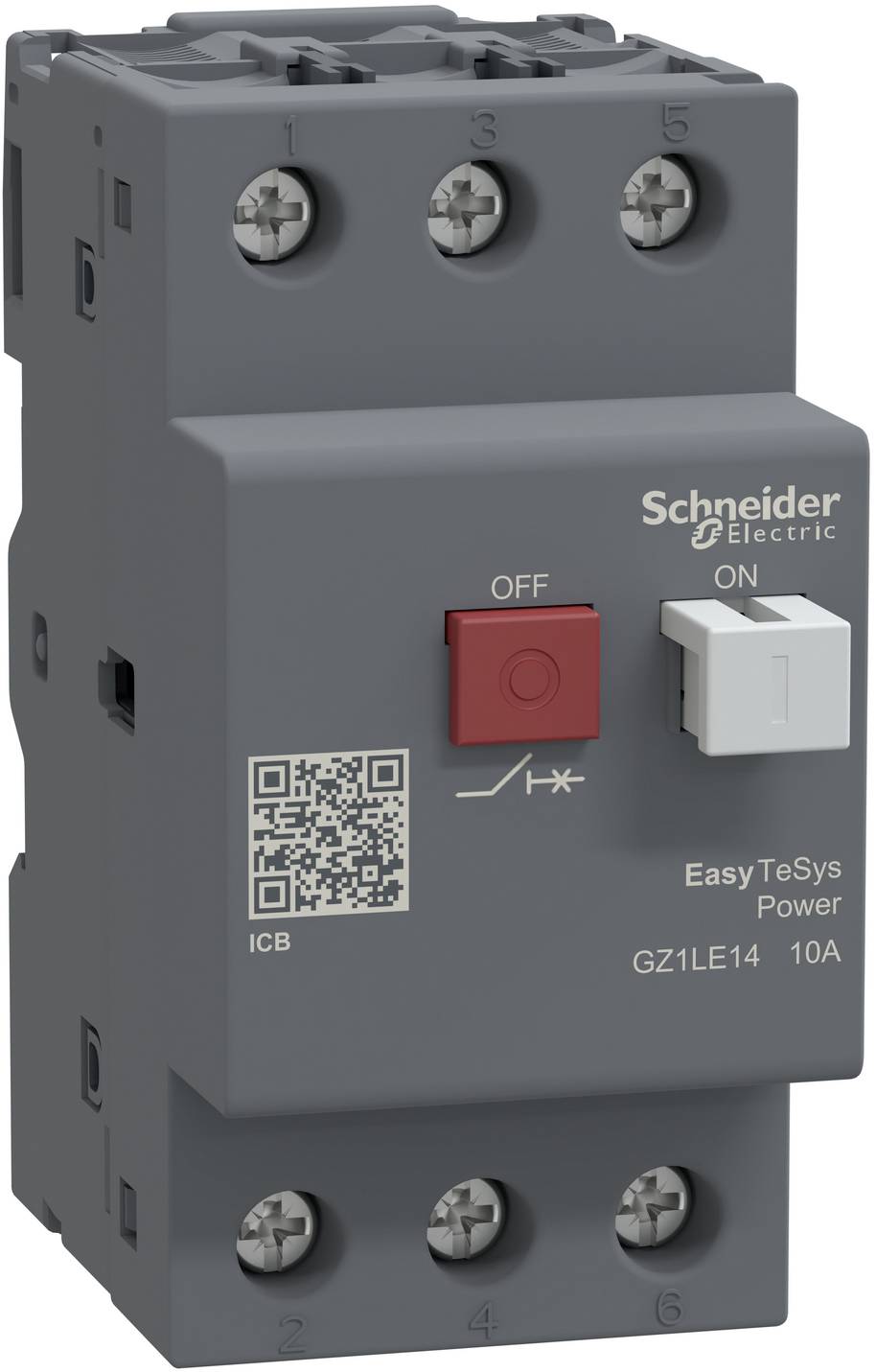

Schneider Electric GZ1LE14 GZ1LE14 Motor surge protector switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
IP rating
IP20
Width
44.5 mm
Height
89 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 81.34 / piece)
€ 81.34
plus VAT.
Technical specifications
- Connection type main circuit: Screw terminals
- Actuator type: Pushbutton
- Trigger technology: Magnetic
- Rated operating power at AC-3, 230 V: 2.2 kW
- Rated operating power at AC-3, 400 V: 4 kW
- Rated operating voltage 690-690 V
- Rated continuous current IU 10 A
- Rated limit short circuit switch-off current ICU at 400 V, AC:100 kA
- Setting range of the undelayed short-circuit release: 138-138 A.
- Device type: Complete unit in housing
- With integrated auxiliary switch: No.
- With integrated undervoltage release: No.
- With thermal overload protection: No.
- Phase failure sensitive: No.
- Product type
Motor surge protector switch
IP20
- Width
44.5 mm
- Height
89 mm
- Content
1 pc(s)
- Type
GZ1LE14
- Dim
(W x H x D) 44.5 x 89 x 78 mm
- Depth
78 mm
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3754793 Schneider Electric GZ1LE14 GZ1LE14 Motor surge protector switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754793 Schneider Electric GZ1LE14 GZ1LE14 Motor surge protector switch 1 pc(s)
Description
GZ1LE are 3-pole magnetic circuit breakers specially designed to control and protect motors in accordance with IEC 60947-2 and IEC 60947-4-1 standards. The magnetic protection rating is 10A with magnetic trigger. It provides standard reliability and durability with an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. They are available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
